Stainless Steel Exhaust Flexible Pipe , Exhaust Bellow for Vehicle
♦ Product Description:
Flexible Stainless Steel Bellows /Flexible Exhaust Pipe can be used in the exhaust system of large vehicles such as trucks, buses, buses, etc., for the high temperature portion of the engine exhaust manifold,is installed in the exhaust pipe between the engine exhaust manifold and the muffler, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of the exhaust muffler system.
| 1. | ID:1"~6" Length:4"~17" or as requirement |
| 2. | To resolve minor deviation because of piping connection and eliminate the pipeline residual stress |
| 3. | .Metal bellows to absorb large axial displacement between straight tube and support frame , and small horizontal displacement |
| 4. | Very.Easy to install, clean and maintenance |
| 5. | More types are available |
| 6. | Outer braid stainless steel,knitted by 12 units |
| 7. | Cap stainless steel or aluminized |
| 8. | Working pressure 0~5 Mpa |
| 9. | Packaging each one with a PE bag , usually 25 pieces in a carton box as usual or as requirement |
♦ Specifications:
| Nominal Inside Diameter I.D. | Overall Length O/L | Nominal Inside Diameter I.D. | Overall Length O/L | Nominal Inside Diameter I.D. | Overall Length O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) | Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... | ||||
| 12”(305mm) | |||||

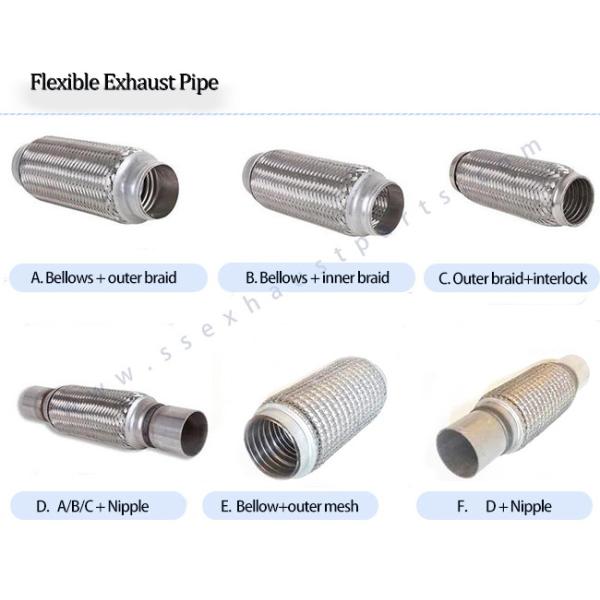

♦Flexible Exhaust PipeTypes:
There're many types for the flexible exhaust pipe , usually there're five models, below, single braid, double braid inner and outer, with interlock, with welded tube, and mesh braided pipe.
♦ Warehouse, Packing and Delivery
♦ FAQ:
1. How can I place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us
with Skype / email / phone, in case of any delays.
2. What kind of auto parts we provide?
We have exhaust muffler, exhaust pipe, corrugated flexible
pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle
joint clamp and other exhaust accessories for your choose.
3. How about the warranty ?
We have 1 year warranty and lifelong maintenance
4. What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one
which is the most convenient or cost effective for you.
