| Categories | Stainless Steel Exhaust Flex Pipe |
|---|---|
| Brand Name: | YP |
| Model Number: | YP13404-YP70200 |
| Place of Origin: | Hebei , China |
| MOQ: | 1pc |
| Price: | USD$ 1.5--8.99 /PC |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 80000PCS/MONTH |
| Delivery Time: | 10-14 DAYS |
| Packaging Details: | carton |
| Item Name: | Stainless Steel Auto Engine Parts Flexible Bellows with Interlock Braided |
| Intlet/Outlet: | 3" (76.2mm) |
| Use for: | Exhaust Pipe System |
| Overal Length: | 4”-12” 102-305mm |
| Advantage: | Factory Manufacturer low cost price |
| Car Make: | Universal |
| Material: | Stainless Steel 304 |
| Finish: | Plain |
| Delivery time: | 10-14 days |
| Sample: | Free |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

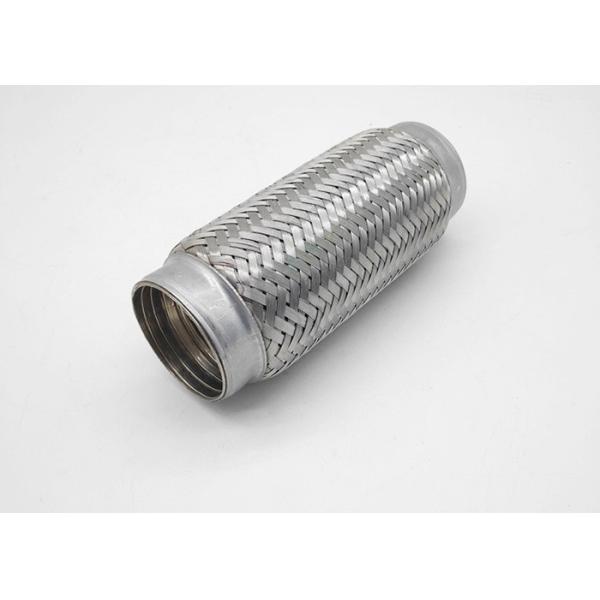

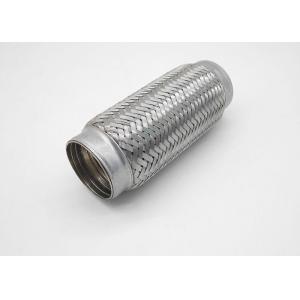

Stainless Steel Auto Engine Parts Flexible Bellows with Interlock Braided ,Flex Exhaust Flexible Pipe
Specifications of the flexible exhaust pipe:
| Nominal Inside Diameter I.D. | Overall Length O/L | Nominal Inside Diameter I.D. | Overall Length O/L | Nominal Inside Diameter I.D. | Overall Length O/L |
| 1-3/4(45mm) | 4”(102mm) | 2-1/2”(63.5) | 4”(102mm) | 43mm | 120mm |
| 6”(152mm) | 6”(152mm) | 165mm | |||
| 8”(203mm) | 8”(203mm) | 180mm | |||
| 9”(230mm) | 9”(230mm) | 50mm | 120mm | ||
| 10”(254mm) | 10”(254mm) | 165mm | |||
| 11”(280mm) | 11”(280mm) | 54.5mm | 120mm | ||
| 12”(305mm) | 12”(305mm) | 150mm | |||
| 2”(51mm) | 4”(102mm) | 3”(76.2mm) | 4”(102mm) | 180mm | |
| 6”(152mm) | 6”(152mm) | 200mm | |||
| 8”(203mm) | 8”(203mm) | 250mm | |||
| 9”(230mm) | 9”(230mm) | 60mm | 160mm | ||
| 10”(254mm) | 10”(254mm) | 200mm | |||
| 11”(280mm) | 11”(280mm) | 240mm | |||
| 12”(305mm) | 12”(305mm) | 65mm | 150mm | ||
| 2-1/4”(57.2mm) | 4”(102mm) | 3-1/2”(89mm) | 6”(152mm) | 200mm | |
| 6”(152mm) | 8”(203mm) | 70mm | 100mm | ||
| 8”(203mm) | 9”(230mm) | 120mm | |||
| 9”(230mm) | 10”(254mm) | 150mm | |||
| 10”(254mm) | 12”(305mm) | 200mm | |||
| 11”(280mm) | Other Sizes are available upon request. ID32, ID36, ID38, ID40,ID46,ID48,ID115,ID125... | ||||
| 12”(305mm) | |||||
Brief Introduction :
The flexible exhaust pipe bellow is a flex. piece of pipe that allows the exhaust system some flexibility. Flex. Pipe are an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex. Pipe protects your exhaust system from breakage and more noise. Without that extra flexibility , the rocking motion would crack the exhaust system and cause a loud leak.

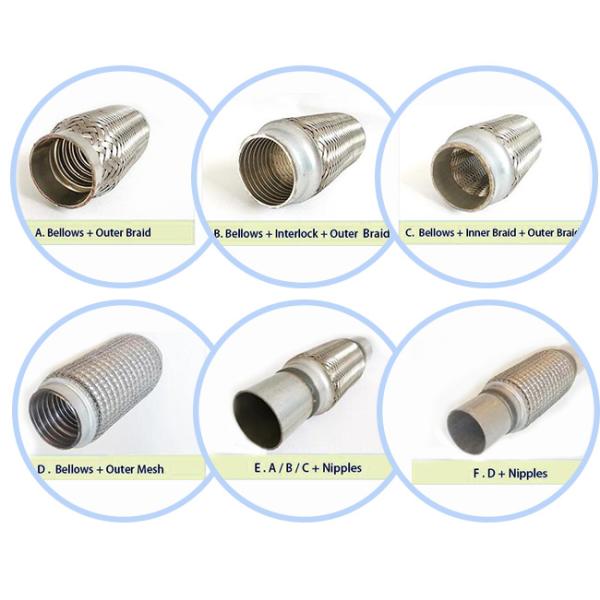

Our Exhaust Flexible Bellows Types:
A : Bellows + Outer Braid
B: Bellows + Interlock + Outer Braid
C: Bellows + Outer Braid + Inner Braid
D: Bellows + Outer Mesh
E: Type A/B/C + Nipples (extension tube)
F: Type D + Nipples
Packing and Delivery of Exhaust Flexible Pipe:

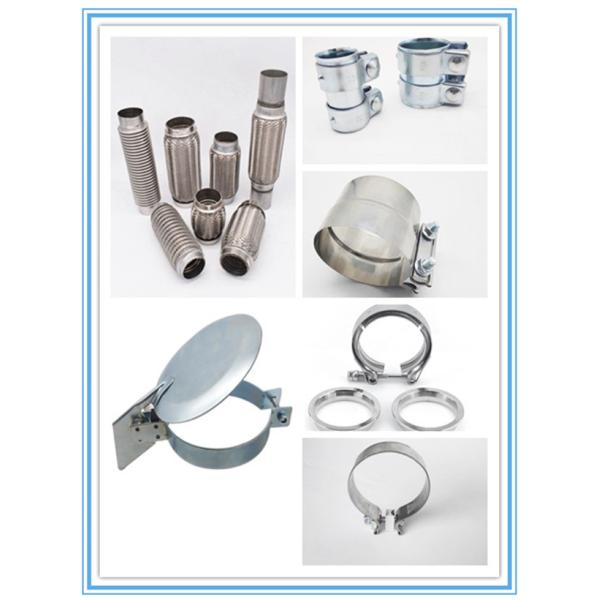

Other Components:
