| Categories | Stainless Steel Exhaust Flex Pipe |
|---|---|
| Brand Name: | YP |
| Model Number: | YPEXF-200 |
| Certification: | ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | USD 1.8~2.0 PER PIECE |
| Payment Terms: | L/C T/T Western Union |
| Supply Ability: | 100000 pieces per Month |
| Delivery Time: | 5-8 days if stocks available |
| Packaging Details: | plastic bag+ carton + woven bag |
| Product name: | 2" X 8" X 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap |
| Bellow materials: | Stainless steel 304 / 201/ 202 /409 |
| Inside diamter: | 2" / 50.8 mm |
| Structure: | Bellow + Inner braid + Out braid + Nipple |
| Body Length:: | 8" / 203 mm or as request |
| Overall length: | 12" / 304.8 mm |
| Application: | Truck exhaust system |
| Type: | Truck flex pipe |
| Advantage: | Flexible and durable |
| Condition: | 100% new |
| Package: | Plastic bag + carton + woven bag |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

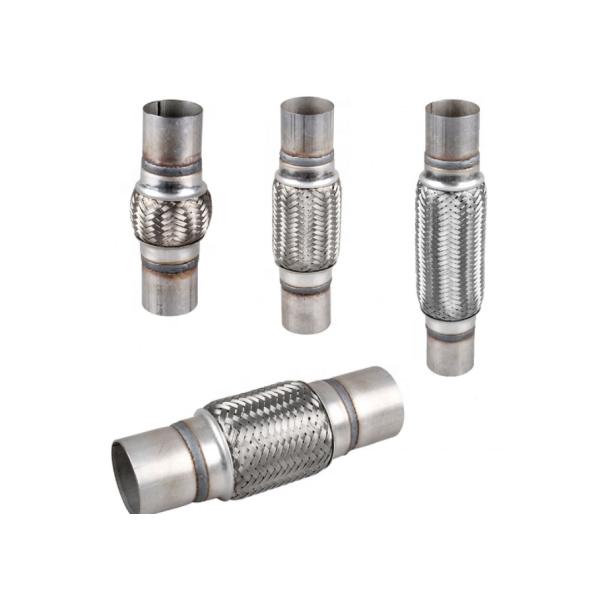

2" x 8" x 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap
Product description:
2" X 8" X 12" Stainless Steel Exhaust Connector Truck Flex Pipe Double Bellows Aluminized Cap
Flex pipe is a flexible piece of pipe that allows the exhaust system some flexibility. It is an essential part of any front wheel drive vehicle and on most all wheel drive vehicles. On front wheel cars, since the motor is mounted transversely, when you accelerate the motor rocks and the flex pipe protects your exhaust system from breakage. Without that extra flex the rocking motion would crack the exhaust system causing a loud leak.
Specification:
Common sizes are as follows, customizable sizes are available
| Diameter (I.D.) | Pipe Length | Overall Length (OAL) | Diameter (I.D.) | Pipe Length | Overall Length (OAL) | Extensions |
| 1-1/2" | 4" | 4" | 1-1/2" | 4" | 8" | 2" |
| 1-1/2" | 6" | 6" | 1-1/2" | 6" | 10" | 2" |
| 1-1/2" | 8" | 8" | 1-1/2" | 8 | 12" | 2" |
| 1-1/2" | 10" | 10" | 1-1/2" | 10" | 14” | 2" |
| 1-3/4" | 4" | 4" | 1-3/4" | 4" | 8" | 2" |
| 1-3/4" | 6" | 6" | 1-3/4" | 6" | 10" | 2" |
| 1-3/4" | 8" | 8" | 1-3/4" | 8" | 12" | 2" |
| 1-3/4" | 10" | 10" | 1-3/4" | 10" | 14" | 2" |
| 1-3/4" | 12" | 12" | 1-3/4" | 12" | 16" | 2" |
| 2" | 4" | 4" | 2" | 4" | 8" | 2" |
| 2" | 6" | 6" | 2" | 6" | 10" | 2" |
| 2" | 8" | 8" | 2" | 8" | 12" | 2" |
| 2" | 10" | 10" | 2" | 10" | 14" | 2" |
| 2" | 12" | 12" | 2" | 12" | 16" | 2" |
| 2-1/4" | 4" | 4" | 2-1/4" | 4" | 8" | 2" |
| 2-1/4" | 6" | 6" | 2-1/4" | 6" | 10" | 2" |
| 2-1/4" | 8" | 8" | 2-1/4" | 8" | 12" | 2" |
| 2-1/4" | 10" | 10" | 2-1/4" | 10" | 14" | 2" |
| 2-1/4" | 12" | 12" | 2-1/4" | 12" | 16" | 2" |
| 2-1/2" | 4" | 4" | 2-1/2" | 4" | 8" | 2" |
| 2-1/2" | 6" | 6" | 2-1/2" | 6" | 10" | 2" |
| 2-1/2" | 8" | 8" | 2-1/2" | 8" | 12" | 2" |
| 2-1/2" | 10" | 10" | 2-1/2" | 10" | 14" | 2" |
| 2-1/2" | 12" | 12" | 2-1/2" | 12" | 16" | 2" |
| 3" | 4" | 4" | 3" | 4" | 8" | 2" |
| 3" | 6" | 6" | 3" | 6" | 10" | 2" |
| 3" | 8" | 8" | 3" | 8" | 12" | 2" |
| 3" | 10" | 10" | 3" | 10" | 14" | 2" |
| 3" | 12" | 12" | 3" | 12" | 16" | 2" |
| 4" | 4" | 4" | 4" | 4" | 8" | 2" |
| 4" | 6" | 6" | 4" | 6" | 10" | 2" |
| 4" | 8" | 8" | 4" | 8" | 12" | 2" |
| 4" | 10" | 10" | 4" | 10" | 14" | 2" |
Appication:
Bellows can be used in the exhaust system of large vehicles such as trucks, buses, freightliner etc., for the high temperature portion of the engine exhaust manifold. The exhaust bellows is installed in the exhaust pipe between the engine exhaust manifold and the mufller, so that the entire exhaust system is flexibly coupled, thereby reducing vibration and noise, facilitating installation and extending the life of exhaust muffler system.
Keyword: exhaust flex pipe, exhaust corrugated bellow pipe
Structures choice:
Packaging and Delivery:
Fast delivery: in 5-8 days
Lead time for new production: No more than 30 days
Shipping terms: EXW FOB CIF
Packing methods: Plastic bag for each product, seaworthy carton and woven bag with pallet or not.
We supplied exhaust flex pipe in hundreds of designs to fit customer's requirement. Please kindly inform us your need. The best offer will be supplied soon.
