| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | HOWO A7 |
| Model Number: | ZZ3257M3247N1 |
| Certification: | ISO CCC |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | $34000-¥46000 unit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 units per month |
| Delivery Time: | 30work days |
| Packaging Details: | No nude |
| Drive wheel: | 6x4 |
| Engine capacity: | > 8L |
| Fuel type: | Diesel |
| Condition: | New |
| Gross vehicle weight: | 31000 |
| Transmission type: | Manual |
| Capacity (load): | 51 - 60t |
| Horsepower: | 351 - 450hp |
| Emission standard: | Euro 2 |
| Transmission: | HW19710 |
| Color: | Customer's Request |
| Engine: | WD615.47 |
| Company Info. |
| Jinan Heavy Truck Import & Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

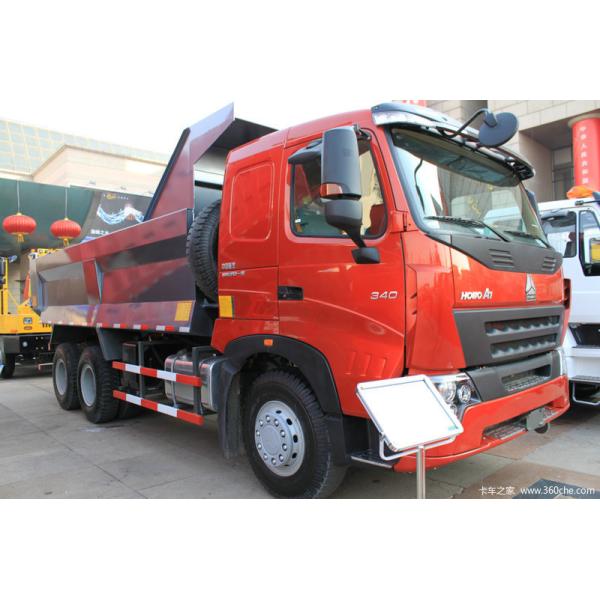

SINOTRUCK HOWO A7 DUMP TRUCK 6x4
Description:
| Truck Model No: | ZZ3257M3247N1 A7E/300/K32/6*4WA |
| Gross weight kg | 25000 |
| curb weight kg | 11950 |
| Rated load quality kg | 12920 |
| Max. Speed (Km/h) | 78 |
| Cab | A7-W low floor board long cab with one sleeper, with air conditioner |
Engine | Make : SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model : WD615.87, EURII emission , new design on intake & exhaust system, power and fuel economy get improved 6-cylinder in-line with water cooling, turbo-charging and intercooling Max. output : 336Hp (221 Kw ) at 2200 rpm Displacement : 9.726L |
Transmission | HW15710 ,10gear transmission SINOTRUK 10 forward & 2 Ratio:14.28 Torque: 1900Nm |
| clutch | SINOTRUK Φ430 C size clutch |
Driving Axle | AC16 Strengthen widen whole steel-cast 16T off road axle with double decelerator and double tires Ratio:4.77 |
| Front axle | HF9 steel-cast 9T font axle,stick brake |
Braking system | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option:ABS |
| Electrical System | Operating voltage:24V, negative grounded |
| Steering | ZF8098 German Hydraulic steering with powder assistance |
| Wheel & Tyres | 12.00-20 No.of Tyres:10+1 |
| No. of Spring | 10/12 |
| Front/ Rear axles loading capacity (kg) | 7000 /18000 |
| No. of axles | 3 |
| Wheel base mm | 3225+1350 |
| Front/ Rear wheel track mm | 2041/1830 |
| Front/Rear hanging mm | 1540/1550 |
| Approach/ Departure angle (°) | 20 /29 |
| Dimensions(L×W×H) (mm) | 7665*2496*3490 |
| Van dimension mm | 4800*2300*1500 F style lifting cylinder Thickness: floor 8mm side 6mm |
