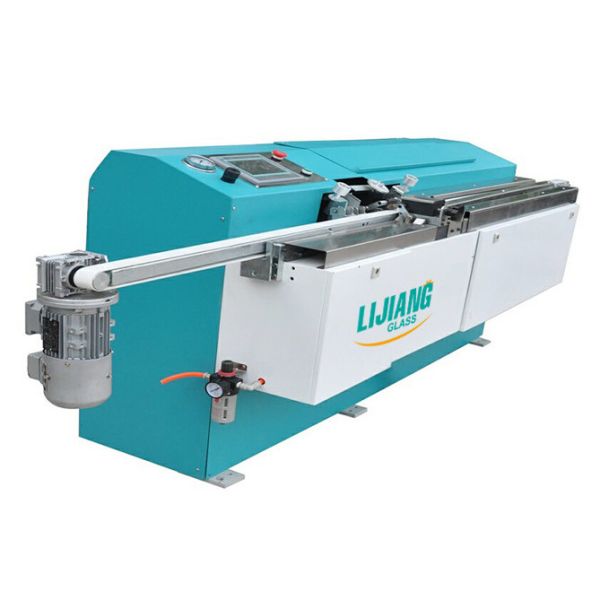

Butyl Extruder Machine Used For Coating Aluminum Spacer for Sealed insulating glass

Overview of butyl extruder machine

Butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Main feature of butyl coating machine

1. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

2. Glue application speed can reach 47m / min

3. Unique design structure, with automatic exhaust function, to ensure continuous glue application

4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

5. The main accessories are German brands. PLC program control, stable performance

6. It is convenient and practical to use movable vertical and horizontal sealant

7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

8. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m

9. Touch screen operation, simple and practical

10. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery

11. The rubber cylinder adopts pull-up structure, which is convenient for operation

12. Automatically adjust the glue output according to the speed change

Tech parameters

Optional functions:

200L glue cylinder is optional

Equipment details

Germany Siemens parts

Adopt Siemens brand, stable performance.

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Alarm system

Automatically alarm system, reminding adding butyl.

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Detail picture
