125ms Response Delay PBT FRP 200Khz Ultrasonic Level Sensor

High Accuracy Ultrasonic Level Sensor Measurement Range 100…1000mm With PBT OR FRP Housing
Highlights

TECH-IN
Temperature compensate
LED for status indication
Battery powered
Minmal dead bands
Applications
Liquid and Solid Level Measurement
Tanks,Totes,Processing
Bulk Material Management
Factory automation
Position Detection
Avoid collision
Ultrasonic sensor　UM2000-SF2-TTL
Technical data　

General Specifications
Sensing distance100…1000mm(50…800mm)
Adjustment range100…1000mm(50…800mm)
Unusable area0…280mm
Standard target plate100mm×100mm
Transducer frequency About200 kHz
Response delay About125ms
Indicators/Operating means　
LED yellowsolid: NO LED
flash:
LED redflashing:
Electrical specifications

Operating voltage UB10…30VDC ripple10%ss
No-load supply current≤30mA
Output　
Output type1 output UART TTL
Resolution　
Deviation of the characteristic
curve		±1% of full-scale value
Repeat accuracy±0.1% of full-scale value
Load impedance>1k Ohm
Maximum switching currentmA
Temperature influence±1.5% of full-scale value
Ambient conditions　
Ambient temperature-25…70℃
Storage temperature-40…85℃

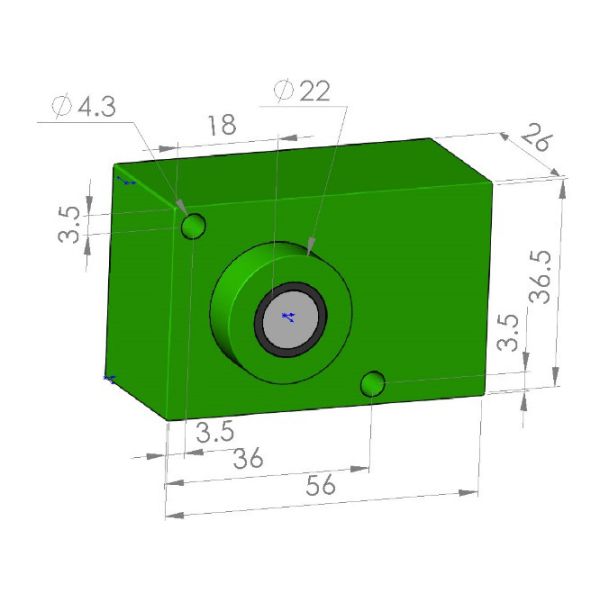

Mechanical specifications

Protection gradeIP68
ConnectionPVC cable,4-PIN
Material　
HousingPBT OR FRP
TransducerEpoxy resin/hollow; Polyurethane foam1 BN=BROWN
2 GN=GREEN
3 BU=BLUE
4 BK=BLACK
Weight70g
Compliance with standards and Directives
Standard conformityEN 60947-5-2:2007
