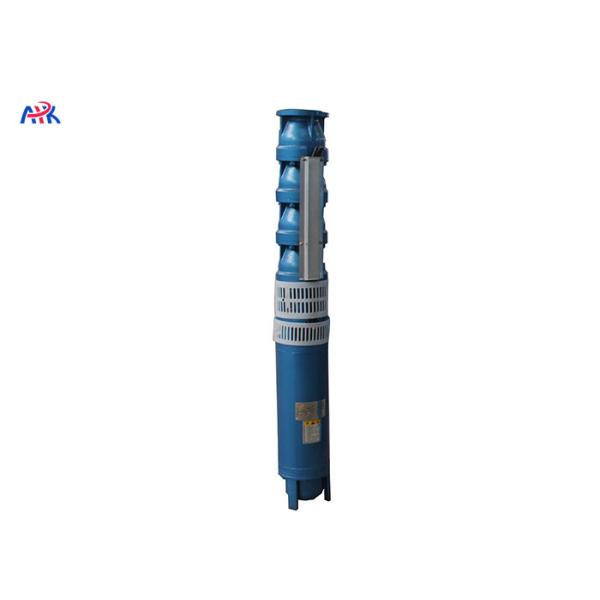

Spray Irrigation 15hp 20hp Deep Well Submersible Pump

Submersible water pump for deep well is widely used for deep well, farmland irrigation, spray irrigation, urban and rural industry enterprise and drainage.

Please confirm more details
we will sent you price list.

1. what the water pumps head and water capacity?
2. Any request about the borehole diameter
3. How about voltage and frequency 380V or 440V,50HZ or 60HZ
4.What′s the temperature of water?
5. What the material, cast iron or stainless steel?

Working Conditions

(1) Three-phase AC power supply of rated frequency at 50HZ and rated voltage at 380±5%V.(user voltage at 660V shall be otherwise specified)
(2) Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meters below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well.
(3) Generally, water temperature shall not be higher than 30℃.
(4) Water quality requirements :
① Sand content in water not greater than 0.01%( weight ration)
② PH value between 6.5~8.5
③ chlorine ion content not greater than 400mg/l

Submersible water pump for deep well has perfect design and resonable structure which has low noise and long lifetime, small volum, no water pollution.

15hp 20hp water submersible pump parameters:

Diameter	Model	Power		Flow range	Head range
Inch(")	QJ type	kw	hp	m3/h	m
7"	175Q10-165/12	11	15	9-11	158-172
7"	175QJ10-180/13	11	15	9-11	173-187
7"	175QJ20-104/8	11	15	18-22	89-120
7"	175QJ25-91/7	11	15	23-27	75-105
7"	175QJ32-72/6	11	15	29-35	60-80
7"	175QJ40-60/5	11	15	37-43	50-70
8"	200QJ25-84/6	11	15	23-27	67-100
8"	200QJ25-98/7	11	15	23-27	84-112
10"	250QJ63-40/2	11	15	58-68	34-46

7"	175QJ10-240/17	15	20	9-11	230-250
7"	175QJ10-255/18	15	20	9-11	245-265
7"	175QJ20-130/10	15	20	18-22	110-150
7"	175QJ25-117/9	15	20	23-27	100-135
7"	175QJ32-96/8	15	20	29-35	82-110
7"	175QJ40-84/7	15	20	37-43	71-96
7"	175QJ50-72/6	15	20	46-54	60-82
8"	200QJ20-135/10	15	20	18-22	115-156
8"	200QJ20-148/11	15	20	18-22	126-170
8"	200QJ25-126/9	15	20	23-27	100-145
8"	200QJ32-91/7	15	20	29-35	73-108
8"	200QJ40-78/6	15	20	37-43	67-93
8"	200QJ50-90/6	15	20	46-54	48-72
8"	200QJ63-56/4	15	20	58-68	60-82
8"	200QJ80-44/4	15	20	74-86	37-50
8"	200QJ100-30/2	15	20	80-120	26-32
10"	250QJ50-60/3	15	20	46-54	51-69
10"	250QJ80-40/2	15	20	74-86	34-46
10"	250QJ100-36/2	15	20	80-120	32-42

Product Tags:


*From:	Your email address is incorrect!
*To:	Zhengzhou Shenlong Pump Industry CO.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Submersible Water Pumps
Brand Name:	APK
Model Number:	water submersible pump
Certification:	CE; ISO9001; Five stars after-sale service
Place of Origin:	Henan, China
MOQ:	1 piece
Price:	please kindly contact
Payment Terms:	T/T , Western Union , L/C , D/A , D/P , MoneyGram
Supply Ability:	10000 Unit/Units per Month
Delivery Time:	7-15 working days after payment confirmed
Packaging Details:	submersible water pump with Shock absorption,moisture-proof package, standard export wooden case
Power:	15hp 20hp water submersible pump
Capacity:	9-120m3/h
Head:	26-265m
Frequency:	3 Phase 50hz/60hz
Voltage:	380v/440v/460v/660v or as per request
Material:	cast iron/SS304/SS316/SS316L/Duplex stainless/SS904L
Motor:	AC motor
Warranty:	24 months
