| Categories | Aluminium Alloy Sheet |
|---|---|
| Brand Name: | Dongchong |
| Model Number: | 1060 |
| Certification: | ISO9001 |
| Place of Origin: | Chongqing,Dongchong |
| MOQ: | 500-5000KG for different product |
| Price: | negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000tons per month |
| Delivery Time: | 5-20 Days |
| Packaging Details: | Wooden pallet , Wooden Box |
| Alloy: | 1060 |
| Temper: | H22,O,H12,H14,H16,H18 ,H24 |
| Color: | Gold, silver, rose gold, champagne or customized |
| Usage: | Refrigerator |
| Sample: | free |
| Package: | wooden box/pallets |

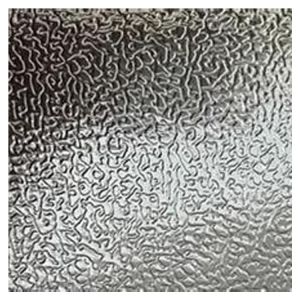

1060 0.3~1.5 mm Orange Peel Embossed Aluminum Alloy Sheet for Refrigerator Inner Panel
Product Description
Orange peel aluminum alloy pattern plates are divided into: classic orange peel pattern aluminum plates, and variant orange peel pattern aluminum plates (also known as bug patterns). Its surface presents a pattern similar to orange peel, so it can also be called orange peel pattern aluminum plate. It is a series of patterns commonly used in refrigerators, air conditioners and packaging.
According to the different patterned aluminum alloys, it can be divided into:
1. Ordinary aluminum alloy pattern plate: aluminum alloy pattern plate processed with 1060 aluminum plate as the base, which can adapt to the normal environment and is low in price. Usually cold storage, floor, and outer packaging use this patterned aluminum sheet.
2. Aluminum alloy pattern plate: It is processed with 3003 as the main raw material. This kind of aluminum plate is also called anti-rust aluminum plate. The strength is slightly higher than that of ordinary aluminum alloy pattern plate. It has certain anti-rust performance, but hardness and corrosion resistance. It cannot reach the 5000 series of patterned plates, so the product is used in non-strict rust prevention, such as truck models and cold storage floors.
3. Aluminum-magnesium alloy pattern plate: It is processed from 5000 series aluminum plates such as 5052 or 5083 as raw materials, and has good corrosion resistance, hardness and rust resistance. Usually used in special places, such as ships and cabin lights in humid environments. This kind of aluminum plate has high hardness and certain load-bearing capacity.
Chemical Composition
| ALLOY | CHEMICAL COMPOSITION (%) | |||||||||||||
| Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Other | Al | |||
| 1035 | 0.35 | 0.6 | 0.1 | 0.05 | 0.05 | __ | __ | 0.1 | 0.03 | __ | 0.03 | __ | 99.35 | |
| 1100 | 0.95 | 0.05-0.2 | 0.05 | __ | __ | __ | 0.1 | __ | __ | 0.05 | 0.15 | 99 | ||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | __ | __ | 0.05 | 0.03 | __ | 0.03 | __ | 99.5 | |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | __ | __ | 0.05 | 0.03 | __ | 0.03 | __ | 99.6 | |
| 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | __ | __ | 0.04 | 0.03 | __ | 0.03 | __ | 99.7 | |
| 1080 | 0.15 | 0.15 | 0.03 | 0.02 | 0.02 | __ | __ | 0.03 | 0.03 | __ | 0.02 | __ | 99.8 | |
| 1045 | 0.3 | 0.45 | 0.1 | 0.05 | 0.05 | __ | __ | 0.05 | 0.03 | __ | 0.03 | __ | 99.45 | |
| 1145 | 0.15 | 0.3-0.5 | 0.02 | 0.05 | 0.05 | __ | __ | 0.1 | 0.03 | __ | 0.03 | __ | 99.35 | |
| 1200 | 1 | 0.05 | 0.05 | __ | __ | __ | 0.1 | 0.05 | __ | 0.05 | 0.15 | 99 | ||
| 1235 | 0.65 | 0.05 | 0.05 | 0.05 | __ | 0.1 | 0.06 | __ | 0.03 | __ | 99.35 | |||
| 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | rest | |||
| 2A12 | 0.5 | 0.5 | 3.8～4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.3 | 0.15 | __ | 0.05 | 0.15 | rest | ||
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | rest | |||
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.05 | 0.15 | rest | |||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | 0.05 | 0.15 | rest | ||||||
| 3004 | 0.3 | 0.7 | 0.25 | 1.0-1.5 | 0.8-1.3 | __ | __ | 0.25 | __ | __ | 0.05 | 0.15 | rest | |
| 3104 | 0.6 | 0.8 | 0.05-0.25 | 0.8-1.4 | 0.8-1.3 | __ | __ | 0.25 | 0.1 | __ | 0.05 | 0.15 | rest | |
| 3105 | 0.6 | 0.7 | 0.3 | 0.3-0.8 | 0.2-0.8 | 0.2 | __ | 0.4 | 0.1 | __ | 0.05 | 0.15 | rest | |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | __ | 0.1 | __ | __ | 0.05 | 0.15 | rest | |
| 5A06 | ≤0.40 | 0.000～0.400 | ≤0.10 | 0.50～0.8 | 5.8～6.8 | __ | 0.0001～0.005 | ≤0.20 | 0.02～0.10 | __ | 0.05 | 0.1 | rest | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.1 | __ | 0.25 | __ | __ | 0.05 | 0.15 | rest | |
| 5050 | 0.4 | 0.7 | 0.2 | 0.1 | 1.1-1.8 | 0.1 | __ | 0.25 | __ | __ | 0.05 | 0.15 | rest | |
| 5154 | 0.25 | 0.4 | 0.1 | 0.1 | 3.1-3.9 | 0.15-0.35 | 0.25 | 0.2 | 0.05 | 0.15 | rest | |||
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | __ | 0.2 | 0.15 | __ | 0.05 | 0.15 | rest | |
| 5454 | 0.25 | 0.4 | 0.1 | 0.5-1.0 | 2.4-3.0 | 0.05-0.2 | 0.25 | 0.2 | 0.05 | 0.15 | rest | |||
| 5182 | 0.2 | 0.35 | 0.15 | 0.2-0.5 | 4.0-5.0 | 0.1 | 0.25 | 0.1 | 0.05 | 0.15 | rest | |||
| 5083 | 0.4 | 0.4 | 0.1 | 0.4-1.0 | 4.0-4.9 | 0.05-0.25 | _ | 0.25 | 0.15 | __ | 0.05 | 0.15 | rest | |
| 5086 | 0.4 | 0.5 | 0.1 | 0.2-0.7 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | rest | |||
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | 0.05 | 0.15 | 0.1 | 0.05 | 0.15 | rest | |||
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | __ | 0.25 | 0.15 | __ | 0.05 | 0.15 | rest | |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | __ | 0.1 | 0.1 | __ | 0.05 | 0.15 | rest | |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | __ | 5.1-6.1 | 0.2 | __ | 0.05 | 0.15 | rest | |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.15-0.4 | 0.2 | 0.05 | 0.05 | __ | 0.01 | 0.08 | __ | 0.05 | 0.15 | rest | |
| 8079 | 0.05~0.3 | 0.7~1.3 | 0.05 | __ | __ | __ | __ | 0.1 | __ | 0.05 | 0.15 | rest | ||
Mechanical properties:
| Alloy | Temper | Thickness(mm) | Tensile strength(Mpa) | Yeild strength(Mpa) | Elongation(%) |
| Min | |||||
| 1060 | 0 | >0. 20 — 0, 30 | 60—100 | 15 | 15 |
| >0.30—0,50 | 18 | ||||
| >0. 50-1. 50 | 23 | ||||
| >1. 5-6.00 | 25 | ||||
| >6. 00 — 80, 00 | 25 | ||||
| H12 H22 | >0.50 —1,50 | 80 — 120 | 60 | 6 | |
| >1. 50 — 6,00 | 12 | ||||
| H14 H24 | >0. 30 — 0, 50 | 95-135 | 70 | 2 | |
| >0.50 — 0. 80 | 2 | ||||
| >0. 80—1. 50 | 4 | ||||
| >1.50 — 3.00 | 6 | ||||
| >3.00 — 6. 00 | 10 | ||||
| H16 H26 | >0.20-0. 30 | 110 — 155 | 75 | 1 | |
| >0. 30 — 0.50 | 2 | ||||
| >0. 50 — 0. 80 | 2 | ||||
| >0.80 〜1.50 | 3 | ||||
| >1. 50 — 4. 00 | 5 | ||||
| H18 | >0. 20 — 0.30 | 125 | 85 | 1 | |
| >0. 30 — 0, 50 | 2 | ||||
| >0.50 — 1.50 | 3 | ||||
| >1,50-3.00 | 4 | ||||
| H112 | >4. 50〜5. D0 | 75 | 10 | ||
| >6. 00 — 12. 50 | 75 | 10 | |||
| >12*50 — 40.00 | 70 | —— | |||
| >40.00-80.00 : | 60 | ||||
Product Photo
Company Introduction
Chongqing Dongchong Aluminum Co,.Ltd.established in 2002 and have been in aluminium indurstry for more than 17 years.After more than ten years of rapid development, it now has more than 100 employees, more than 15,000 square meters of standard factory buildings and more than 2,000 square meters of office area.
The evelopment concept of corporate Innovation and Practicality Beyond Self-Pursuing Excellence. Dongchong's Mission is While creating value for the society, we should take effective measures to increase employees'income, make them have more time and wealth to control, and constantly improve employees' happiness index. Our business philosophy is Honesty, Cooperation and Win-win .Service Concept is "It is our duty to satisfy all our customers.It's our task for all our customers to praise Dongchong".
We mainly provide Aluminum Alloy Sheet ,Aluminum Circle Sheet ,Diamond Aluminum Sheet ,Aluminum Flat Strips ,Aluminum Alloy Plate,Aluminum Foil ,Aluminum Checker Plate,Aluminum Coil Strip ,Aluminum Hollow Pipe ,Aluminum Extrusion Profiles ,Custom Aluminum Panels ,Aluminum Solid Bar.
| Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd | |||||||
| 1650mm Slitting machine | Uncoil(MM) | Finished size(MM) | Slitting Width(MM) | ||||
| ID | OD | Width | Thickness | ID | OD | Above 0.5mm≥ 20mm | |
| Φ 400 | ≤ 1800 | ≤ 1600 | 0.5-4.5 | Φ 400 | ≤ 1700(normal) | ||
| Φ 500 | Φ500(normal) | ||||||
| Φ 600 | |||||||
| Aluminum foil Slitting machine | Uncoil(mm) | Finished size(MM) | |||||
| ID | OD | Width | Thickness | ID | OD | Width | |
|
