| Categories | 5 Gallon Bottle Filling Machine |
|---|---|
| Brand Name: | FILL PACK |
| Model Number: | QGF-450 |
| Certification: | CE, ISO9001 |
| Place of Origin: | ZhangJiaGang JiangSu China |
| MOQ: | 1 set |
| Price: | USD $6000-$8000/set |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
| bottle Volume: | 18.9 L bottle |
| Capacity: | 450bottles per hour |
| Warranty: | 1 year |
| Product name: | automatic 5 gallon water filling machine |
| Dimension(L*W*H): | 3600*2000*1800mm |
| Filling material: | drinking water |
| Condition: | New |
| Filling heads: | 3 |
| Company Info. |
| Zhangjiagang City FILL-PACK Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

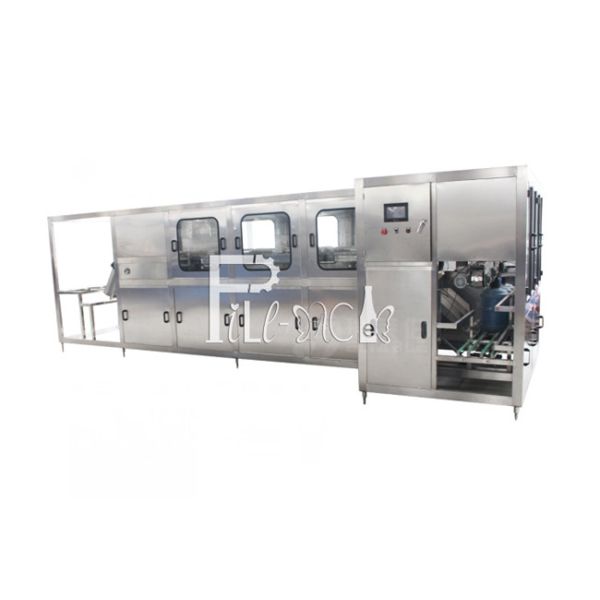

Description of 450BPH Gallon Water bottling machine for 10 to 20 liter Bottle
The 450BPH Gallon Water bottling machine specially produces 450 pcs of 5 gallon barrels drinking water.It integrates bottle washer, filler and sealer into one unit.
In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this machine can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.
It is a new kind of barreled water auto-producing machine, which integrates mechanism, electricity and pneumatic technologies together.
Except for the 450BPH Gallon Water bottling machine, We aslo have the following types:100 type, 200type, 300 type ,600 type, 900 type, 1200 type etc.
| Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-9000 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 12 |
| Volume(gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
| Barrel size(mm) | 270-490 | 270-490 | 270-490 | 270-490 | 270-490 | 270-490 |
| Capacity(b/h) | 60-100 | 250-300 | 400-450 | 600-800 | 800-900 | 1000-1200 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m³/m) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Moto power (kw) | 1.38 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated Voltage(V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight(kg) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Our Services
1.One year warranty for the whole system.
2.Free equipment installation and debugging.
3.After one year, we can help you to maintain the machine and the
accessories are provided only one the cost price.
4.We can provide internship service and help you train the operator
and mechanic.
5.Free beverage production technology and process configuration.
6.We can help you to design the product line, workshop and provide
turn-key project.
