| Brand Name: | HOOHA |
| Model Number: | HH52161 |
| Certification: | CE/ISO |
| Place of Origin: | Guangdong |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 15set/1 month |
| Delivery Time: | 25-35Working Days |
| Packaging Details: | Wood, plastic as customer requiry |
| Color: | White |
| Adopt Standard 1: | IEC 60754-1~2-1994 |
| Warranty: | 12 Month |
| Delivery Dates: | 30 Working Days |
| Payment: | TT 100% |
| Package: | Wood Package |
| Installation Size: | 2300 Mm (W) × 600 Mm (D) |
| Standard 2: | GB/T 17650.1~2-1998 |

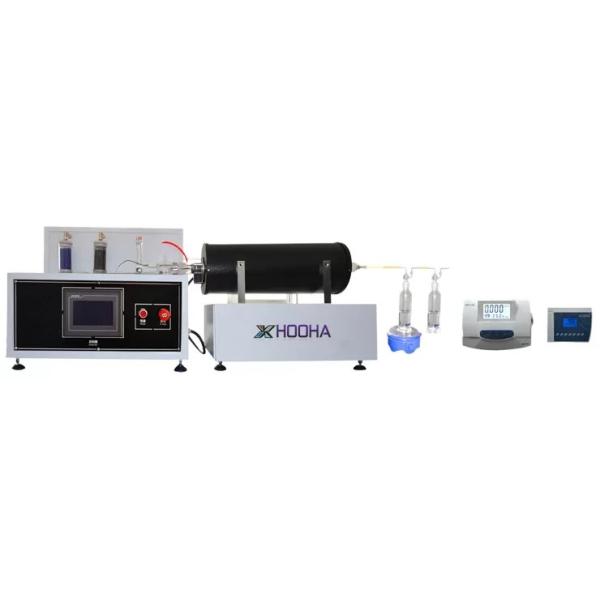

HH52161 Halogen, PH & Conductivity Tester
Product description:
Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃)
Standards:
• IEC 60754-1~2-1994
• GB/T 17650.1~2-1998
Technical parameters:
• Activated carbon (air filtering): filter
for filtering the supplied air
• Silica gel (air drying): a device for
drying the supplied air
• Flowmeter: 0.1~1L/min, a device to control the flow of the air source
• Thermocouple: K type of high temperature resistant stainless thermocouple,
range: 0 ~ 1300℃
• Quartz tube: φ40×800
• Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water
• PH meter: a device used for measuring the pH acidity (ray magnetic)
• Conductivity meter: a device for measuring conductivity of combustion gas
(ray magnetic)
• 7 "color touch screen and PLC and PID automatic calculation of the module
control heating furnace temperature
• Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW
• Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup,
quantity: 1
Specifications:
• Installation size: 2300 mm (W) × 600 mm (D)
• Power supply: AC 220V, 50/60Hz, 21A
• The reagent and air supply are prepared by users
