Mechanical ASTM C37800 Lead Brass Seamless Tubes

Mechanical ASTM C37800 Lead Brass Seamless Tubes

Mechanical ASTM C37800 Lead Brass Seamless Tubes
Mechanical ASTM C37800 Lead Brass Seamless Tubes
Categories Seamless Copper Tube
Brand Name: FRANK STEEL
Model Number: ASTM C37800
Certification: DNV / LR / BV/ SGS
Place of Origin: P.R.CHINA
MOQ: 1 Tons or negotiation
Price: Negotiation
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per 30 days
Delivery Time: about 30 work days
Packaging Details: plywooden boxes for exporting
Pb: (Pb)0.8-1.9
Softening temperature: 900～1050℃
Grade: ASTM C37800
Length: Negotiation ≤12M
3rd Party: Supported BV SGS
Package: Plywood wooden box for export
Contact Now
Company Info.
SUZHOU FRANK STEEL CO.,LTD.
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mechanical ASTM C37800 Lead Brass Seamless Tubes

ASTM C37800 Lead Brass Seamless Tubes For Mechanical Manufacturing Industry

1. Description

ASTM C37800 lead brass has high strength and good hot working performance. It is widely used in mechanical manufacturing industry, cutting various parts and standard parts.

C37800 lead brass beryllium copper alloy is a kind of high brass alloy, which can be divided into wrought beryllium brass alloy and cast beryllium brass alloy according to the different processing forms of its obtained shape; according to the beryllium content and its characteristics, it can be divided into high strength beryllium brass alloy and high conductivity beryllium brass alloy.

2. Chemical composition

Zn:Remain
(Pb)0.8~1.9
(Al)≤0.2,
(Fe)≤0.5,
(Sb)≤0.005,
(P)≤0.02,
(Bi)≤0.003,
(Cu)57.0～60.0,
Impurity%≤0.75


3. Mechanical properties

TENSILE STRENGTH(N/mm2) ≥451
10(%)ELONGATION ≥8


4. Standard comparison

CategoryChinaUSUKGermanyJapan
GBASTMCDABSDINDigital systemJIS
Leaded BrassHPb59-1C37800　Cz122CuZn39Pb22.038C3710



5. OD table and tolerance

T mm
OD mm		0.15--0.20.2--0.30.3--0.50.5--0.80.8--1.21.2--1.81.8--2.52.5--33--4
2.5--5√√√　　　　　　
6--10√√√√√　　　　
11--15　√√√√√　　　
16--20　　√√√√　　　
20--25　　√√√√√　　
25--35　　√√√√√　　
35--45　　√√√√√√　
45--55　　　√√√√√√

outside diameterAverage tolerance
General (±mm)high(±mm)
3--150.090.05
15--250.10.06
25--500.150.08


6. Wall Thicknese and tolerance

wall thicknessAverage tolerance
General(mm)high(mm)
0.2--0.5±0.02--0.05±0.01--0.03
0.5--0.8±0.05--0.08±0.02--0.05
0.8--1.5±0.08--0.15±0.05--0.12
1.5--2.5±0.15--0.25±0.12--0.2
2.5--4±0.25--4±0.2--0.3

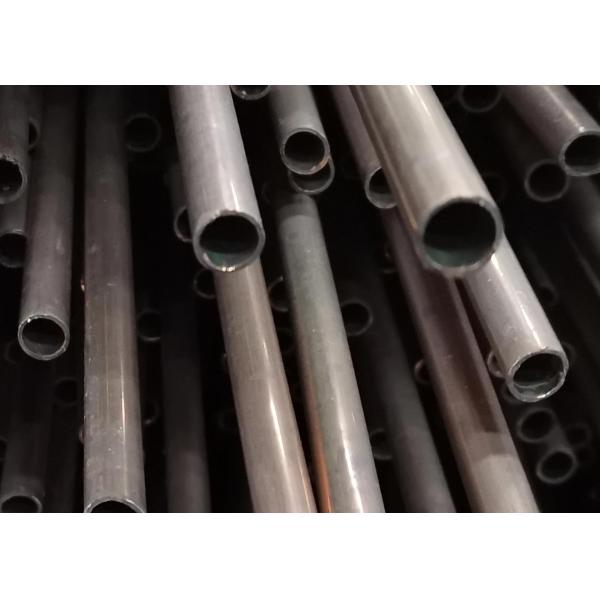

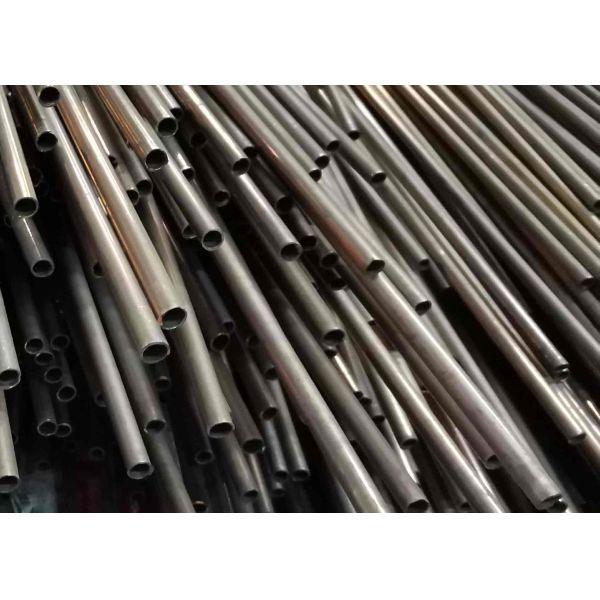

7. Details picture



















Product Tags:

Lead Brass Seamless Tubes



C37800 seamless copper pipe
