| Categories | Marine LED Flood Lights |
|---|---|
| Brand Name: | LCD-CESP brand |
| Model Number: | LCD-FA-305-LNXXX |
| Certification: | CE RoHs SAA ETL UL TUV |
| Place of Origin: | SHENZHEN, CHINA |
| MOQ: | 1pcs |
| Price: | usd |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 piece/ month |
| Delivery Time: | 5-12 work day |
| Packaging Details: | Carton box |
| Light source: | LED,Lumi Leds 5050 220Lm/w |
| Beam angle(°): | 7, 15, 30, 60,90,120,TYPE II, TYPE III, TYPE V |
| Color temperature(cct): | warm white(2700-3500k)Pure white(4000-4500k)Cool white(6000-6500k) |
| Product Name: | led boat floodlight 300w |
| Shape: | Square size |
| Type: | Flood |
| Company Info. |
| LCD-CESP LIGHTING,CO., LIMITED |
| View Contact Details |
| Product List |
Asymmetric 40 Degree Square Underwater Led Boat Lights
led boat flood lights 300 watt asymmetric 40 degree AC90-305V 49500lm IP67 IK09
Performance
• Rated luminous flux range: 11,600 to 53,475 lm
• Rated luminaire efficacy: Up to 155lm/W
• Rated median useful life and the associated rated LM factor
L80B50: > 110.000 hours
• Rated abrupt failure value: 10.79%
• Photometric code: 840/449, 765/449
• Lumen maintenance code: 9
• Rated ambient temperature (tq) related to performance for
a luminaire: 25°C
• Rated median useful life and the associated rated LM factor:
L80B10 > 105.000 hours
*Definitions and tolerances according to IEC62722-2-1:2014
Item List
| Luminaire | Number of LEDs | Current (A) | Luminaire output flux (lm) 3000K | Luminaire output flux (lm)4000K | Luminaire output flux (lm)6500K | Power consumption (W) | Luminaire efficacy (lm/W) |
| FA-085/105/155 | 36/48 | 2.05 | 21750 | 22500 | 23250 | 80W /100W/150W | up to 155lm/w |
| FA-205 | 72 | 3.11 | 29000 | 30000 | 31000 | 200W | up to 155lm/w |
| FA-255 | 96 | 2.34 | 36250 | 37500 | 38750 | 250W | up to 155lm/w |
| FA-305/355 | 144 | 6.0 | 49300 | 51000 | 52700 | 300W/350W | up to 155lm/w |
ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN
61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Product DIMENSIONS
| Item Name | AxBxC (MM) |
| FA-085/105/153 IP67 flood light | 389.2x296.7x57 |
| FA-205 IP67 flood light | 436.6x345.7x57 |
| FA-255 IP67 flood light | 436.6x345.7x57 |
| FA-305/353 IP67 flood light | 582x385x60 |
Weight (kg ):
| Item Name | Weight (KG) |
| FA-085/105/153 IP67 flood light | 3.4 |
| FA-205 IP67 flood light | 4.8 |
| FA-255 IP67 flood light | 7.2 |
| FA-305/353 IP67 flood light | 7.5 |

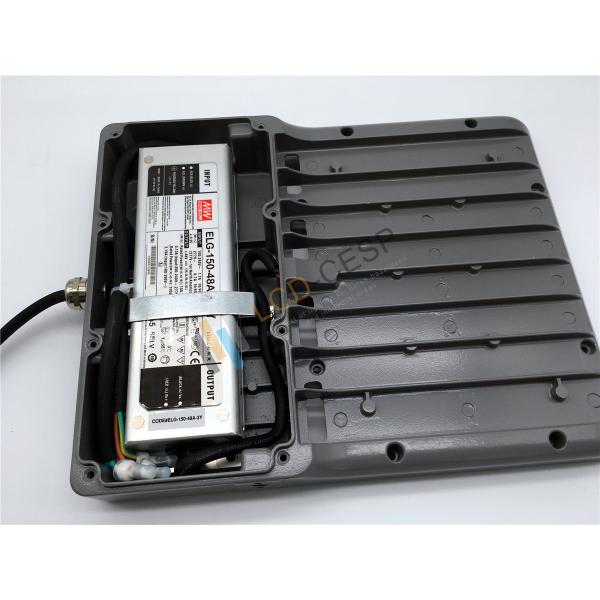

Product Construction

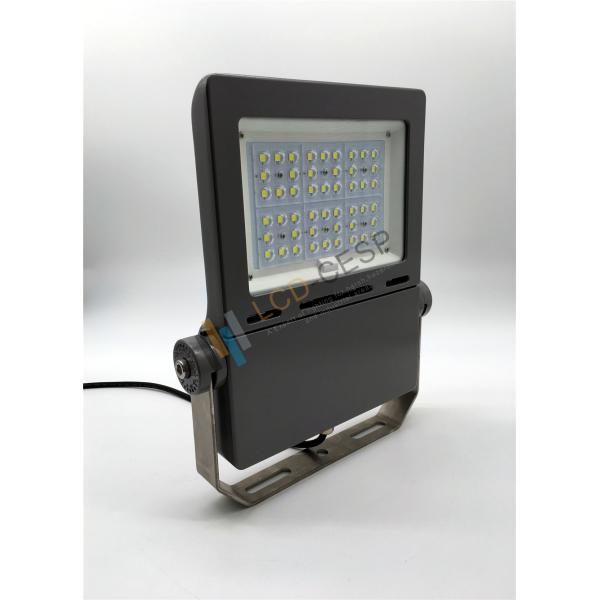

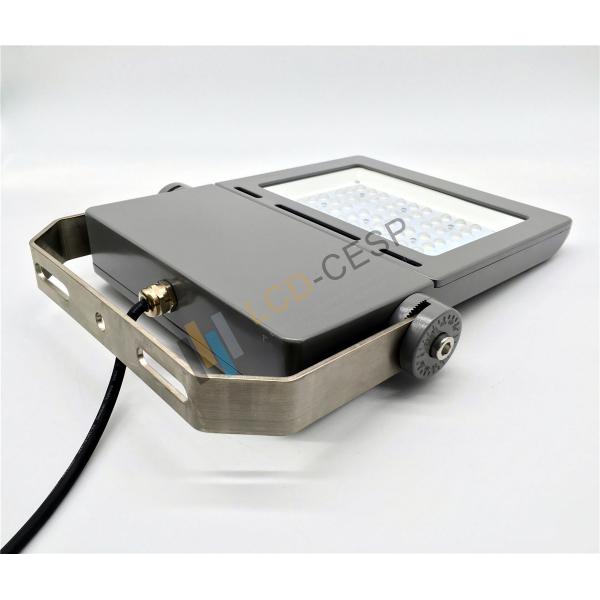

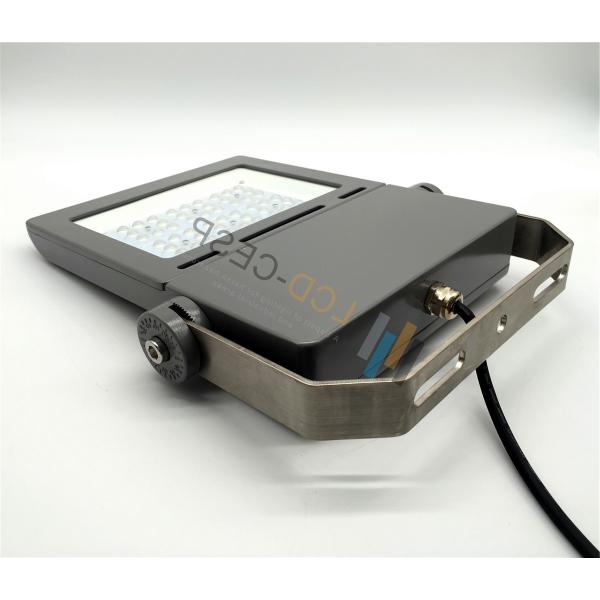

Product Photos
|
