| Categories | Industrial LED Flood Lights |
|---|---|
| Brand Name: | LCD-CESP brand |
| Model Number: | LCD-HQ-703 |
| Certification: | CE RoHs SAA ETL UL ATEX IECEx UL844 |
| Place of Origin: | SHENZHEN, CHINA |
| MOQ: | 1pcs |
| Price: | usd |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 piece/ month |
| Delivery Time: | 5-12 work day |
| Packaging Details: | Carton box |
| Beam angle: | 25 /60 / 90 / |
| Ambient Temp: | -30--+110 degree Celsius |
| Ip rating: | IP65 |
| Watt: | 600W |
| Color: | Black |
| Shape: | Round |
| Company Info. |
| LCD-CESP LIGHTING,CO., LIMITED |
| View Contact Details |
| Product List |

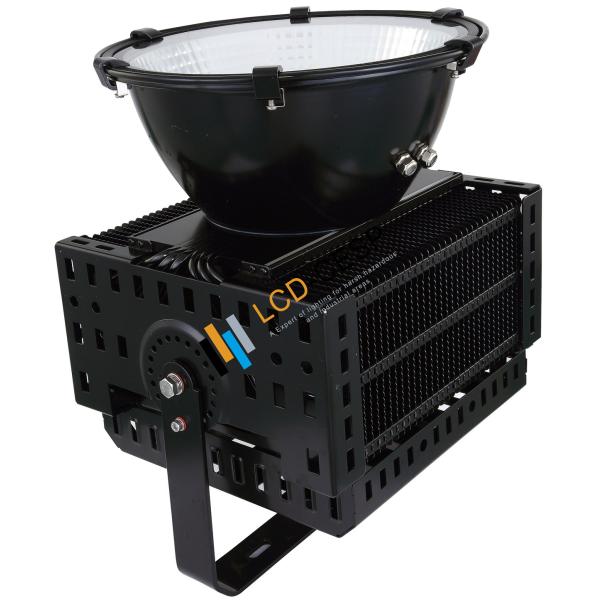

led outside flood lights 600W 78000lm 240VAC 50/60Hz watreproof IP65
LCD LED Outdoor highbay is the ideal solution for professional caliber outdoor sports lighting.Offering versatility for any outdoor sport including soccer, baseball, lacrosse and field hockey ,etc. TLCI>95, design for 4K and HD Broadcasting recording for optimal television and live audience viewing effect, Dial optional and separable electric box enables easiest adjustment and maintenance.

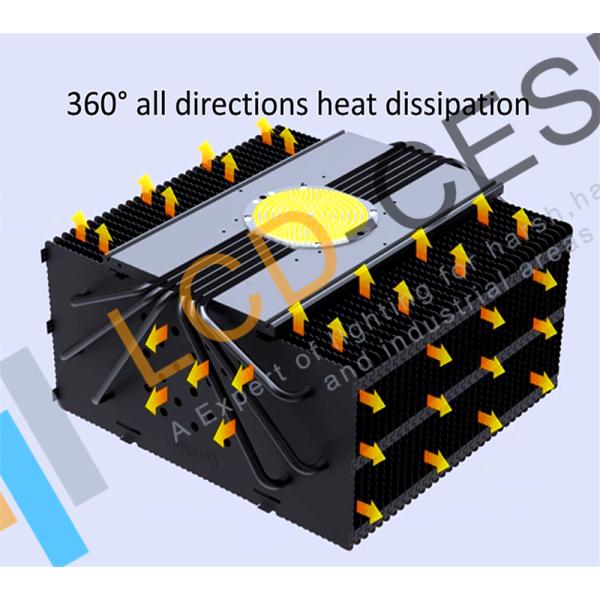

Heat sink
Die-cast design for high wear resistance can withstands harsh outdoor conditions,Passive cooling maximizes heat dissipation for a longer life of the luminaire.

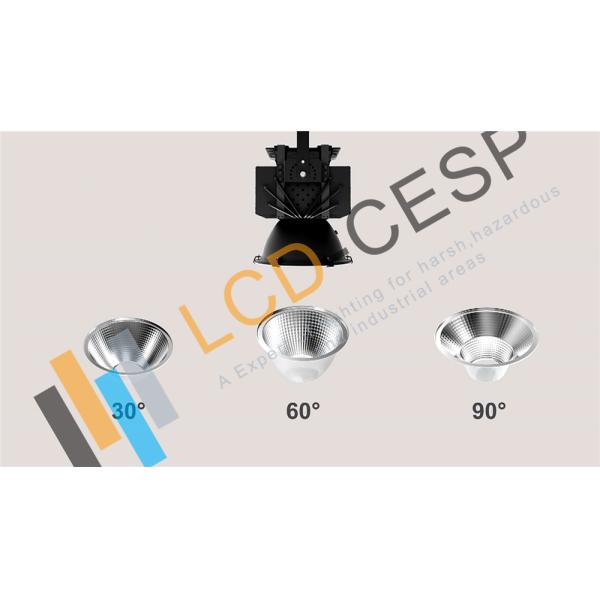

Professional optics
Glare-free illumination avoids light pollution and trespass. Canbe operated with or without glare shield. Enables maximum application efficiency&satisfying visual performance.
| Models | LCD-HQ-603 |
| Watt | 600w |
| IP Rating | IP65 (IP66 on requests) |
| Operating Temperature | -30°C~ +55°C ( +75°C--+110°C on requests) |
| Beam Angle | 25° - 60° - 90° |
| Lifespans | >50,000 Hrs |
| Lumen | 60000lm - 78,000lm |
| Warranty | 5-7 warranty |
| Certification | CE -RoHs-SAA-ETL-TUV |
SPECIFICATION
| Product Number | LCD-HQ-103 | LCD-HQ-153 | LCD-HQ-203 | LCD-HQ-303 | LCD-HQ-403 | LCD-HQ-503 | LCD-HQ-603 |
| Rated Power | 100W | 150W | 200W | 300W | 400W | 500W | 600W |
| Rated Voltage | 90-305VAC | ||||||
| Lumen (lm) | 12000-13000 | 18000-19500 | 24000-26000 | 36000-39000 | 48000-52000 | 60000-65000 | 72000-78000 |
| Power Factor | >97 | ||||||
| Color Temperature | 3000-6500K | ||||||
| CRI (Ra) | >75 | ||||||
| IP Rating | IP65 | ||||||
| LED Chip & Type | LUMILEDs SMD3030 | ||||||
| LED Qty | 100pcs | 150pcs | 210pcs | 320pcs | 400pcs | 480pcs | 610pcs |
| Driver | Meanwell/philips | ||||||
| Lifespan | >50,000hr | ||||||
| Housing Material | Aluminum6063 extruded/heat copper pipe | ||||||
| Operating Temperature | -30°C~+110°C | ||||||
| Beam Angle | 25°/ 60°/ 90° | ||||||
| Warranty | 5-7 years | ||||||
| BROWN BEAR FLOOD & HIGH BAY LCD-HQ Series | Can replace traditional metal halide | Applications |
| LCD-HQ-103 100W (13000lm) | 250w-400w | Plant construction / power plant |
| LCD-HQ-153 150W (19500lm) | 450W-600w | Workshops / factories / Automotive |
| LCD-HQ-203 200W (26000lm) | 600w-800w | Material handling / Machine building |
| LCD-HQ-303 300W (39000lm) | 800W-1200w | logistics center / warehouse |
| LCD-HQ-403 400W (52000lm) | 1200w-1600w | Smelting plant /steel mill |
| LCD-HQ-503 500W (65000lm) | 1600w-2000w | Shipbuilding / offshore platforms |
| LCD-HQ-603 600W (78000lm) | 2000w-3000w | sport court / stadium / harbor |
APPLICATIONS
| Construction and Earth Moving |
| Drilling, Mining and Quarrying |
| Demolition and Recycling |
| Transportation, Shipping and Aviation |
| Environment and Infrastructure |
| Service and Maintenance |
| Property Management |
| Forestry, Agriculture and Fur Farming |
| Rental |
| Firefighting, Rescue and Military |
| Special Vehicles and Process Industry |
| Offshore and Subsea |
|
