Home > Lights & Lighting >

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Categories Industrial LED Flood Lights
Brand Name: LCD-CESP brand
Model Number: LCD-HYFSL-73
Certification: CE RoHs SAA ETL UL TUV
Place of Origin: SHENZHEN, CHINA
MOQ: 1pcs
Price: usd
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 piece/ month
Delivery Time: 5-12 work day
Packaging Details: Carton box
Ip rating: IP65
Light source: LED
Led light source: Bridgelux,Lumileds,SMD
Input voltage(v): AC85-265V
Cri (ra>): 80,70,75,85
Beam angle(°): 60/90
Working lifetime(hour): 50000
Lamp body material: Die Casting Aluminum+PC,Aluminium Alloy + PC
Lamp luminous efficiency(lm/w): 130,120,140
Power: 70W, 150W, 210W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights

Aluminum 70W 150W 210W Industrial Outdoor Led Flood Lights


Aluminum Die Cast housing 70W 220VAC 50/60Hz symmetric beam 60/90 degree IP65


Our advantages:

1. Using brand LED chip and waterproof power supply.

2. Pure aluminum frame with good heat dissipation.

3. Use toughened glass and the light transmittance is about 93%.

4. High performance Constant Current driver, No flickering, fast starting.

5. Using different reflectors and lens to fix effective light beam angle accordingly, such as 90°, 120°, 140°

6. Waterproof Protection Grade: IP65

7. Earth wire connection for safety assurance.

8. Available with Sensor

9. Housing color: Black/Sliver


Suitable area of LED Floodlight:

led floodlight highly used in billboard lighting, family courtyard, corridor, shopping malls, sports venues, supermarkets, schools, hospitals, roads, building facade lighting, landscaping, lighting bar, ballroom, places of entertainment, hotels, villas, home decorative lighting, etc., due to its high color rendering, can also be used for jewelry appraisal, printing and dyeing, clothing, medical lighting, national defense work, scientific experiments, photography lighting, etc. It is the ideal choice to now replace the traditional halogen lamps


Operating and Electrical

Input Voltage220-240 VAC or 110-277VAC
Input Frequency50 or 60 Hz
Power Factor (Min)0.95
Controls and Dimmingon requests

Mechanical and Housing
Housing MaterialAluminum Alloy ADC12 die cast
Reflector material-----
Optic materialPolycarbonate
Optical cover/lens materialPolycarbonate
Fixation materialCarbon steel with corrosion proof powder coating
Mounting deviceMounting bracket adjustable
Optical cover/lens shape-----
Optical cover/lens finishtransparent or Frosted
Overall length504 mm
Overall width86 mm
Overall height350 mm
Effective projected area0.12m²
ColorAluminum and gray

Approval and Application
Ingress protection codeIP66 [ Dust penetration-protected, jet-proof]
Mech. impact protection codeIK09 [ >5 J vandal-protected]
Surge Protection (Common/Differential)Luminaire surge protection level until 3 kV

Initial Performance (IEC Compliant)
Initial luminous flux (system flux)9100 lm
Luminous flux tolerance+/-10%
Initial LED luminaire efficacy130 lm/W
Init. Corr. Color Temperature3000K / 4000K / 6500K
Init. Color Rendering Index75
Initial chromaticitySDCM<=5
Initial input power70 W
Power consumption tolerance+/-10%

Application Conditions / Product Data
Ambient temperature range-30 to +50 °C
Maximum dim levelon requests
Full product codeLCD-HYFSL-073-LNXX-4K
Order product nameLCD-LynxFS-Flood light 70W
Order codeN
Numerator - Quantity Per Pack1 pcs
Numerator - Packs per outer box1 box
Material Nr. (12NC)N
Net Weight (Piece)5.5KG

Dimensional drawing

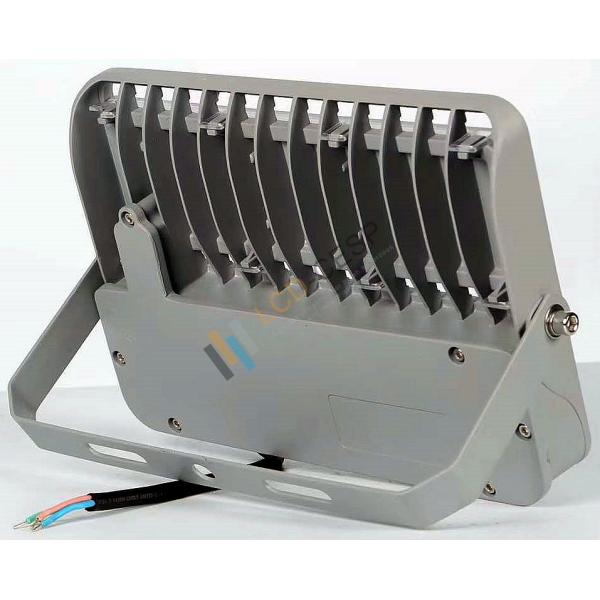

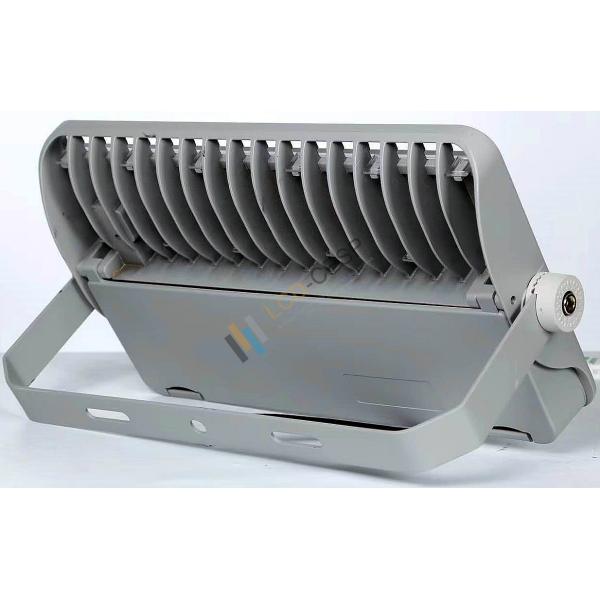

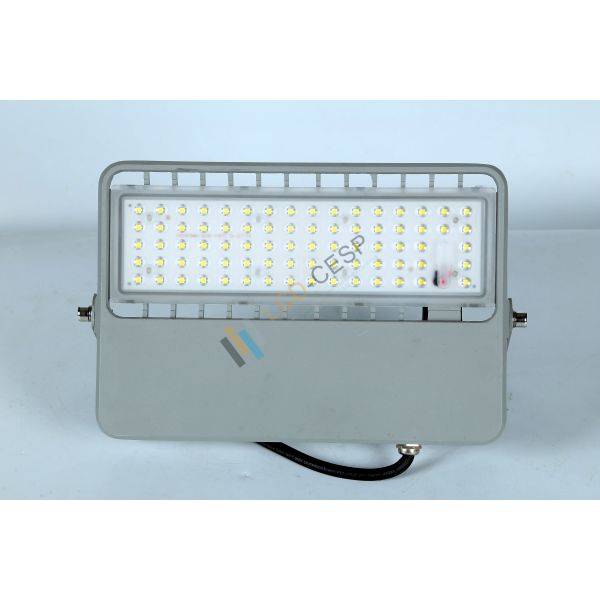

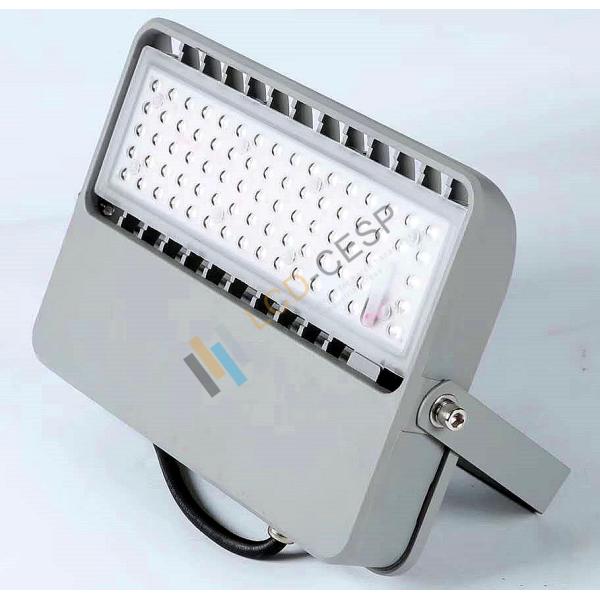

Product photo
