Low Noise 2.3V 3.0V 1.0W 8mm 90RPM 70mA DC Gear Motor

8mm 2.3V / 3.0V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear

• DC Worm Gear-Box Motor
• Diameter : Φ8.0mm
• Output : APPROX 0.1~1.0W
• Noise Level : Less than 50dB
• Low noise, stable performance, quality assurance

Typical Applications

• Fully automatic electronic door lock

• Office Automatic Equipments
• Printer/paper Feeder
• Bank Equipments Safe Box
• Ad Equipment
• Analysis Instrument/electronic
• Game Machine
• Household Appliances
• Electronic Door Lock

Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

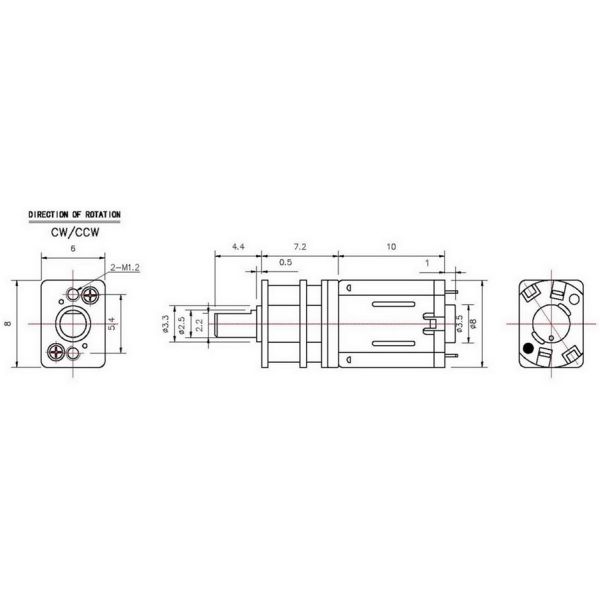

Drawing

Product Details Show

For more information, please contact us directly or through our sales and representative offices.

Competitive Advantage

• 16 years experience in manufacturing motor and gearbox motor
• Experienced Staff: average 12 years experience in R&D , ODM & OEM
• International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
• Competitive Price
• High Product Performance: Low noise, High efficiency, Long lifespan
• Prompt Delivery: 20-25 working days after payment
• Quality Approvals
• Small Orders Accepted
• Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

Quality Cotrol Test

• Reliability Test & Laboratory
• Noise Test
• Water-proof Test
• Life Test
• Impact Test
• Storage Test
• Salt Spray Test
• Environmental Related Substance

General Instructions for Use of Woshine Precise Machinery Motors DO’S and DON’TS to keep your motors in order

1. If silicon materials, which contain low molecular silicon compound adhere to the motor’s commentator, brush of other parts, then upon rectification of the electric energy the silicon breaks down into SiO2,SiC and other constituents which produce a rapid increase in the contact resistance between the commutator and brush. therefore great care should be taken when silicon material is used in a unit and check well at the same time that such binding agents or sealing materials are not generating gases of detrimental nature, whether used for motor mounting or applied during your product assembles. care must be taken for an optimum selection, especiallywhen using those of cyanic adhesive and sulfur gas.
2. When mounting your motors by means of binding agents, DON’T flow any adhessice to the Bearings nor intrusion into the motors.
3. Axial thrust on the output shaft could have an adverse effect on the motor life i.e... as is produced by worm gears, fans etc, check the service life expected under the actual operating conditions by testing the motors installed in your application products .for heavy thrust loads consider using something mechanical to retain the shaft end.
