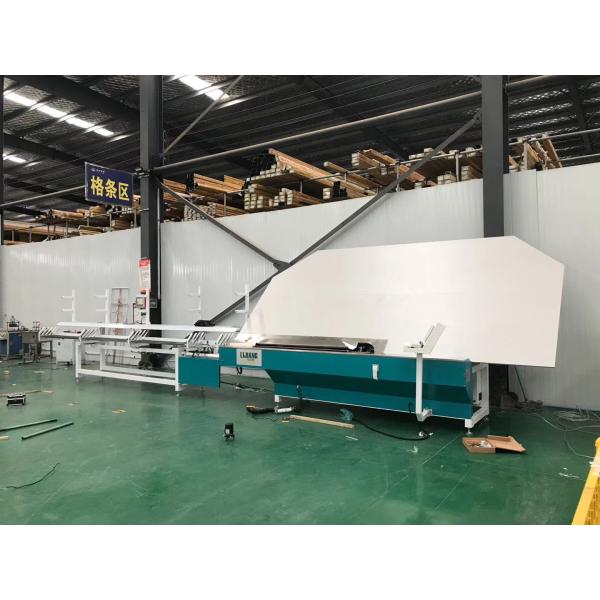

CE Certification Aluminum 27mm Spacer Bending Machine

Automatic Aluminum Spacer Bending Machine With CE Certification

Main performance features:

• In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available, easy to operate, natural, easy to understand.
• It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The equipment automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.
• The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m
• The CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.
• There is no tailing design, except for cutting loss, zero head processing can be realized.
• There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.
• It has the function of high-speed automatic continuous cutting of aluminum strip.
• The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.
• The aluminum strip is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
• High speed continuous production function, the operator only needs to ensure that there is material in the chute and take down the folded aluminum frame from the bending machine (the equipment has the fault alarm function, which can display the fault location and the fault reason), and the bending machine will stop automatically after processing to the set quantity.
• Energy saving function and emergency stop protection.
• All functions can be manually operated to meet the needs of commissioning and maintenance.
• There is no material prompt online, sleep prompt, fault prompt, work prompt. There is no material in the processing process. The machine will stop automatically and wait for the material. After the material is loaded, continue to complete the process.
• The function of judging the rationality of aluminum frame data. The unreasonable data is rejected for processing and prompted.
• The power on system is reset automatically.
• The aluminum frame is automatically cut off.
• Design of quick maintenance and adjustment panel.
• Curved arc-shaped aluminum frame, special-shaped frame function (unilateral, bilateral, trilateral, quadrilateral, hexagon, octagon, etc.)
• Output counting function, intelligent troubleshooting prompt.

Optional Functions :

•Connect to ERP system (Optional)
•USB input function, read the excel format file directly
•Automatically drill holes for filling argon gas (Optional)
•Spacer printing code function (Optional)
•Printing label sticker function (Optional)
•Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
