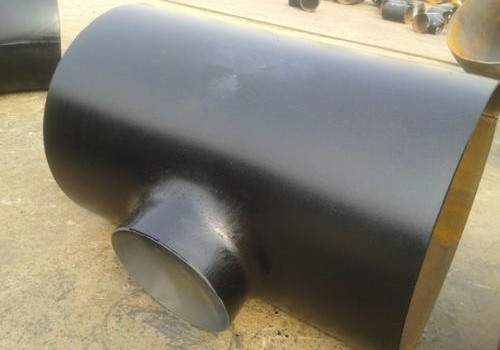

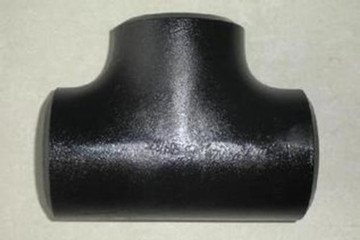

Forged Pipe Carbon Steel Butt Weld Reducing Tee

Description

Tee is a kind of pipe fitting with one inlet and two outlets; or two inlets and one outlet, which can be divided into T shape and Y shape, and can also be divided into equal diameter tee and reduced diameter tee, which is used for the convergence of three same or different pipelines. Tee is mainly used to change the direction of the fluid pipe connector. Reducing tee is a section of main pipe plus a small branch pipe. Obviously, two big sizes are main pipes, and the small size in the middle is branch pipe. Reducing tee is a kind of tee, which is used at branch pipe of main pipeline. In industry, the pressure requirement of reducing tee pipe is higher, the maximum pressure can reach 600 kg, and the pressure of water pipe in life is lower, generally 16 kg. Reducing tee is generally not used in pure oxygen pipeline. This kind of pipeline generally has pressure, and the oxygen activity is greater at this time. For example, if the reducing tee is used, as long as the sundries in the pipeline move with the oxygen air flow, the change of the pipe diameter and the change of the flow rate may cause the collision between the sundries and the pipe to produce the fire source or the electrostatic discharge due to the change of the flow rate, it may cause the fire and explosion of the pure oxygen pipe.

Butt welding reducing tee is a steel hot pressed or forged elbow. Its connection form is directly butt welding the tee and steel pipe.The main manufacturing standards of butt welding tee are generally GB / t12459, GB / T13401, ASME b16.9, sh3408, sh3409, Hg / t21635, Hg / t21631, SY / t0510. The production process of reducing tee includes hydraulic bulging and hot press bulging. Hydraulic bulging is a forming process of expanding branch pipe by axial compensation of metal material. This production method can be formed in one time with high production efficiency. However, due to the large tonnage of equipment required by the process, it is currently mainly used in the manufacture of standard wall thickness tee less than dn400 in China. Hot forming is that the tube blank is compressed radially under the action of pressure. In the process of radial compression, the metal flows towards the branch pipe and forms the branch pipe under the stretch of the die. Due to the reduction of the tonnage of the equipment needed for the material forming, the adaptability of the hot pressing tee to the material is wide, and most of the production usually adopts this forming process.

Specification

Standard: GB/T12459-2005 GB/T13401-2005 GB/T10752-2005

Material: Carbon steel: ASTM / ASME a234 wpb-wpc

Size range: Seamless tee: 1 / 2 "～ 32" DN15 ～ DN800, Slotted tee: 6 "～ 60" DN150 ～ DN1500
Thickness: Maximum wall thickness: 200mm

Surface treatment: anti-oil; anti-painting

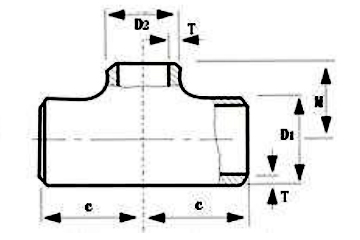

Technical data sheet

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time

Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.

Xi'an Longjoy Foreign Trade Co., Ltd. was established in 2002 and located in Xi'an Land Center, mainly engaged in the import and export of various pipe and pipe fittings. Our business scope is mainly in steel and plastic products, such as Carbon steel pipe fittings, stainless steel pipe fittings, flange, ductile iron pipe fittings, alloy pipe fittings, mar pipe fittings, HDPE pipe fittings. With the development of the business, we have accumulated rich trading experience and customer resources. Over the years, with excellent product quality and good business reputation, we have attracted many valuable customers in cooperating with us in the world.

Why Choose Us

1. Our advantage is that we can meet the needs of procurement at one time and provide a wide variety of pipes and fittings.

2. Nearly 20 years of professional trade experience to ensure that goods are delivered to you on time.

3. Stable cooperation with our partners to ensure fair price and quality of goods.

4. Choosing us means that we are your agent in China.

5. A perfect collaboration is the beginning of a long-term partnership.

Product Introduction

1. The company's main products include carbon steel pipe fittings, stainless steel pipe fittings, ductile iron pipe fittings, alloy pipe fittings, ma steel pipe fittings, flanges, etc.

2. According to the connection mode, it can be divided into butt welding pipe fittings, socket welding pipe fittings, threaded pipe fittings, etc.

3. Specific products include Elbow (long radius, short radius), Tee (equal, reducer), Reducer (concentric reducer, eccentric reducer), pipe cap, Cross Tee, Nipple, Branch pipe, Double socket collar, Piston, Joint, etc.

4. The main types of flange include WN Flange, Slip flange, socket welding flange, threaded flange, blind flange, etc.

Product Material Details

1. Carbon steel: ASTM / ASME a234 WPB, WPC.
2. Alloy steel: ASTM / ASME a234 WP 1-wp 12-wp 11-wp 22-wp 5-wp 91-wp911, 15Mo3 15CrMoV, 35crmov.
3. Stainless steel: ASTM / ASME A403 WP 304-304l-304h-304ln-304n ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti  ASTM/ASME  A403 WP 321-321H ASTM/ASME A403 WP 347-347H.
4. Low-temperature steel: ASTM / ASME A402 WPL3-WPL6.
5. High-performance steel: ASTM / ASME a860 WPHY 42-46-52-60-65-70.

6. Cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PVC, PPR, etc.

7. HDPE: PE100.
