| Categories | Cisco POE Switch |
|---|---|
| Brand Name: | Unifi |
| Model Number: | US-24-500W |
| Place of Origin: | USA |
| MOQ: | 1 Unit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per week |
| Delivery Time: | 3~5 working days |
| Packaging Details: | Original packing |
| Brand: | Unifi |
| Product name: | US-24-500W |
| Type: | UniFi POE Switch |
| Transmission rate: | 1 Gbps |
| poe Power: | 500 W |
| Port: | 24x RJ45 |
| Device type: | 24 Port Switch + 2x Gigabit SFP |

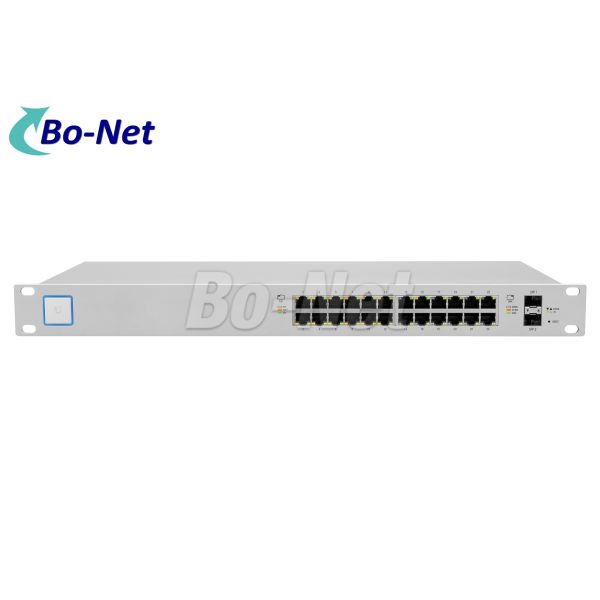

US-24-500W UbiQuiti UniFi Switch Switch Managed 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP rack-mountable PoE+Ubiquiti UniFi Switch US-24-500W Switch Managed 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP rack-mountable PoE+
Technische Daten:
| Allgemein | |
| Gerätetyp | Switch - 24 Anschlüsse - verwaltet |
| Gehäusetyp | An Rack montierbar 1U |
| Untertyp | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Leistung | Nicht-blockierende Switching-Kapazität: 26 Gbps Switching-Kapazität: 52 Gbps Übertragungsleistung: 38,69 Mpps |
| Remoteverwaltungsprotokoll | HTTP |
| Produktzertifizierungen | IEEE 802.3af, IEEE 802.3at |
| Statusanzeiger | Anschluß-Übertragungsgeschwindigkeit, PoE, Link/Aktivität |
| Erweiterung/Konnektivität | |
| Schnittstellen | 24 x 1000Base-T RJ-45 PoE+ - 34.2 W 2 x 1000Base-X SFP 1 x Konsole RJ-45 |
| Stromversorgung | |
| Stromversorgungsgerät | Internes Netzteil |
| Gestellte Leistung | 500 Watt |
| Erforderliche Netzspannung | Wechselstrom 120/230 V (50 - 60 Hz) |
| Maße und Gewicht | |
| Breite | 48.5 cm |
| Tiefe | 28.54 cm |
| Höhe | 4.37 cm |
| Gewicht | 4.7 kg |
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.Powerful Enterprise Switch Models
Advanced Port Management
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
The UniFi ® Switch features auto-sensing IEEE 802.3af/at PoE to power multiple devices on the network.
|
