| Categories | Aluminium Extruded Profiles |
|---|---|
| Brand Name: | HUANYU |
| Model Number: | HYUP6063T6 |
| Place of Origin: | CHINA |
| MOQ: | 5 METRIC TONS |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 50 METRIC TONS PER MONTH |
| Delivery Time: | 40 days |
| Packaging Details: | PALLET |
| Wall Thickness: | 19.6mm |
| Density: | 2.7 g/cc |
| Ultimate Tensile Strength: | 186 MPa |
| Yield Tensile Strength: | 145 MPa |
| Melting Point: | 616-654 Celsius Degree |
| Elongation at Break Percentage: | 18% |
| Application: | Metro Train , Public Transportation Vehicle |
| Shape: | U channel |
| Company Info. |
| Chongqing Huanyu Aluminum Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

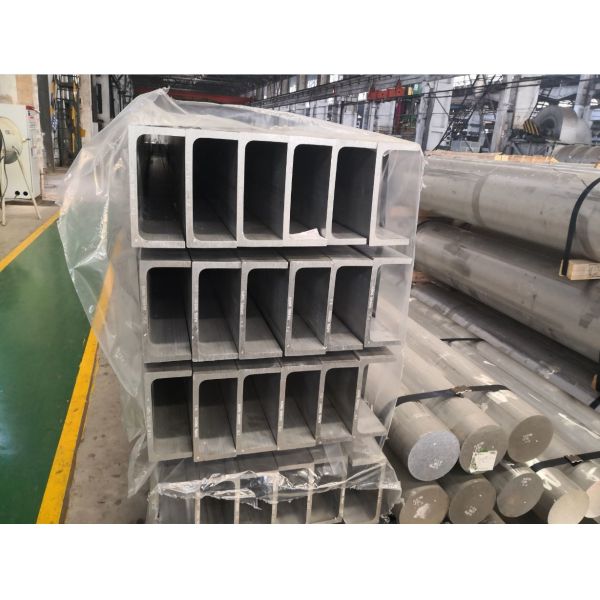

U Shape High Strength Aluminium Extruded Profiles 4200mm Alloy Extrusion Profiles for Constructure Applications
6063 is often called architectural aluminum for two reasons. First, it has a surface finish that is far smoother than the other commercially available alloys. Second, its strength is significantly less than most other aluminum alloys.
Specifications on High Strength 6063 T6 Extruded Profiles Used As Constructional Wall
Wall Thickness: 18.70mm
Shape: Customized
Length: 4200mm
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum | 0.20 | 0.45 | ||||||||
| Maximum | 0.60 | 0.35 | 0.10 | 0.10 | 0.90 | 0.10 | 0.10 | 0.10 | 0.05 | 0.15 |
Remainder Aluminum
| Temper | Tensile | Hardness | ||||
|---|---|---|---|---|---|---|
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T5, T52 | 27 | 186 | 21 | 145 | 12 | 60 |
| T6 | 35 | 241 | 31 | 214 | 12 | 73 |
|
