| Categories | Mini Solar Panels |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Certification: | ISO9001, CE, SGS |
| Supply Ability: | 10000PCS |
| Packaging Details: | Multiple packaging |
| MOQ: | Negotiable |
| Price: | Negotiation |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Material: | Monocrystalline Silicon |
| Max. Power: | 100W |
| Number of Cells: | 36pcs |
| Size: | Gauge |
| solar panel: | A grade solar panel |
| front glass: | low iron, temeperated |
| frame: | aluminium frame |
| for 12v application: | for RV use |
| Type: | solar panel price |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

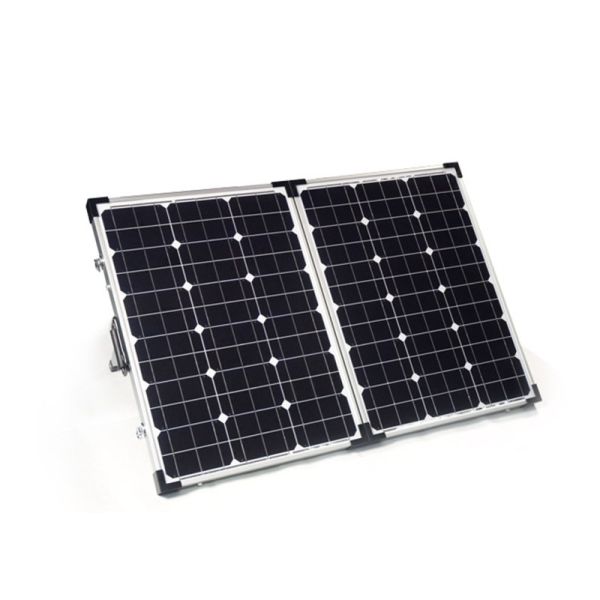

Foldable Mini Portable Solar Panels
Can charge any 12V battery with 5m cable alligator clip
Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass
Light weight,easy to carry outside
Suitable for home/caravans/camper
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >= 25 years
Electrical Characteristics
Product code | SGF2-100W18V |
Maximum power(Pmax) | 2 x 50W |
Voltage at Pmax(Vmp) | 17.8V |
Current at Pmax(lmp) | 5.62 |
Open circuit voltaage(Voc) | 21.3 |
Short circuit current(lsc) | 6.07 |
Cells Efficiency(%) | 0.184 |
The maximum system voltage | 1000VDC(IEC) |
Output power tolerance | -0.03 |
Specifications
Cells | Germany solar world cells |
No.of cells and connections | 36(3X12) |
Module dimension | 505*650*30mm |
Weight | 11.87kg |
Certification | CE,RoHS,ISO |


|
