| Categories | Industrial TFT Display |
|---|---|
| Brand Name: | Mitsubishi |
| Model Number: | AA084VG01 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Price: | 70USD |
| Payment Terms: | T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW |
| Supply Ability: | 1000PCS |
| Delivery Time: | 1 DAY |
| Packaging Details: | With Origianl Factory Package |
| Size: | 8.4 Inch |
| Resolution: | 640*480 |
| Luminance: | 800 cd/m² (Typ.) |
| View Direction: | 6 o'clock |
| Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) |
| Support Color: | 262K 40% NTSC |
| Contrast Ratio: | 600:1 (Typ.) (TM) |
| Light Source: | WLED [2 strings] , 100K hours , W/O Driver |
| Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| Interface Type: | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Main Information:

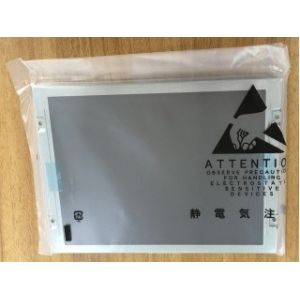

The AA084VG01 (Alias: T-55467D084J-LW-A-AAN) is a 8.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation,with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²).
It's general features are following: Wide Temperature, Hight Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 100K hours, 180° Reverse, Matte , NCM. Based on its features, this model be applied to Industrial etc.
2. Mitsubishi AA084VG01 Mechanical Details:
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.089×0.267 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.267×0.267 (H×V) [95PPI] | |
| Mechanical Size : | Active Area(mm) | 170.88(H) × 128.16(V) | Bezel Area(mm) | 174.9(H) × 132.2(V) |
| Outline Dim.(mm) | 199.5(H) × 149(V) | Depth(mm) | 11.5 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (4-Φ3.4), Side mounting holes (4-M2) | |||
| Other Spec : | Weight | 365g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3. Mitsubishi AA084VG01 Optical Details:
| Basic Information | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 4/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 38% | sRGB | 53% coverage |
| Adobe RGB | 39% coverage | DCI-P3 | 39% coverage | |
| Rec.2020 | 28% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4. Mitsubishi AA084VG01 Interface Details:
| Signal Electrical | Voltage Supply | 3.3V (Typ.) | Current Supply | 320/500mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.8V; 2.0V≤VIH≤5.5V | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9BA-31P-1V(32) | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010F | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
