A Frame Traveling Gantry Crane

Fixed Lifting Height 5 Ton 10 Ton 15 Ton A-Frame Traveling Gantry Crane Price


Product presentation

Single girder gantry crane is consisting of the boxed structure, electric hoist, long travelling mechanism, electrical control system.

The electric hoist can move horizontally on the rail fitted under a girder.

The length of cantilevers can be designed to meet your actual working demands.

With or without, one side or both sides.

Working Condition

* Working temperature:-25~40°C

* Power Source:3PH,380V,50HZ or other under customer requirement

* Forbidden to use in easily combustible, explosive, corrosive environment.

Main Features

1. Large lifting capacity, low headroom, small wheel-pressure, stable operation;

2. Fast positioning, ergonomic design, comfortable operation;

3. Through strict test, long working life, short maintenance;

4. Safe and reliable, enhance productivity, crate greater benefits;

5. More beautiful appearance, more comfortable operation for workers;

6. Don't need to change the building structure, meet the demand of logistics easily.

Applications

Single girder gantry crane is widely used for the workshop, station, port, warehouse and , etc.,

It is used for loading and unloading between fixed span and it can handle many kinds of materials, such as steel structure, precast concrete, glass, plastic, etc.


Parts show

Single girder gantry crane consists of 5 main parts, namely, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment.

It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.

The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.

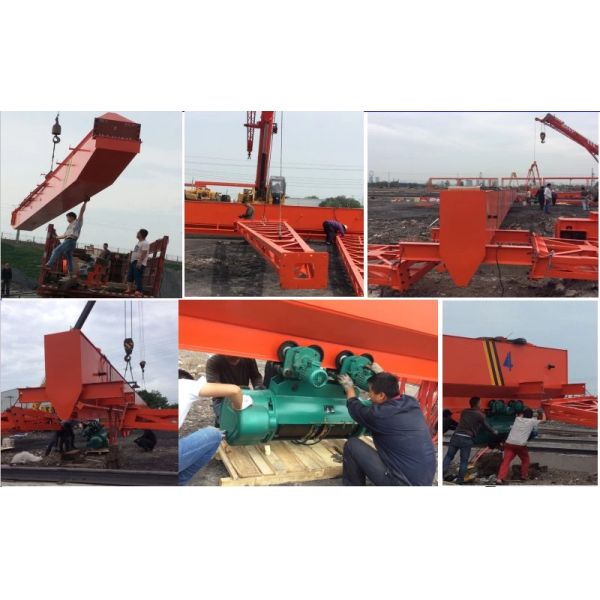

Installation steps



1) Overloading protection

2) Top quality long time bearing polyurethane materials buffer

3) Crane traveling and cross limit switch

4) Voltage lower protection function, reduce energy consumption

5) Main lifting motor with thermal protection

6) Hooks with latch

7) Rubber buffers

8) Protective earthing

9) Sub-assembly characteristic are tested before assembly

10)Emergency stop system, current over-load protection system

Technical parameters

Rated load/ton510162032Span/m10-40Lifting height/m30Working classA3/1bMLifting speed/m/min873.53.53Trolley running speed/m/min2020202020Crane running speed/m/min2020202020Dead weight/t10.5~37.516.8~5218.9~6524.5~7727.5~98Number of wheel44444/8Max. wheel pressure/KN52.5~12.195~183131~242167~298238~41.5Steel track recommendedP24P38P43P43P43Power supply3AC 220~480V 50/60HzWe can design and manufacture all kinds of non-standard product according to your requirement

Packaging Details

Boxed type single girder gantry cranes package:

1. Electric parts motors are packed by high quality plywood crate

2. Main steel structure are packed by plastic woven cloth

3. Delivery: Standard container or bulk shipment

4. Packing and transport ways are based on guarantee the crane perfect and reducing clients' sea freight.
