6213 A 25.0 1'' Brass Solenoid Valve For Water Air Gas Liquid 24V 110V 230V

6213 A 25.0 1'' Brass Solenoid Valve For Water Air Gas Liquid 24V 110V 230V

6213 A 25.0 1'' 10bar Brass Solenoid Valve For Water Air Gas Liquid 24V 110V 230V​

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Oil, etc
2. Working Pressure Range: 0.3 to 10 bar (10mm to 25mm orifice), 0.7 to 16 bar (40mm to 50mm orifice)
3. Medium Temperature Range: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 10mm, 13mm, 20mm, 25mm, 40mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

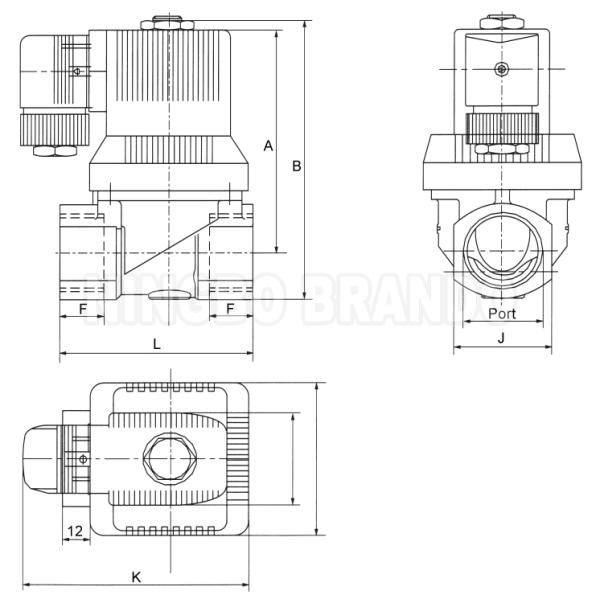

Overall Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of applications.

Question 2: How can you tell if your solenoid is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Ningbo Brando Hardware Co., Ltd
