| Categories | Molybdenum Products |
|---|---|
| Brand Name: | Sanhui |
| Model Number: | Mo1 |
| Certification: | ISO 9001:2008 |
| Place of Origin: | Henan, China |
| MOQ: | 5 kgs |
| Price: | USD 60-100 per kg |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 500kgs per month |
| Delivery Time: | 15-20 days |
| Packaging Details: | plywood case |

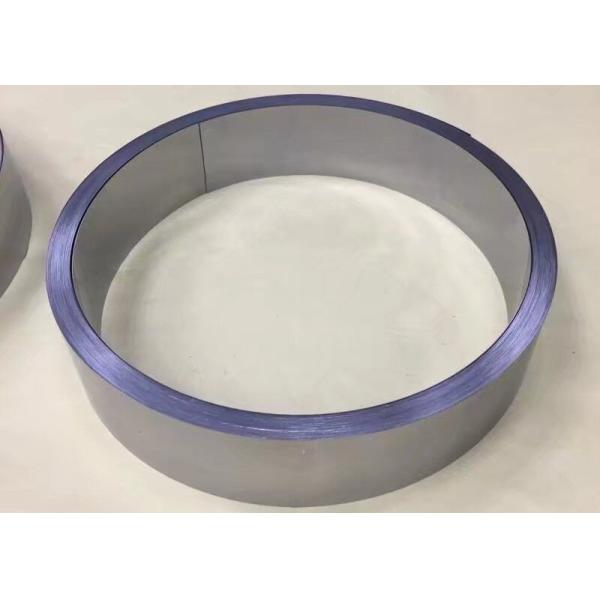

| Name: | Molybdenum Foil |
| Application: | furnace tooling |
| Surface: | Cold rolled |
| Condition of molybdenum foil: | Vacuum Anneal and un-annealed |
1. Molybdenum Foil Purity: purity> 99.95%
2. Appearance: Black or polished,hot roll or cold roll
3. specification:0.025~0.09*W*L
4. surface:cold rolled
5. condition of molybdenum foil :Vacuum Anneal and un-annealed
Molybdenum foil chemical compositions
| Type | Chemical composition(%) | |
| Mo | Impurity | |
| Mo1 | >=99.95 | <=0.05 |
| Mo2 | >=99.9 | <=0.10 |
Molybdenum foil dimensions and tolerance:(mm)
| Thickness | Thickness tolerance | Width | Width tolerance | Length | Length tolerance | |
| Class I | Class II | |||||
| 0.1-0.15 | ±0.01 | ±0.02 | ||||
| >0.30-0.30 | ±0.02 | ±0.03 | 50-250 | ±2 | 100-1000 | ±5 |
| >0.30-0.50 | ±0.03 | ±0.04 | ||||
| >0.50-0.70 | ±0.04 | ±0.05 | ||||
| >0.70-1.0 | ±0.05 | ±0.08 | 50-800 | ±3 | ||
| >1.0-2.0 | ±0.06 | ±0.10 | ||||
| >2.0-3.0 | ±0.08 | ±0.15 | ||||
| >3.0-4.0 | ±0.10 | ±0.20 | ||||
| >4.0-5.0 | ±0.12 | ±0.30 | ||||
2. Guaranteed purity.
You can rely on our quality. We produce our molybdenum foil ourselves – from the metal oxide right through to the finished product. As our input material, we use only the purest molybdenum oxide. This ensures that you benefit from a very high level of material purity.

|
