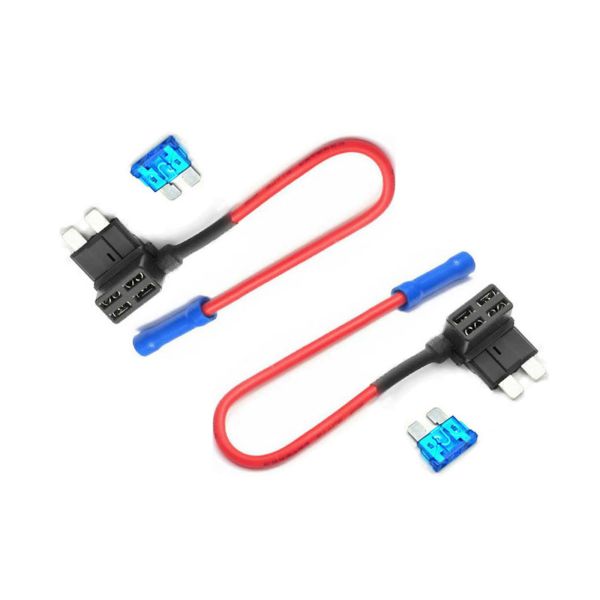

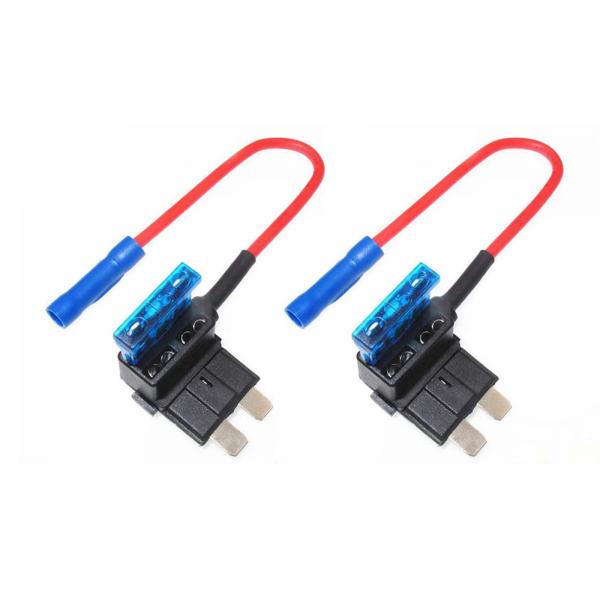

Electrical Appliance 150mm Overmolded Cable Assemblies

Basic materials and parameters:

1. Upper cover plastic shell: nylon/Nylon

2. Lower cover rubber shell: nylon/Nylon

3. Terminal: tinned copper

4. Casing: heat shrinkable casing

5. Electronic wire: customized according to customer requirements, conventional wire UL1015/1007 12-22AWG (optional)

6, the end of the wire: blue insulated middle tube (cold-pressed terminal), or bullet terminal / tail half or fully stripped (plug terminals can be customized according to customer requirements)

7. Rated current: 30A

8. Rated voltage: 32V

9. Packing: 100PCS/bag (can be customized)

1. Product Features

1. Applicable to the installation/refitting of automobile lines to take power without breaking wires.

2. The fuse box is used for power supply, insert one to replace one, place the original fuse near the seat of the plug, and place the fuse required for modification in the other seat (connected to the wire).

2. Product Overview:

Automobile electrical appliances are mainly used to add circuits on the basis of the original automotive circuits to power automotive electronics (driving recorders, electric tailgates, electronic dogs, GPS, LED) and other devices. There are four types of car electrical appliances: medium, small, mini, and MICR02 electrical appliances. They correspond to medium car fuses, small car fuses, mini car fuses, and MICO02 car fuses. It is easy to install without breaking the original circuit of the car.

3. Basic information:

Take the plastic of the main body of the electrical appliance: the fuse holder requires current resistance, voltage resistance, corrosion resistance, fire resistance, etc. There are also many plastic materials that meet these characteristics. Our company selects nylon (PA66) material with extremely high chemical stability, which is wear-resistant, environmentally friendly and has good mechanical properties.

Fuse body plastic: It acts as an insulating support to protect the melt from external forces. The material used by our company is PC material or nylon material, which is a high-strength flame retardant material with impact resistance, wear resistance and other characteristics to meet the demanding requirements of fuses.

Metal contact feet: common main materials are zinc, tin, copper, silver, etc. or alloys based on these materials. They have good electrical conductivity, excellent ductility, and are easy to form. The materials selected by our company are high-quality zinc alloy materials. The metal contact feet are integrally formed with the fuse melt, acting as a bridge for current to flow in and out of the melt.
