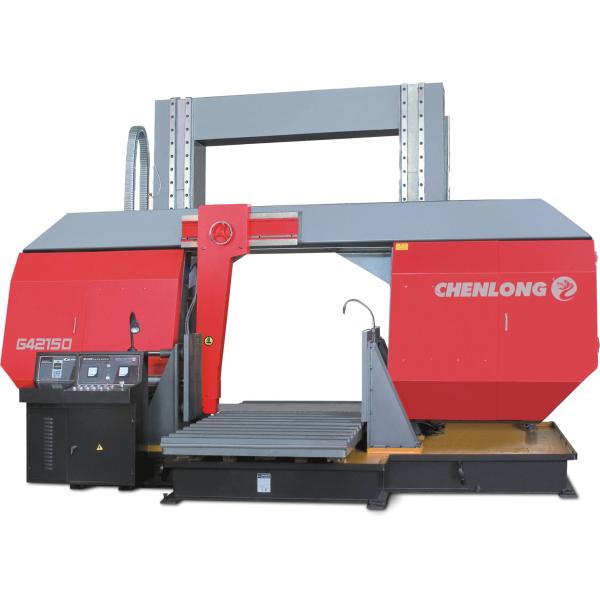

Iron Steel Metal Cutting Horizontal Band Saw Machine Large And Gantry G42150

Feature :

1. Working light

2. Laser project

3. Hydraulic shuttle table feeding

4. Hydraulic blade tension

5. Inverter control the blade line speed

6. Hydraulic shuttle table feeding

Product parameters
Model Name	New	CH-1500
	Original	G42150
Max.cutting	Round	1500mm
capacity	Quadrate	1500×1500mm
Saw blade	Speed	10-50m/min (inverter)
	Size	80×1.6×14850mm
	Guides	Carbide and bearing blade guides
	Cleaning	Wire brush & flood coolant
	Tension	Hydraulic
Motor output	Blade	18.5kw
	Hydraulic	5.5kw
	Coolant	0.37kw
Work feeding		Hydraulic shuttle table
Work Vise		Hydraulic
Machine Weight		12000kg
Machine Size(L×W×H)		6500×2300×4800
Transmission		Gear reducer
Standard Equipments
1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. One piece of bi-metal saw blade.
5. One set of tools with tool box
6. Roller table 2M long
7. Hydraulic blade tension
8. Laser projector
9. Inverter

Product Tags:

G42150 horizontal metal bandsaw
