| Categories | Double Column Bandsaw Machine |
|---|---|
| Place of Origin: | Zhejiang, China |
| Brand Name: | CHENLONG |
| Certification: | CE,ISO9001,ISO14001,OHSAS18000 |
| Supply Ability: | 5000 Set/Sets per Year |
| Packaging Details: | NUDE |
| MOQ: | 1 Set/Sets |
| Price: | Negotiable / Set |
| Model Number: | CH-1000 |
| Delivery Time: | 35workdays |
| Power (kW): | 11 |
| Weight (KG): | 1350 |
| Warranty: | 1 YEAR |
| POWER: | UP TO CUSTOMER |
| Voltage: | 380V/220V/415V/440V/3ph/50hz |
| Clamping: | Hydraulic |
| Saw Frame Feeding: | Hydraulic |
| Controlling Mode: | semi-automatic |

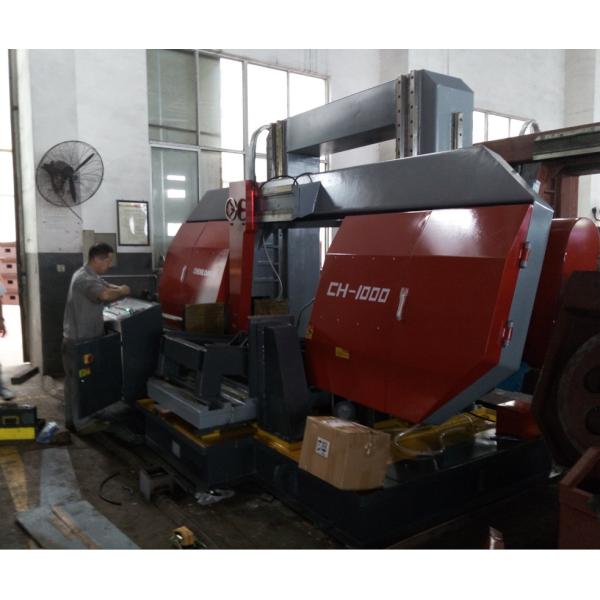

Double Column Cutting Machine Band Saw shuttle table feeding CH-1000
Feature:
1. Roller table 2M
2. Hydraulic blade tension
3. working light
4. Laser projector
| Product parameters | |
| Cutting Capacity(mm) | ruond:1000 quadrate :1000W*1000H |
| Blade Speed(m/min) | 15-60inverter |
| Blade Size(mm) | 67*1.6*9820 |
| Motor Main(kw) | 11 |
| Motor Hydraulic (kw) | 3.75 |
| Coolant Pump(kw) | 0.09 |
| Workpiece clamping | hydraulic vise |
| Blade Tensioning | hydraulic |
| Main Drive | Gear reducer |
| Table Height(mm) | 520 |
| Machine Size(L*W*H)(mm) | 4560*2170*3040 |
|
