| Categories | Insulation Anchor Pins |
|---|---|
| Brand Name: | Huihao |
| Model Number: | insulation lacing anchor |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 500000 pcs per 15 days |
| Delivery Time: | 15 days after the payment |
| Packaging Details: | paper carton + wood pallet |
| Material: | stainless steel , galvanized steel. mild steel |
| Head: | 7/8" as standard |
| Spindle Dia: | 12ga or 14ga As Standard |
| length: | 2-1/2" or 4-1/2" as standard |
| Head thickness: | 1mm |
| application: | Freeze Protection Cover |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

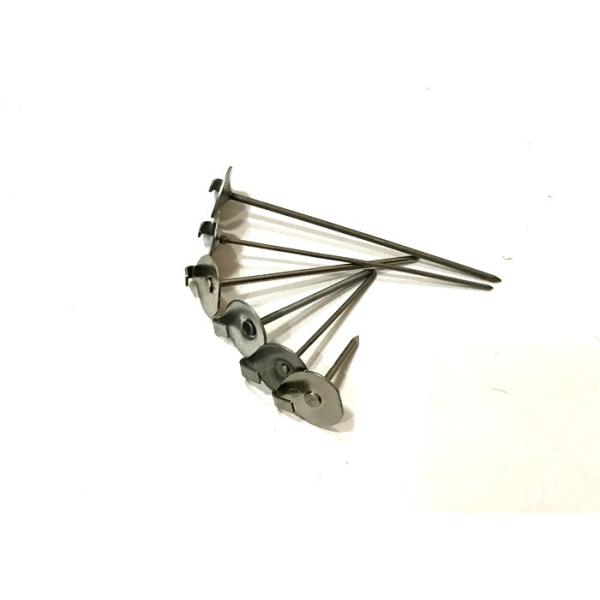

Specification Of Metal Insulation Lacing anchors With Speed Clips For Freeze
Protection Cover
type | head size | hook length | head thickness | pin diameter | pin length |
1 | 22mm | 5mmx11mm | 1mm | 2.2mm, 2.7mm, 3mm | 25mm-140mm |
2 | 11mmx24mm | 5mmx11mm | 1mm | 2.2mm,2.7mm,3.0mm | 25mm-140mm |
3 | 30mm | 5mmx15mm | 1mm | 2.2mm,2.7mm,3.0mm | 63mm-250mm |
Materials: stainless steel , galvanized steel and mild steel
fixing parts : Self-locking washers , speed clips and dome cap
washers. or to be your request.
types of Metal Insulation Lacing anchors With Speed Clips For Freeze
Protection Cover
How to Cooling Insulation Covers Lacing Anchors, Removable Insulation
Jacket Anchor Pin
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
applications of Cooling Insulation Covers Lacing Anchors, Removable Insulation
Jacket Anchor Pin
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|

|
