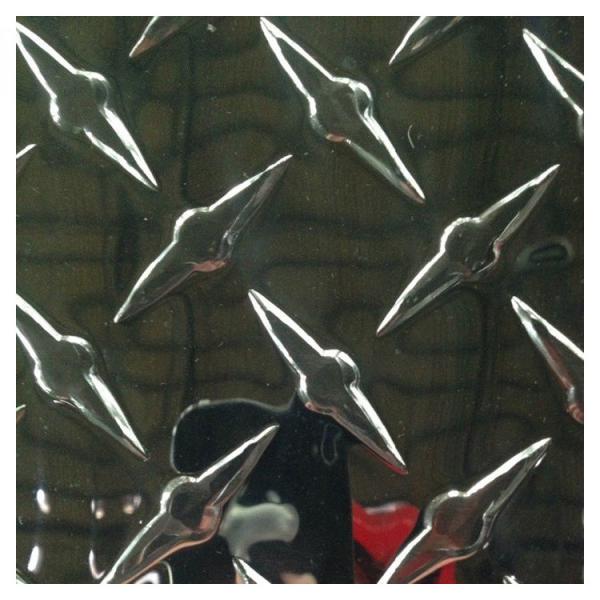

Name: Anti Rust 3003 H112 1mm Diamond Aluminum Sheet
Brand: Dongchong
Price: 1 USD

Product Details
Company Profile

Anti Rust 3003 H112 1mm Diamond Aluminum Sheet

Antirust Mirror Surface 1mm 3003 H112 Diamond Aluminum Sheet 6~2500mm Width

Production Description

Al-mn alloy 3003 is the most widely used type of anti-rust aluminum. The strength of this alloy is not much higher than that of commercial pure aluminum and can not be strengthened by heat treatment, therefore, cold-working method is adopted to improve its mechanical properties: High Plasticity in annealing state, good plasticity in semi-cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability and poor machinability. It is mainly used for low load parts, such as oil tank, gasoline or lubricating oil conduit, various liquid containers and other small load parts made by deep drawing, which require high plasticity and good weldability, the wire is used for rivets.

The use of 3003 for processing requires parts with good formability, high corrosion resistance and weldability, or requires both these properties and work with higher strength than 1XXX alloy, such as kitchenware, food and chemical products processing and storage devices, tanks for transporting liquid products, and various pressure vessels processed with sheet metal. With the pipeline.

ALLOY	CHEMICAL COMPOSITION (%)
ALLOY	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Other		Al
1035	0.35	0.6	0.1	0.05	0.05	__	__	0.1	0.03	__	0.03	__	99.35
1100	0.95		0.05-0.2	0.05	__	__	__	0.1	__	__	0.05	0.15	99
1050	0.25	0.4	0.05	0.05	0.05	__	__	0.05	0.03	__	0.03	__	99.5
1060	0.25	0.35	0.05	0.03	0.05	__	__	0.05	0.03	__	0.03	__	99.6
1070	0.2	0.25	0.04	0.03	0.03	__	__	0.04	0.03	__	0.03	__	99.7
1080	0.15	0.15	0.03	0.02	0.02	__	__	0.03	0.03	__	0.02	__	99.8
1045	0.3	0.45	0.1	0.05	0.05	__	__	0.05	0.03	__	0.03	__	99.45
1145	0.15	0.3-0.5	0.02	0.05	0.05	__	__	0.1	0.03	__	0.03	__	99.35
1200	1		0.05	0.05	__	__	__	0.1	0.05	__	0.05	0.15	99
1235	0.65		0.05	0.05	0.05	__		0.1	0.06	__	0.03	__	99.35
2014	0.5-1.2	0.7	3.9-5.0	0.4-1.2	0.2-0.8	0.1		0.25	0.15		0.05	0.15	rest
2A12	0.5	0.5	3.8～4.9	0.3-0.9	1.2-1.8		0.1	0.3	0.15	__	0.05	0.15	rest
2017	0.2-0.8	0.7	3.5-4.5	0.4-1.0	0.4-0.8	0.1		0.25	0.15		0.05	0.15	rest
2024	0.5	0.5	3.8-4.9	0.3-0.9	1.2-1.8	0.1		0.25	0.15		0.05	0.15	rest
3003	0.6	0.7	0.05-0.2	1.0-1.5				0.1			0.05	0.15	rest
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	__	__	0.25	__	__	0.05	0.15	rest
3104	0.6	0.8	0.05-0.25	0.8-1.4	0.8-1.3	__	__	0.25	0.1	__	0.05	0.15	rest
3105	0.6	0.7	0.3	0.3-0.8	0.2-0.8	0.2	__	0.4	0.1	__	0.05	0.15	rest
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	__	0.1	__	__	0.05	0.15	rest
5A06	≤0.40	0.000～0.400	≤0.10	0.50～0.8	5.8～6.8	__	0.0001～0.005	≤0.20	0.02～0.10	__	0.05	0.1	rest
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.1	__	0.25	__	__	0.05	0.15	rest
5050	0.4	0.7	0.2	0.1	1.1-1.8	0.1	__	0.25	__	__	0.05	0.15	rest
5154	0.25	0.4	0.1	0.1	3.1-3.9	0.15-0.35		0.25	0.2		0.05	0.15	rest
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	__	0.2	0.15	__	0.05	0.15	rest
5454	0.25	0.4	0.1	0.5-1.0	2.4-3.0	0.05-0.2		0.25	0.2		0.05	0.15	rest
5182	0.2	0.35	0.15	0.2-0.5	4.0-5.0	0.1		0.25	0.1		0.05	0.15	rest
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	_	0.25	0.15	__	0.05	0.15	rest
5086	0.4	0.5	0.1	0.2-0.7	3.5-4.5	0.05-0.25		0.25	0.15		0.05	0.15	rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	0.05		0.15	0.1		0.05	0.15	rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	__	0.25	0.15	__	0.05	0.15	rest
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	__	0.1	0.1	__	0.05	0.15	rest

Aluminum Checker Sheet Advantages

1. Accurate size, good anti-slip effect,wide range of applications .

2. Strong plasticity, easy forming and excellent processing performance.

3. Embossed aluminum sheet can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.

4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.

5. The surface quality of aluminum checker plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.

6.The advantages of tread plate are slip resistant, corrosion resistant, hygienic, protective and attractive.

7.Tread plate can be found in parking lots, garages, stairways, step ladders, elevators, loading docks, warehouses, distribution centers, hospitals, factories, ships, floating docks, refrigerator trucks, walk-in freezers, elevators, walkways, handicapped access ramps, truck tool boxes, trailers, and much more.

Diamond Aluminium Plate
Alloy	1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011
Temper	H14,H18,H24,H32 ,H112, H114, T4,T6 ,T651,O
Thickness (mm)	0.4mm to 7 mm
Width (mm)	Up to 1800mm
Length (mm)	Up to 6000mm
Standard	GB/T3880-2012
MOQ	5ton
Application	1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall
	2)Household appliances: refrigerators, microwave ovens, audio equipment, etc.

Technical Property

Alloy	Temper	Thickness(mm)	Tensile strength(Mpa)	Yeild strength(Mpa)	Elongation(%)
			Min
3003	O H111	>0. 20—0. 50	95-135	35	15
		>0. 50 — 1. 50			17
		>1. 50 — 3. 00			20
		>3.00 — 6. 00			23
		>6.0-12.5			24
		>12.5-50
	H12	>0. 20—0. 50	120-160	90	3
		>0. 50 — 1. 50			4
		>1.50 — 3.00			5
		>3. 00 — 6. 00			6
	H14	>0. 20 — 0. 50	145-195	125	2
		>0. 5- 50			2
		>1. 50 — 3. 00			3
		>3. 00—6.0			4
	H16	>0. 20 — 0. 50	170-210	140	2
		>0.50 — 1.50			3
		>1. 50—4. 00			3
	H18	>0. 20 — 0. 50	190	170	1
		>0. 50—1. 50			2
		>1. 50 — 3. 00			2
	H22	>0. 20—0. 50	120-160	80	6
		>0. 50 — 1.50			7
		>1.50 — 3.00			8
		>3. 0—6.0			9
	H24	>0. 20—0. 50	145-195	115	4
		>0. 50 — 1.50			4
		>1.50 —3. 00			5
	H26	>0. 20 — 0. 50	170-210	140	2
		>0.50—1.50			3
		>1.50 — 3. 00			3
	H28	>0,20 — 0,50	190	160	2
		>0. 50〜L 50			2
		>1. 50—3. 00			3

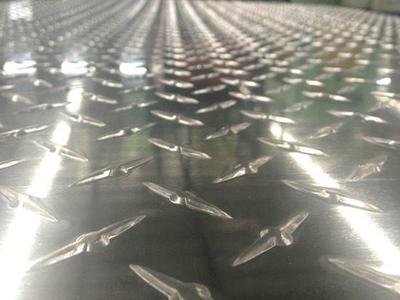

Photos

Company Introduction

Established for nearly 20 years, CHONGQING DONGCHONG ALUMINUM CO.,LTD. who mainly engages in aluminum industry product research, design, sales and has two subsidiaries yet, with professional equipment, mature technology, excellent team, whose annual sales have ranked first in the southwest region of China.

We have long-term cooperation with many outstanding euterprises, whose product quality is convincing.Our company provides custom-made services, in the product accuracy far more than peers.

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine	Uncoil(MM)				Finished size(MM)		Slitting Width(MM)
	ID	OD	Width	Thickness	ID	OD	Above 0.5mm≥ 20mm
	Φ 400	≤ 1800	≤ 1600	0.5-4.5	Φ 400	≤ 1700(normal)
	Φ 500				Φ500(normal)
	Φ 600
650mm Slitting machine
