| Categories | Stainless Steel Woven Wire Mesh |
|---|---|
| Brand Name: | HANGSHUN |
| Model Number: | 2mesh -635mesh |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 15Rolls |
| Price: | USD3.55~USD6.88 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 108Rolls/Day |
| Delivery Time: | 4-6Days |
| Packaging Details: | In wooden box or as your required |
| Mesh: | 1-3500mesh |
| Material: | 316 Stainless Steel Wire |
| Sample: | Avaliable |
| Weave Style: | Plain Weave |
| Hole shape: | square |
| Packing: | wooden box |
| aperture: | 0.05mm 0.08mm 0.1mm 0.2mm 0.3mm etc |
| Size: | custom for your need |
| Company Info. |
| Honesty & Faith Hardware Products Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Ultra Fine Stainless Steel woven Wire Mesh normal export types:
types Including | 50 micron stainless steel woven wire mesh 80 micron stainless steel screen netting 220 micron stainless steel wire mesh 1000 micron stainless steel filter wire mesh 120 mesh stainless steel filter wire mesh screen 280 mesh stainless steel plain weave wire mesh 325mesh stainless steel wire mesh |
|
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
• ultra high precision of the mesh openings
• high tension
• low elongation
• exceptionally high yield point
• narrow thickness tolerances
• good heat-melting resistance
• abrasive resistance
Ultra Fine Stainless Steel woven Wire Mesh application:
Our work for you:

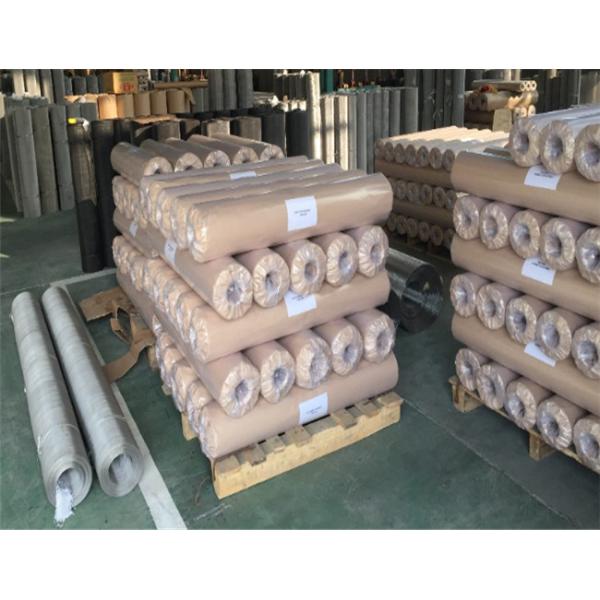

Ultra Fine Stainless Steel woven Wire Mesh product pictures for reference as follows:

|
