Seamless Cold Drawn DIN2391 17mm Precision Steel Tube for Hydraulic System

Seamless Cold Drawn DIN2391 17mm Precision Steel Tube for Hydraulic System

Quality grades
Tubes shall be supplied in the following quality grades:
for precision steel tubes, that do not require an inspection certificate and thus are not subject to special requirements, grade A;
for precision steel tubes subject to special requirements, grade C.
In accordance with the stated demands of the purchaser, such special requirements and the relevant test methods shall

be the subject of agreement.

Main feature

High precision, Excellent brightness, No oxidization on outer and inner walls after heat treatment

High cleanness of inside wall, High pressure, No deformation after clod bending, No crack after flaring and flattening

Type of test or inspection
Tensile test, Flattening test, Drift expanding test, Measurement of surface roughness
Dimensional check, Surface inspection, Leak tightness test, Non-destructive test,

Physis laboratory, Chemical spectrometer, Pressure blasting machine, Metallographic analysis, Salt Spray Test

Delivery Condition: BK(+C), BKW(+LC), BKS(+SR), GBK(+A),NBK( +N)

Quality Control:

1. Incoming Raw Material Inspection

2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects

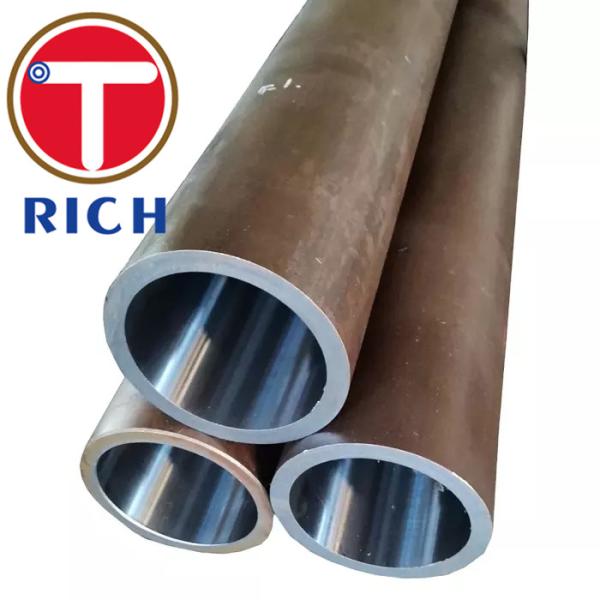

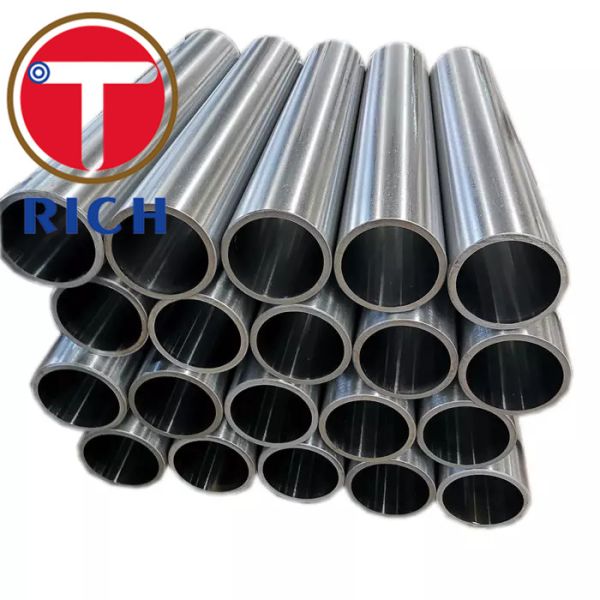

Product Display of Precison Steel Tube for Hydraulic System

Packing & Delivery

Who We are ?

-------A professional steel pipes materials inventor, manufacturer and solution provider
Torich International Limited is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.
Our factory was established since 1997, with the name of TORICH INTERNATIONAL LIMITED. The factories’ technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.

What products we do?

------- Invent and produce various Precision Steel Pipes

Our steel pipes cover the following ranges:
Seamless Precision Steel Pipes

Bearing Steel Tubes
Welded Precision Steel Pipes, with DOM production
Seamless Heat Exchanger Steel Pipe
Seamless Boiler Steel Pipes

Honed Tubes

Hydraulic Cylinder Steel Tubes

Hydraulic Telescopic Cylinder Tubes
Seamless Structural Steel Pipes
Seamless Mechanical Steel Pipes
Seamless Alloy Steel Tubes & Pipes
Seamless Stainless Steel tubes
Welded Stainless Steel Tubes
Seamless Stainless Steel Tubes & Pipes
Welded Stainless Steel Tubes & Pipes
Seamless Carbon Steel Tubes & Pipes
Nickel Alloy Steel Tubes & Pipes

What TORICH do:
1. Producing Steel Tubes
2. Selling both on Domestic and International Market
3. Precisely Targeting Customers’ Requirement- Sourcing the right factory for right products for Customers

Products Application:
Oil Cylinders
Air Cylinder,
Automotive Cylinder Liners
Boilers, Pressure Vessels
Shell & Heat Exchangers
Jack Lifting
Telescopic Systems
Pneumatic Cylinders
Agricultural Machineries

Size range is:
O.D. 4-350mm,
W.T. 0.5-30mm,
Length: according to customer’s requirement and agreement


Steel Grade:
Carbon Steel Grade:
ST35.8, ST37.0, ST44, ST52;
E155, E195, E215, E235, E275, E355;
195GH, P235GH, P265GH, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2;
SAE1010, SAE1020, SAE1026, SAE1035, SAE1045;

Carbon steel tube: SA178, A179, A192, A210, SA213, SA214, etc.
Alloy Steel Grade:
T2, T5, T9, T11, T12, T17, T21, T22, T91,T92, 15Mo3,16Mo3, 13CrMo44;
SAE4130, SAE4140, 40Cr, 40Cr4, 10CrMo910, 12CrMo910, 11CrMo910,
25CrMo4, 35CrMo, 35CrMo4, 42CrMo4, 34CrMo4, 20MnV, 20MnV6,20CrMn;
Carbon steel tube: A179,A192,A210,DIN17175,etc.

Bearing Steel Grades:
GCr15 52100 suj2 suj3 100Cr6 SKF3S SKF3S 20CrNiMo 8620H 4118H;

Nickel Alloy Grade:
N02200/2201, N04400, N06600, N06601, N06625, N06852, N06219, N06690, N08800/8810/8811, N08825, N08028, N08535, N08904, N08925, N08926, N010276, N06022, etc.

Austenitic/Super Austenitic Stainless Steel Grade:
304/304L, 316/316L, 314, 321, 347H, 316Ti, 316LMod, 317L/N, 310S, 253MA, 330, 904L, S31254, XM-19, etc.

Ferrite/Martensite Stainless Steel Grade:
TP410, TP405, TP420, TP430, TP430Ti, TP403, TP409, TP444, TP439, TP446, etc.

Duplex/Super Duplex Stainless Steel Grade:
S31803, S32304, S31500, S32550, S32750, S32760, etc.
