Name: Corrosion Resistance Anti Rust 5005 H34 Aluminum Sheet
Brand: Dongchong
Price: 1 USD

Product Details
Company Profile

Corrosion Resistance Anti Rust 5005 H34 Aluminum Sheet

5005 H34 2mm~6mm Thickness 6mm-2500mm Aluminium Alloy Sheet For Antirust

Product Description

5005 aluminum alloy has medium strength and good corrosion resistance, 5005 aluminum alloy is used as conductor, cooker, instrument panel, Shell and building decoration. 5005 aluminum alloy is similar to 3003 alloy, having medium strength and good corrosion resistance. Aluminum Alloy 5005 is used as conductor, cooker, instrument panel, Shell and building decoration. The anodized film is brighter than that on 3003 alloy and is in harmony with the color of 6063 alloy.

According to different treatment methods, aluminum alloy coil can be divided into Mirror surface aluminum plate, Brushed aluminum plate, Anodized aluminum plate, PE coated aluminum plate, PVDF coated aluminum plate etc.

Aluminium Material Grade

1)1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc

2)2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc

3)3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc

4)5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc

5)6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc

6)7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc

7)8000series aluminium alloy:8011,etc

Chemical Composition

ALLOY	CHEMICAL COMPOSITION (%)
ALLOY	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Other		Al
3003	0.6	0.7	0.05-0.2	1.0-1.5				0.1			0.05	0.15	rest
3004	0.3	0.7	0.25	1.0-1.5	0.8-1.3	__	__	0.25	__	__	0.05	0.15	rest
3104	0.6	0.8	0.05-0.25	0.8-1.4	0.8-1.3	__	__	0.25	0.1	__	0.05	0.15	rest
3105	0.6	0.7	0.3	0.3-0.8	0.2-0.8	0.2	__	0.4	0.1	__	0.05	0.15	rest
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	__	0.1	__	__	0.05	0.15	rest
5A06	≤0.40	0.000～0.400	≤0.10	0.50～0.8	5.8～6.8	__	0.0001～0.005	≤0.20	0.02～0.10	__	0.05	0.1	rest
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.1	__	0.25	__	__	0.05	0.15	rest
5050	0.4	0.7	0.2	0.1	1.1-1.8	0.1	__	0.25	__	__	0.05	0.15	rest
5154	0.25	0.4	0.1	0.1	3.1-3.9	0.15-0.35		0.25	0.2		0.05	0.15	rest
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	__	0.2	0.15	__	0.05	0.15	rest
5454	0.25	0.4	0.1	0.5-1.0	2.4-3.0	0.05-0.2		0.25	0.2		0.05	0.15	rest
5182	0.2	0.35	0.15	0.2-0.5	4.0-5.0	0.1		0.25	0.1		0.05	0.15	rest
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	_	0.25	0.15	__	0.05	0.15	rest
5086	0.4	0.5	0.1	0.2-0.7	3.5-4.5	0.05-0.25		0.25	0.15		0.05	0.15	rest
6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	0.05		0.15	0.1		0.05	0.15	rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	__	0.25	0.15	__	0.05	0.15	rest
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	__	0.1	0.1	__	0.05	0.15	rest

Mechanical properties:

Alloy	Temper	Thickness(mm)	Tensile strength(Mpa)	Yeild strength(Mpa)	Elongation(%)
Alloy	Temper	Thickness(mm)	Min
5005	O H111	＞0.20 — 0. 50	100—145	35	15
		＞0. 50〜1.50			19
		＞1.50 — 3. 00			20
		>3, 00 — 6, 00			22
		>6.0-12.5			24
		>12.5-50
	H12	>0.20 — 0. 50	125-165	95	2
		＞0. 50〜1.50			2
		>1.50 — 3. 00			4
		>3, 00 — 6, 00			5
	H22 H32	>0.20 — 0.50	125 — 165	80	4
		>0. 50〜1. 50			5
		>1. 50 — 3.00			6
		>3.00 — 6.00			8
	H24 H34	>0. 20 — 0.50	145 — 185	110	3
		>0.50—1. 50			4
		>1, 50—3, 00			5
		>3. 00 — 6. 00			6
	H26 H36	>0.20 — 0. 50	165 — 205	135	2
		>0. 50—1.50			3
		>1.50 — 3.00			4
		>3.00 — 4.00			4
	H28 H38	>0. 20 — 0.50	185	160	1
		>0.50 — 1.50			2
		>1.50 — 3.00			3
	H112	>6, 00 —12. 50	115	——	—
		>12. 50 — 40. 00	105		—
		>40.00 — 80. 00	100		—

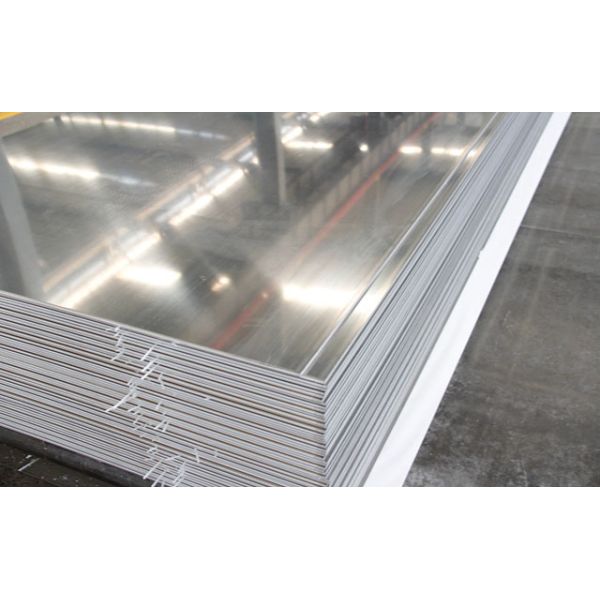

Product Photo

Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine	Uncoil(MM)				Finished size(MM)		Slitting Width(MM)
	ID	OD	Width	Thickness	ID	OD	Above 0.5mm≥ 20mm
	Φ 400	≤ 1800	≤ 1600	0.5-4.5	Φ 400	≤ 1700(normal)
	Φ 500				Φ500(normal)
	Φ 600
Aluminum foil Slitting machine	Uncoil(mm)				Finished size(MM)
	ID	OD	Width	Thickness	ID	OD	Width
	Φ 76	≤ 550	≤ 1200	0.08-0.12	Φ76Φ76	≤ 550(normal)
1450mm Crosscutting machine	Uncoil(MM)				Finished size(MM)
	ID	OD	Width	Thickness	ID	OD	Width
	Φ 505	≤ 1780	≤ 600	0.1-1.5	Φ150 Φ300 Φ400 Φ500	≤ 1700(normal)	6-600
	Φ 605
Annealling Furnace	Furnace Temperature		Furnace Size
	≤440°C		320020002100
Saw Cutting	Thickness(mm)		Width (mm)			Length (mm)
	Size

Product Tags:


*From:	Your email address is incorrect!
*To:	Chongqing Dongchong Aluminum Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Aluminium Alloy Sheet
Brand Name:	Dongchong
Model Number:	5005
Certification:	MSDS,MTC,REACH,ROHS.FDA,SGS,ect
Place of Origin:	Chongqing,Dongchong
MOQ:	500-5000KG for different product
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	10000tons per month
Delivery Time:	5-20 Days
Packaging Details:	Wooden pallet , Wooden Box
Alloy:	5005
Temper:	O,H18,H24,H34,H38,H111,H112,F,H16.H28
Color:	Gold, silver, rose gold, champagne or customized
Usage:	Antirust
Sample:	Free
Size:	Customization
Protection:	Film on one side or both side , paper interleave
Surface:	Brush.checkered and embossed
