| Categories | Optical Fiber Array |
|---|---|
| Brand Name: | Seacent |
| Model Number: | Single mode Simplex |
| Certification: | ISO9001,ROHS |
| Place of Origin: | Guangdong, China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150,000 pieces |
| Delivery Time: | 5-8 work day |
| Price: | Negotiable |

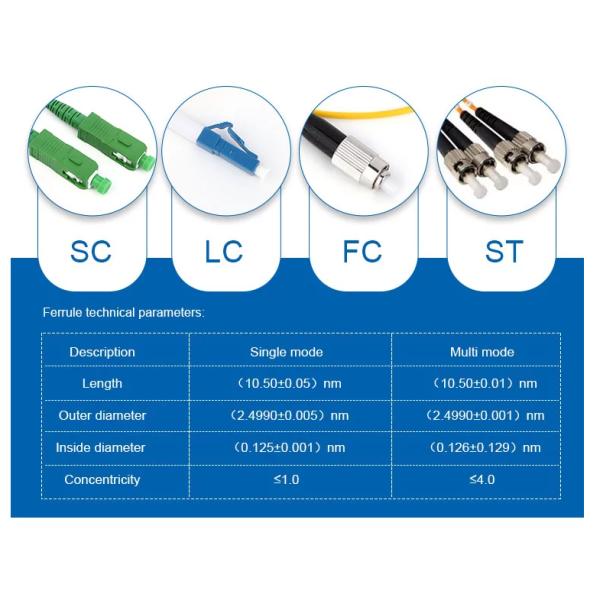

| Connector type: | ST SC LC FC |
| Product name: | Fiber Optic Patch Cord |
| Fiber count: | Simplex or Duplex |
| Ferrule End-face: | UPC, APC |
| Certificate: | ROHS |
| Type: | optical cable jumper |
| Company Info. |
| Shenzhen Seacent Photonics Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
ROHS military tactical SC LC PC ST optical cable jumper
Technical Parameters
| FC,SC,LC | ST,MU | MTRJ | ||||||||||||||||||||
| SM | MM | SM | MM | SM | MM | |||||||||||||||||
| parameter | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | ||||||||||
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | ||||||||||||||||
| Fiber type | G657A1 or customed | |||||||||||||||||||||
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||||||
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ||||||||||
| Repeatability(dB) | ≤0.1 | |||||||||||||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||||||||||||
| Number of plugs(frequency) | ≥1000 | |||||||||||||||||||||
| Tensile strength (N) | ≥70 | |||||||||||||||||||||
| Durability (dB) | ≤0.2 | |||||||||||||||||||||
| Working temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
| Storage temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
product parameters
Features
Application
|
