| Categories | Water Cooled Brushless DC Motor |
|---|---|
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/ISO/ROHS |
| Supply Ability: | 25000pc/month |
| Packaging Details: | with export carton |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Voltage(V): | 60V |
| Output Power: | 500W |
| Usage: | Electric Motorcycle |
| Torque: | 50-200N.m |
| Construction: | Permanent Magnet |
| Protect Feature: | Waterproof |
| Speed(RPM): | 450-500 |
| Axle Configuration: | Double |
| Magnet Height: | 27mm |
| Waterproof Grade: | IP54 |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

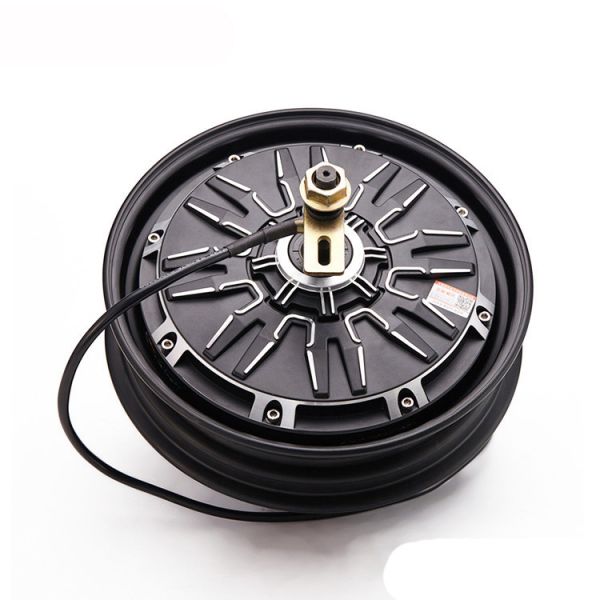

10 Inch Water Cooled Brushless DC Motor
Motor Type | Brushless Direct Current Motor(BLDC Motor) |
Axle Configuration | Double |
Wheel Rim | 10 inch |
Rated Speed | 40km/h |
Voltage | 60V |
Magnet Height | 27mm |
RPM | 450-500 |
Brake System | Drum Brake/Disc Brake |
Hall Sensors | 1/2 |
Hall Sensor Phasing | 120° |
Number of motor phases | 3 |
Max Efficiency | 93% |
Rated Out Power | 500w |
Number of Pole Pairs | 26 |
Cross Section of Phase Wire | 2.5 square |
Waterproof Grade | IP54 |
Color | Black/white etc. |
Package | Carton |
Notice:
Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.
|
