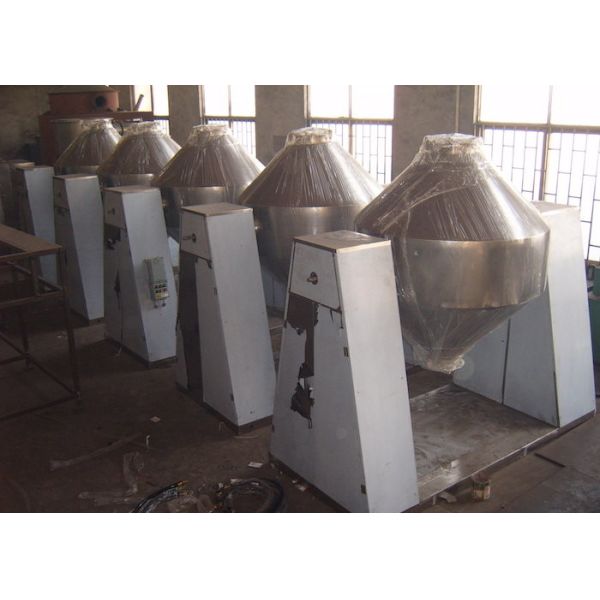

Rotary Cone 500L Vacuum Drying Equipment

SZG-500L steam heater small rota-cone vacuum dryer with sintered filter

Small Rotary Cone Vacuum Drying Equipment SZG-500L Steam Heater With Sintered Filter

Enamel or titanium tank for special matrial can be choosed.

Principle of Working

SZG-500L steam heater small rota-cone vacuum dryer with sintered filter has double cone rotating tank. Under the state of vacuum inside the tank, pass steam or hot water into its jacket for heating. The hot amount can contact with the damp raw material through its inner wall. The vaporized steam when the damp raw material absorbed heat can be pumped out through vacuum exhaust pipe. Because its inner of tank is in the state of vacuum and the raw material is turned over all the time caused by the rotating of tank, the dry speed of raw material is quickened and dry efficiency is raised too and the purpose of uniform dry can be raised.

Application

SZG-500L steam heater small rota-cone vacuum dryer with sintered filter is suitable for

1. Material that cannot undertake high temperature.

2. Material that is easy to oxidize.

3. Material that do not permit to destruct.

4. To recover material with residual volatile.

5. Material with vigorous irrelative and toxicity.

6. Biology products and mine.

7. Dry raw materials of pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and biochemistry at low temp etc.

Technical Parameters

Notes : 1. The above-mentioned parameters are calculated based on material density 0.6g./cm3.if for reference only.

2. For raw material, if its volume has great change before and after dry, then its filling coefficient may be increased or decreased suitably.

3. Speed adjusting motor of 0~6rpm for optional according to user’s requirement.

The following aspects should be point when order

If certificate for pressure vessel is requirement, please point out.

if glass lining for interior surface is requirement, please point out.

If the material is explosive, or flammable, the calculation should be made according to trial result.1. If material has larger specific weight, it shall be noted upon placing the order.
