| Categories | Industrial Powder Mixer Equipment |
|---|---|
| Brand Name: | YIGAN |
| Model Number: | VH |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiation |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 20 working days after received your payment |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| product name: | industrial powder mixer/blending machine |
| feature: | high efficient |
| application: | dry powder |
| mixing mode: | rotating |
| speed control: | by transducer |
| special design: | liquid feeding |

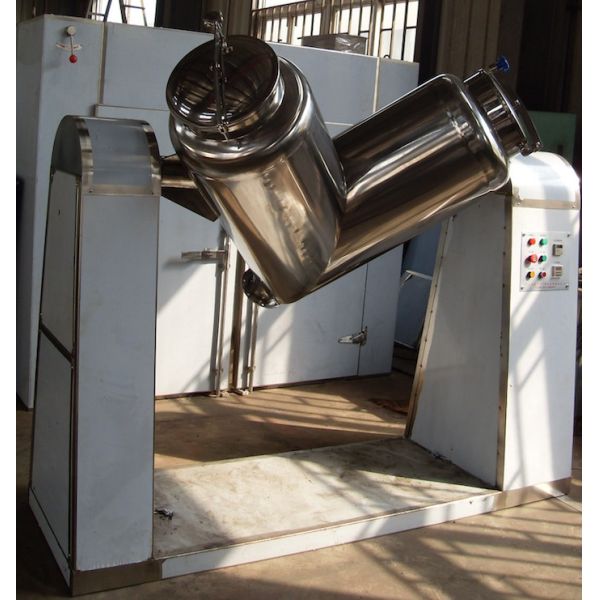

VH-1000L industrial high efficient dry powder blending machine
Description
The V shape mixer machine is suitable for two or more materials in dry powder or granule shape of pharmaceutical, chemical, foodstuff industry etc. The structure of V type mixer machine is unique, the mix efficiency is high and there is no hidden corner. Its inner wall and out wall are both polished and the appearance is good-look.
Application
VH-1000L industrial high efficient dry powder blending machine is suitable for many industries such as pharmaceutical industry,chemical industry, metallurgy industry,foodstuff industry, scientific research. It can mix power and granule raw materials having good fluidity and make the mixed raw materials reach the best mixing state.
Features
VH-1000L industrial high efficient dry powder blending machine has the features of the special construction, high effect, no dead angle, uniform mixture. The machine can also increase to blend the function compulsorily. It can mix thin powder and more than two form powders including the materials that contain water. It can get the good result of admixture (meaning that little admixture additives).
Technical Parameters
| Model | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Product capacity (kg/h) | 72 | 120 | 200 | 400 | 600 | 80 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| To tal volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Speed of stirring (rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 1 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
Note:all loading coefficient is usually 0.4~0.6.The capacity listed above is based on loading coefficient 0.5 and specific gravity of raw material 0.8g/cm3
|
