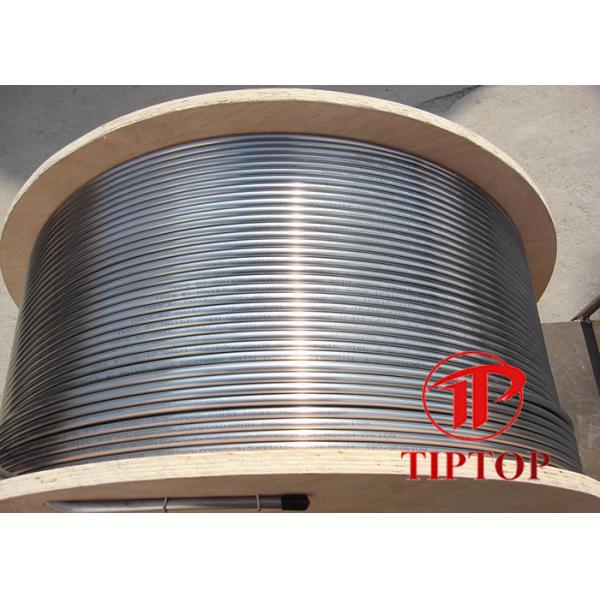

1/8 304L SSSV Ss Stainless Steel Coiled Tubing

1 / 8 * 0.035 304L Stainless Steel Coiled Control Line Tube for SSSV

We are specialized in the production and supply of coiled tubing, capillary tubes, corrosive resistant alloy (CRA) coiled tubing, hydraulic control tubing, hydraulic control lines, tubing encapsulated cables, chemical injection lines, pre insulated tubes, multi core tube bundles, umbilical cable, and cable-alloy pipes. The products are widely used in petroleum, chemical, natural gas, shipbuilding, environmental protection and other industries, especially from standard well-workover and velocity/production strings for logging, drilling and special application strings with factory-installed wire-line, capillary tubes to integral tools. Our tubing in lengths suitable for the most challenging downhole environments.

Control line tubing can be manufactured in lengths including orbital joints up to 15,000m (50,000ft) and is typically in diameters from 1/8" to 1” OD and is used for:

ety critical hydraulic control of sub surface ety valves

Subsea control lines

Downhole control and monitoring in intelligent well completions

Chemical injection using acids, surfactants and methanol

Coiled control line tubing is also used in onshore or topside hydraulic and instrumentation systems where the longer coils result in fewer connections and can increase the integrity of the overall system.

Size Chart:

Hydrostatic test for each coil and conform to ASTM standards and requested specifications.

The specification and length per coil can be customized according to customer’s requirements.

We manufacture seam welded and redrawn, seam welded and floating plug redrawn and seamless tube products. The standard grades are 316L, alloy 825 and alloy 625. Other grades of stainless steel in duplex and superduplex and nickel alloy are available on request. Tubing can be supplied in the annealed or cold worked condition.
• Welded and drawn tubing.
• Welded and floating plug drawn tubing.
• Diameter from 3mm (0.118”) to 25.4mm (1.00”) OD.
• Wall thickness from 0.5mm (0.020”) to 3mm (0.118”).
• OD tolerance +/- 0.005” (0.13mm) and +/- 10% wall thickness.
Other tolerances are available on request.
• Coil lengths up to 1500m (5,000ft) without orbital joints depending on product dimensions.
• Coil lengths up to 13,500m (45,000ft) with orbital joints.
• Encapsulated, PVC coated or bare line tubing.
• Available on wooden or steel drums.

With the leading direction of producing High pressure extra long stainless steel control line tube(stainless steel coiled tubes), TIPTOP has become a high-tech industrial company integrating domestic research and development, production and sales. The company successfully developed a series of stainless steel testing cables in 2000. In recent years, the company has been committed to the research and development of duplex steel and nickel alloy control lines, and has been widely approved in the international market.

The company covers an area of 20,000 square meters and a building area of 12,000 square meters. The company has several stainless steel tube production lines, tube making units, tube drawing units, well-type electric furnaces, online vacuum light furnaces and other production equipment. The company also has a quality inspection center that meets the national stainless steel tube quality inspection requirements. The quality inspection center has a 300Mpa hydraulic test machine, tensile test bench, Vickers hardness tester, 500°C temperature resistance test furnace, eddy current flaw detector and a series of stainless steel products. Testing and inspection equipment to ensure the reliability and stability of the chemical and physical properties of stainless steel products.　

The company annually produces more than 3,000 tons of stainless steel control lines and other products, sales marked covers both domestic and overseas, for domestic, we are network-enterprise company of CNOOC, Petro China and Sinopec, as for international,it has been widely used in Middle East, Southeast Asia, South America, Australia and so on.　

On the premise of improving the quality of its own brand products, the company has continuously increased the research and development of new products, and has cooperated and actively invested with many domestic universities and scientific research institutions. In recent years, the company has passed the certifications of CCS, GL, DNV and other classification societies.

With our support,you will have:

1. Technical data, technical guidance and training for free
2. Professional engineer to the site for tracking service
3. "just-in-time supply"(that is, supply at any time according to the actual demand of customer), in this way customers achieve zero inventory, maximize profits.
4. Most favorable offer,we take "taking small profits" as the principle.
5. 100% qualified product,Our company will strictly follow the requirements of relevant technical standards , grasp various links of production, and ensure product performance .
6. sufficient after sales services.

We are looking forward to developing business with friends from home and abroad on the basis of equality and mutual benefits!welcoming your enquiries!
