| Categories | Waterproof Male Female Connector |
|---|---|
| Brand Name: | Bett |
| Model Number: | M15 |
| Certification: | CCC,CE,ROHS,IP |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C,PayPal, Western Union |
| Supply Ability: | 1000000sets/week |
| Delivery Time: | 3-7 Work days |
| Packaging Details: | Standard export carton |
| Rated voltage: | 110V-240V |
| Grounding: | Standard Grounding |
| Rated current: | 2-8A |
| Material: | PVC |
| Type: | Adapter |
| Application: | Power,Automotive,Audio & Video,LED street light |
| Company Info. |
| Shenzhen Bett Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

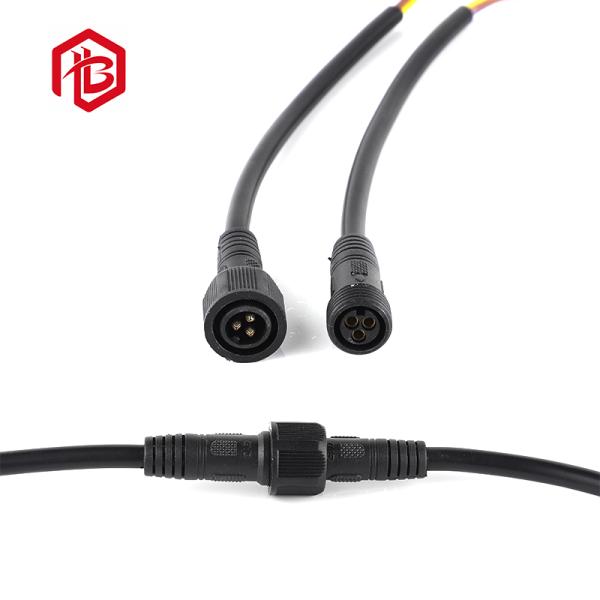

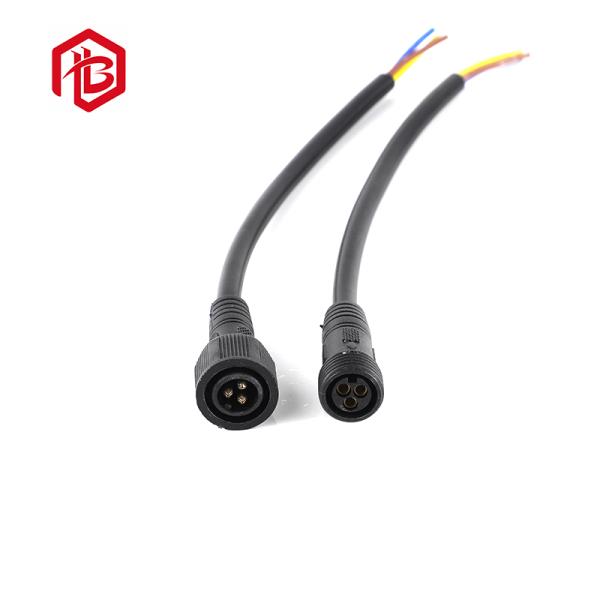

LED stage lighting Waterproof Male Female 2-4Pin PVC Black/White Connector
Detailed Product Description
| Protection Level: | IP68 | Material: | PVC |
|---|---|---|---|
| Pin: | 2 to 4pin | Current Rating: | 2-8A |
| Model: | M15 | Voltage Rating: | 300V |
The feature of 4 pin outdoor waterproof male female connector IP68
| Place of Origin | Guangdong, China (Mainland) |
| Model Number | M15 series |
| Application | Power, LED, Electrical equipment |
| Protection Level | IP68 |
| Connector type | Screw locking |
| Number of contact | 2 pin/3 pin/4/pin |
| Current rating | 8A |
| Voltage rating | 300V |
| Contact diameter*number | ∅1.5 |
| Withstanding voltage | 1500V |
| Cable gauge | 24-16AWG |
| Flame-resistance rating | UL94-V0 |
| Warranty | 3 years |
| Durability | 3000 times plug/unplug |
Main characteristics
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types
waterproof connector cable.Most of our connector is customized.We
foucs on LED Waterproof connector,Assembly waterproof
connector,Over-mold waterproof connector,T waterproof connector,Y
customized waterproof connector.
2.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
| Brand | Bett |
| scope of application | the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on |
| Types | waterproof plug/waterproof connectors/waterproof connectors/Multi-split waterproof plug/nylon waterproof plug/fabricated waterproof plug |
| Interface type | AC/DC |
| Shape | round/flat look |
| Process | stamping/welding/injection molding |
| Feature | waterproof |
| Contact material | pure phosphor copper |
| Joint material | PVC/PBT/PA66 / PC + ABS |
| Some conclusions | 2-4core |
| Pin number | 2-4 needle |
| line length | any (mm) |
| Form | socket, plug stamping or injection after welding |
| Rated voltage | 24 V DC 0 (AC 110 V, 110 V) |
| Current rating | 1-10A |
| Breakdown voltage | 1500 V or higher (special require should be mentioned in advance) |
| Working temperature | - 20 ~ +80 ° C |
| Protection grade | IP65 - IP68 (other requirement. When ordering, please put forward) |
| Wire materials | PVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line |
| Certification | can according to customer's requirements with CCC, VDE, UL, ROHS, SGS, etc all kinds of wire |
| Appearance color | black, white, transparent, etc |
| Normal product | joint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products |
| Some conclusions | 2-4pin |
| Cable inside section | 0.5 square (normal) |
| Cable length | any long can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit |
|
