| Categories | Aircraft Tow Tractor |
|---|---|
| Brand Name: | TECHKING |
| Model Number: | TK-QY120C |
| Certification: | CCC |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | By negociation |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10 Units/Month |
| Delivery Time: | 120 days |
| Packaging Details: | Nude Pack, Loaded in Flat Rack Container or Shipped by R&R |
| keywords: | Airport Tow Tractor |
| Towing Capacity: | 120T |
| Gross Vehicle Weight: | 12T |
| Maximum Speed: | 30km/h |
| Wheel Base: | 2150 mm |
| Dimensions: | 5780*2200*1880 mm |
| Company Info. |
| chongqing dima industry co.,ltd |
| View Contact Details |
| Product List |

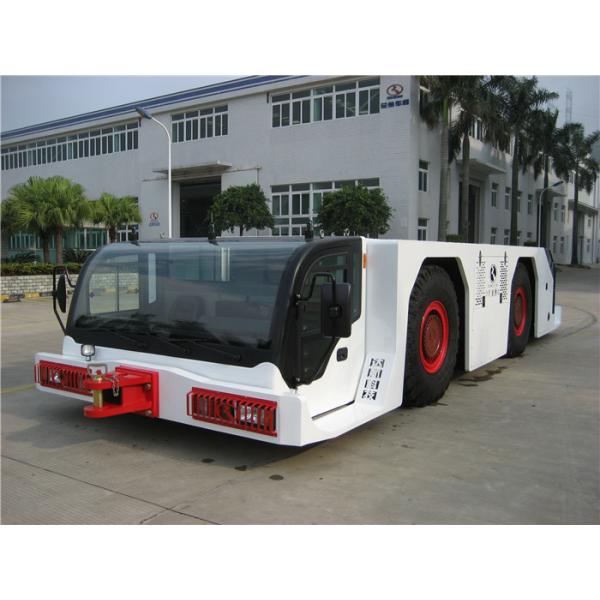

Description:
The TK-QY120C aircraft tow tractor is in full compliance with CAAC and international standards, such as, IATA AHM 905, IATA AHM 910, IATA AHM 913, IATA AHM915, IATAAHM 916, IATA AHM 955,MH/T6017 etc.
Specifications:
| Dimensions | Performance | ||
| Overall Dimensions | 5780*2200*1880 mm | Tow Bar Pull | 120 KN |
| Wheel Base | 2150 mm | Towing Capacity | 120 T |
| Front/Rear AxleTread | 1850 mm | Gross Vehicle Weight | 12 T |
| Ground Clearance | 160 mm | Maximum Speed | 30 km/hr |
| Turning Radius | 5500 mm | ||
| Front Hook Ground Clearance | 330 mm | ||
| Front Hook Ground Clearance | 300 mm |
Applicable Aircraft:
Most major single-aisle aircraft such as A300-600, A310-200, A310-300, A321, A318, A319, A320, A330-200, A330-300, B717, B737, B757, DC10, DC11, TU154, TU204, and MD90 etc.
Highlights:
Powerful and reliable powertrain, consisting of Deutz Engine, Dana Transmission, Dana Axle, etc, ensuring durable and reliable performance.
Independent dual circuit braking system to ensure a safety operation.
Seperate independent heat disspator for engine, transmission, AC, hydraulic system and radiator to avoid overheat.
Compact design, low gravity center and short wheelbase facilitating an easy and flexible operation.
Centralized automatic lubricating system, lubricating all greasing points automatically.
Equipped with emergency stop to stop all actions immediately to prevent accidents.
4 wheels steering, 2 wheels steering, crab walk.
Easily observable hitches fn. An adjustable reflector and a hitch light are equipped to facilitating rear hitch observation.
Equipped with jack point, to facilitate wheel replacing and maintenance.
|
