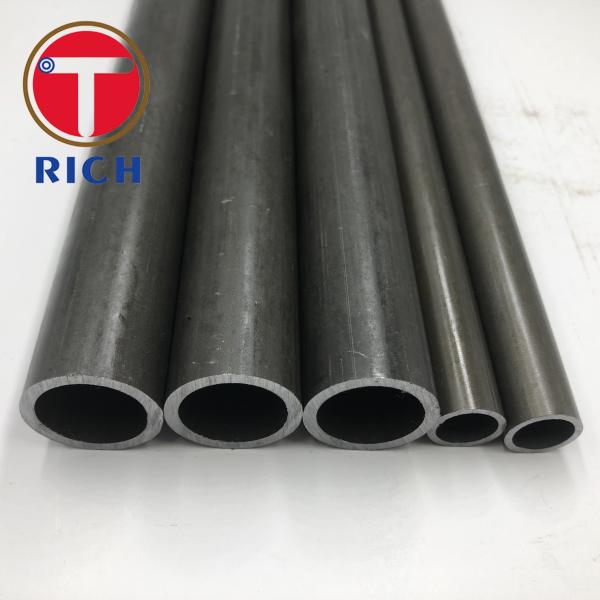

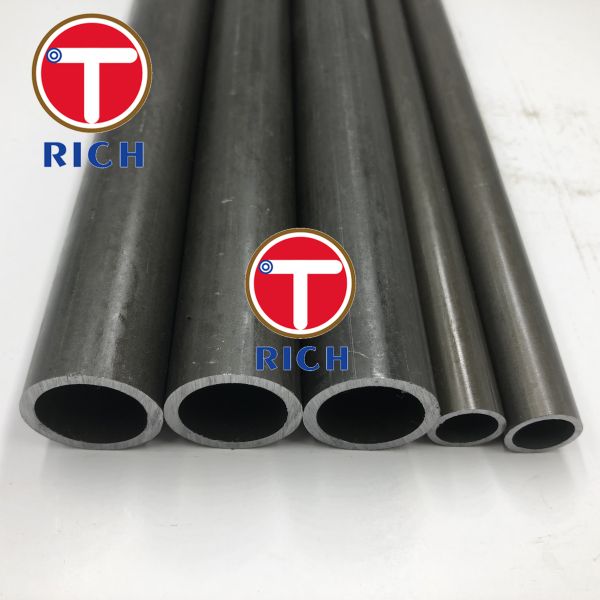

Hydraulic Cold Drawn Thick Wall E355 Precision Steel Tube

Thick Wall Stainless Steel Tube E355 Steel Tube High Precision Steel Tube

Steel Grade and Chemical Compositions of cold drawn precision steel tube :

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Application : Hydraulic tubes.

Material: E235 St35 St45 St52 E355

Standard : DIN 2391 EN10305-1

Surface treatment: Galvanizing, to protect material from rust.

Steel Grade and Chemical Compositions according to En 10305-1 high precision seamless steel pipe:

Steel Grade		C	Si	Mn	P	S	Al
Steel Name	Steel Number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.025	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.025	0.025	-
E355	1.0580	0.22	0.55	1.60	0.025	0.025	-

Steel Grade and Chemical Compositions according to DIN 2391 EN10305 E355 Precision Steel Tube:

Steel grade	C max	Si max	Mn max	P max	S max
St 35	0.17	0.35	0.4	0.025	0.025
St 45	0.21	0.35	0.4	0.025	0.025
St 52	0.22	0.55	1.6	0.025	0.025

OD : 4- 20mm

WT :0.5-10 mm

Main size list of precision cold drawn steel tube :

Outside Diameter	Wall Thickness Imperial	Wall Thickness Metric
6.35mm / 0.250″	20swg	0.90mm
6.35mm / 0.250″	18swg	1.20mm
6.35mm / 0.250″	16swg	1.60mm
6.35mm / 0.250″	14swg	2.03mm
7.94mm / 0.313″	20swg	0.90mm
7.94mm / 0.313″	18swg	1.20mm
7.94mm / 0.313″	16swg	1.60mm
7.94mm / 0.313″	14swg	2.03mm
9.53mm / 0.375″	20swg	0.90mm
9.53mm / 0.375″	18swg	1.20mm
9.53mm / 0.375″	16swg	1.60mm
9.53mm / 0.375″	14swg	2.03mm
9.53mm / 0.375″	12swg	2.64mm
9.53mm / 0.375″	11swg	2.95mm
9.53mm / 0.375″	10swg	3.20mm
11.11mm / 0.437″	20swg	0.90mm
11.11mm / 0.437″	18swg	1.20mm
11.11mm / 0.437″	16swg	1.60mm
11.11mm / 0.437″	14swg	2.03mm
11.11mm / 0.437″	12swg	2.64mm
11.11mm / 0.437″	11swg	2.95mm
11.11mm / 0.437″	10swg	3.20mm
12.70mm / 0.500″	20swg	0.90mm
12.70mm / 0.500″	18swg	1.20mm
12.70mm / 0.500″	16swg	1.60mm

Characteristic of precision cold drawn steel tube:

1. Bright annealing treatment on steel tubes, have a clean in side and out size diameter,Besides, what is suitable for bending any angle for your produce your production.

2. Galvanizing on tubes can bear the Salt spray test above 72 hours.

3. Steel tubes produce by cold drawn and cold rolled many times ,With a good tolerance on OD and WT.

4.The inner and outer walls of the steel pipe have no oxide layer.

5.withstand high pressure, no leakage, high precision.

6high brightness.

7.no deformation after cold bending, no cracks in flaring, flattening.

8.anti-rust treatment on the surface, and its mechanical performance is excellent.
