768x768mm Cabinet 1920Hz P3.91 Indoor Rental LED Screen

Die-casting aluminum cabinet p3.91 led video wall panel screen indoor led display details

Features

High refresh rate , 3840Hz , free-flicker in camera

High contrast , 4500:1 ,perfect color uniform , great visual effect

Light weight 12kg per panel , aluminum die casting cabinet

Self-cooling system , no need fan , noiseless

Extremity flat , no gap between panel after installation .

One person fast installation design , help to save labor cost

One for all application indoor & outdoor , fixed & rental

1, Module specification
No	Item		Parameter		Photo
1	Pixel pitch		3.91MM
2	Module size		250*250MM
3	Module weight		0.3kg
4	LED Type		SMD 3 in 1
5	Pixel Config		1R1G1B
6	Total Pixels		64*32Pixel
7	Brightness		≥1,200cd/㎡
8	Drive mode		1/16 scan,constant current
9	View angle		160°/140°
10	Application		Indoor
2,Cabinet specification
No	Item		Parameter		Photo
1	Pixel density		62,500.00dots/㎡
2	Cabinet size		768x768mm
3	Max power consumption		600W/㎡
4	Average power consumption		200W/㎡
5	Weight		30kg
6	Input voltage		AC110/220V
7	Cabinet material		Coated Steel
8	Lock		Yes
9	Connectors		Yes
10	Stand supporter		No
11	Power supply brand		G-energy
12	IC		CHIP2038
3,Screen specification
No	Item		Parameter		Photo
1	Best viewing distance		>3m
2	Operation temp		-20℃~60℃
3	Operation Humidity		10%～90%
4	Control PC		Offered by yourself
5	Refresh rate		≥480Hz or ≤4000Hz
6	Frame rate		60 frame/s
7	Gray scale		>8192grade
8	Colors of display		1.07 billion
9	Brightness adjustment		Brightness adjustment by software
10	Video Signal		PAL/NTSC
11	MTBF		>5,000 hours
12	Life span		>100,000 hours
13	Drive mode		static, constant current
14	Operation system		Windows Series
15	Display function file formats		AVI, MOV, MPG, DAT, VOB
16	Information source		Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, RGB, VGA, and so on.

Project case

Suit for advertisement , stadium , exhibition , TV-Show , mansion , video wall , shopping mall , banks

, schools, bus station , airport , gym , market , factoties , monitoring centers, hospital , bar etc.

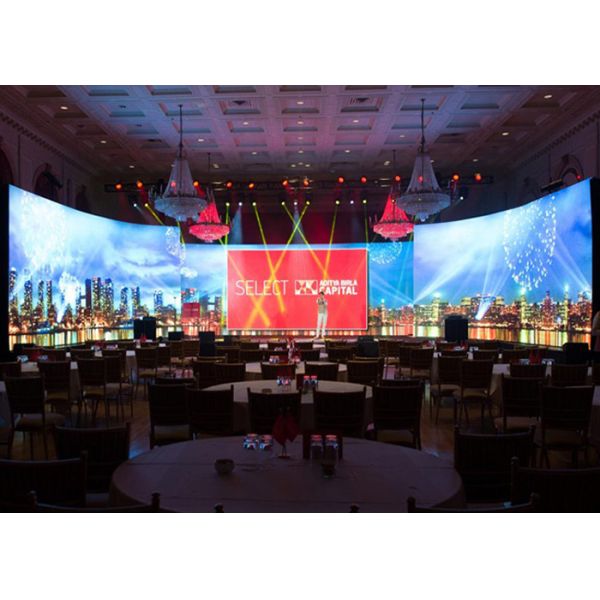

1. Video display for advertisement

2. Live broadcast for news , sports , concert

3. Stage background

4. Information display for time , schedule , text.
