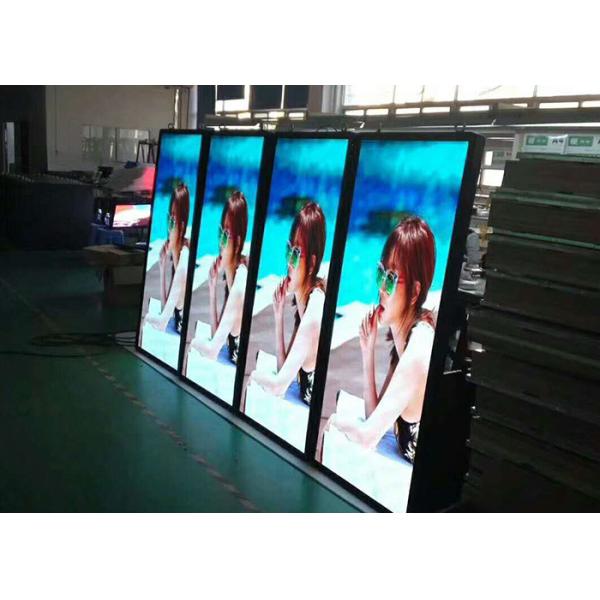

P5 LED Advertising Billboard

Traffic Guidance LED Screen 5mm Lamp Pole LED Sign Advertising Billboard Display

FAQ

Technical Parameter for P5 OUTDOOR LED SIGNBOARD DISPLAY
Module Specifications
1	Pixel Pitch	5mm		Outdoor LED screen project cases:
2	Led Type	SMD2525
3	Pixel configuration	1R1G1B
4	Module Size	320x160mm
5	Module Resolution	64x32pixels
6	LED Chip	Epistar
7	LED brand	Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1	Cabinet Size	960x1600mm
2	Cabinet Resolution	192x320 pixels
3	Module Qty.	3x10pcs
4	Power Supply	5V40A 200W/ 5V60A 300W
6	Cabinet Materials	iron cabinet
Screen Parameters
1	Pixel density	40000dots/㎡
2	Screen Resolution	according to screen size
3	Cabinet Qty.	according to screen size
4	Brightness	≥6500 CD/sqm
5	Refresh rate	≥1920Hz/s
6	Scanning Mode	1/8 scan
7	Viewing Angle	H:140°;V:140°
8	Viewing Distance	≥5m
9	Gray Level	16 Bit
10	Power Input	AC110~240V
11	Power Comsuption	Max: 1000W/㎡ Average:300W/㎡
12	MTBF--hours	>10,000 hours
13	Life--hours	≥100,000 hours
14	IP Grade	IP65/IP54
15	Operating Temperature	-35℃~ 65℃
16	Storage Humidity	10℃~90℃RH
17	Control Syetem	Colorlight/Nova/Linsn
18	Operating System	Windows98/me/2000 /NT/XP
19	Power Supply	5V40A 200W/5V60A 300W
20	Maintance Access	Back service/Front service
21	Control mode	computer /USB/WIFI/4G

HS code: 8528591090

Regular plywood package:

Connection diagram of computer control mode :

Remote control mode(computer,smartphone,iPad)
