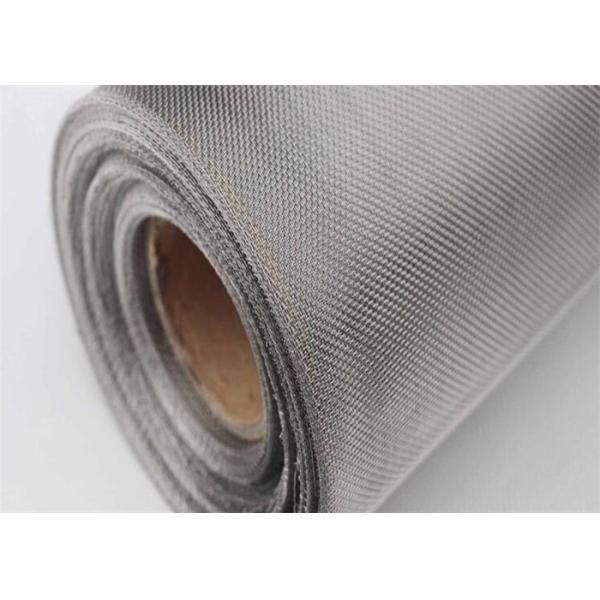

SS Ultra Fine Oil Filter Woven Stainless Steel Wire Mesh
Product Description of Stainless Steel Wire Mesh Filter
Stainless steel is selected for their wear-resisting,
heat-resisting, acid-resisting and corrosion resisting
characteristics. Many different grades of stainless are used in
wire cloth.T304 is the most common, but other are used in specific
applications to take advantage of each grade's unique properties.
The wire mesh made of stainless steel is extensively used in mining
, chemical industry, food industry and pharmaceutical industry.
Material List
Mest count | plain weave can be woven from 1- 400 mesh twill weave can be woven from 2- 635 mesh dutch wevae can be woven up to 500*3500 mesh |
| Hole shape | square hole |
| Wire diameter | 0.018-2.03mm |
| Stock size | 1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized. |
| Customzied | Other sizes can be customzied as per your requiremnts |
| Sample | A4 size sample can be provided. |
| Quality Reports | PMI testing video & reports will be provided, to accurance 100% good quality... |
| Stainless Steel Wire Mesh | ||||||
| Mesh/inch | Wire Diameter (mm) | Aperture (mm) | Mesh/inch | Wire diameter (mm) | Aperture (mm) | |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
| Width of Stainless Steel Wire Mesh: 0.6m-8m | ||||||
Weave Style:
Plain Weave ,Twill Weave,Dutch Weave,etc.
Application of Stainless Steel Wire Mesh Filter
Petroleum, petrochemical equipment, such as the reactor of petrochemical equipment.
Sulfuric acid storage and transportation equipment, such as heat exchangers;
Power plant flue gas desulfurization device, main parts are: absorption tower body, the flue, door plank, internal parts, spray system, etc;
Scrubber and fan in the organic acid processing system;
Water treatment plant, water heat exchanger, papermaking equipment, sulfuric acid, nitric acid equipment, acid, pharmaceutical industry and other chemical equipment, pressure vessel, food equipment;Pharmaceutical factory: centrifuge, reactor, etc.
Features of Stainless Steel Wire Mesh Filter

Product Show of Stainless Steel Wire Mesh Filter

|
