| Categories | Mobile Crushing Plants |
|---|---|
| Brand Name: | SANME |
| Model Number: | MP-PH10, MP-PH14 |
| Certification: | ISO&CE |
| Place of Origin: | Shanghai, China |
| MOQ: | Negotiate |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 sets per Month |
| Delivery Time: | 2 months |
| Packaging Details: | Standard container, spare parts will be packed in wooden cases |
| Capacity(t/h): | 250-480t/h |
| Application: | Construction waste, mine, mining, sand and cement companies. |

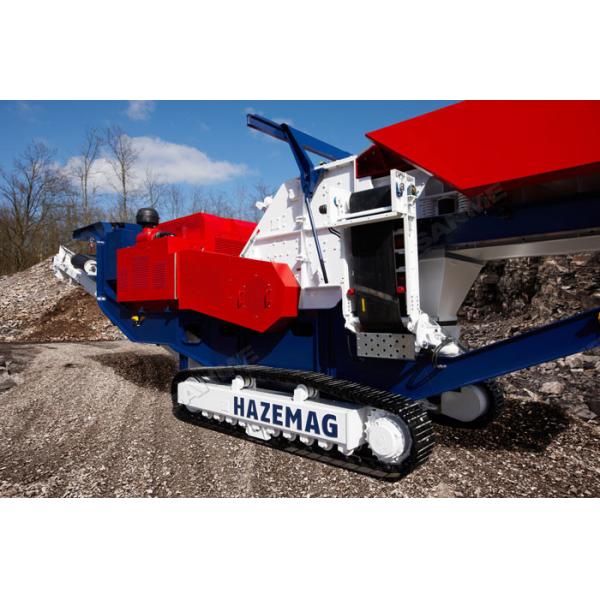

| Product name: | Hard Stone Rock Mobile Impact Crusher |
| MAX FEEDING SIZE: | 810mm-1360mm |
| Warranty of core components:: | 1 Year |
| Core Components:: | PLC, Gear, Motor, Engine, Bearing, Pump |
1. Primary crushing, intermediate crushing and fine crushing in various medium hardness crushing processes;
2. Rock fragmentation in various mines;
3. Utilization of solid waste resources, such as house demolition, crushing of road concrete recycling;
4. Aggregate crushing in asphalt and concrete mixing station;
5. Material crushing in other industries
| Model | MP-PH 10 | MP-PH 14 |
| Impact crusher | AP-PH-A 1010 | AP-PH-A 1414 |
| Feed opening size(mm×mm) | 810×1030 | 1025×1360 |
| Max feed size(m3) | 0.3 | 0.5 |
| Max edge length in one direction(mm) | 800 | 1000 |
| Crushing capacity(t/h) | up to 250 | up to 480 |
| Drive | diesel-direct | diesel-direct |
| Driving Unit | ||
| Engine | CAT C9 | CAT C18 |
| Performance (kw) | 242 | 470 |
| Feed hopper | ||
| Hopper volume(m3) | 4.8 | 8.5 |
| Grizzly feeder with pre-screening(two-deck) | ||
| Drive | hydraulic | hydraulic |
| Main conveyor belt | ||
| Discharge height(mm) | 3100 | 3500 |
| Drive | hydraulic | hydraulic |
| Side conveyor belt (option) | ||
| Discharge Height(mm) | 1900 | 3500 |
| Drive | hydraulic | hydraulic |
| For transportation the head-piece can be folded | ||
| Crawler unit | ||
| Drive | hydraulic | hydraulic |
| Permanent magnetic separator | ||
| Magnetic separator | option | option |
| Dimensions and weight | ||
| Working dimensions | ||
| -length (mm) | 14600 | 18000 |
| -width (mm) | 4500 | 6000 |
| -height (mm) | 4200 | 4800 |
| Transport dimensions | ||
| - length (mm) | 13300 | 17000 |
| - width (mm) | 3350 | 3730 |
| - height (mm) | 3776 | 4000 |
| Approx weight (t) | 43 | 70 |
Note: Capacity is total tons per hour passing through crusher at open circuit when bulk density of feeding is 1.6t/m³. Capacities are relative to physics character and type of feeding, feeding size and composition.
|
