Copper XLPE Insulated Power Cable

Categories XLPE Insulated Power Cable
Brand Name: SHANCABLE
Model Number: YJV
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: CHINA
MOQ: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Delivery Time: 15 work days
Packaging Details: Wooden case
Price: Negotiable
Standard: GB/T 12706.1-2008、GB/T 19666-2005
Color: Black
Voltage: AC 50Hz
Rated Voltage: 0.6/1kV
Operating Temperature: ≤90℃
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

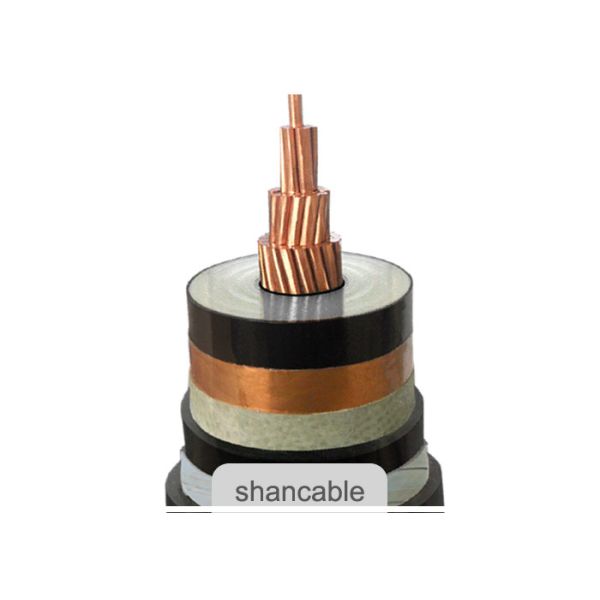

Copper XLPE Insulated Power Cable

Description:

6/10kv XLPE Insulated cables
CU/XLPE/ PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black


Note: Insulation color as per standards or customer requirement

Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request

Technical Specifications

Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessSheath ThicknessApprox. O.D.Approx.
Weight
Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
mm2pc/mmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
1 × 257/2.143.4220.05980.72721140150
1 × 357/2.523.4222.07190.52421175180
1 × 5010/2.523.4223.08840.38721205215
1 × 7014/2.523.4224.010970.26821260265
1 × 9519/2.523.4226.013780.19321315315
1 × 12024/2.523.4228.016580.15321365360
1 × 15030/2.523.4230.019670.12421415405
1 × 18537/2.523.4231.023350.099121475455
1 × 24048/2.523.4234.029080.075421565530
1 × 30061/2.523.4236.035070.060121645595
1 × 40061/2.973.42.539.045030.047021750680
1 × 50061/3.233.42.542.054790.036621865765
1 × 63061/3.503.42.548.069520.028321990860
1 × 80091/3.203.42.652.071200.0221211140950
1 × 100091/3.753.42.857.0105000.01762112501040
3 × 257/2.143.42.341.08950.72721120125
3 × 357/2.523.42.444.022930.52421145155
3 × 5010/2.523.42.546.028120.38721175180
3 × 7014/2.523.42.650.035080.26821220220
3 × 9519/2.523.42.753.044020.19321265265
3 × 12024/2.523.42.856.053190.15321305300
3 × 15030/2.523.42.959.063090.12421350340
3 × 18537/2.523.43.062.073190.099121395380
3 × 24048/2.523.43.268.092180.075421470435
3 × 30061/2.523.43.472.0111590.060121535485
3 × 40061/2.973.43.681.0151070.047021610520

The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
