| Categories | Sand Dryer Machine |
|---|---|
| Brand Name: | MG |
| Model Number: | MGS |
| Certification: | CE ISO,ISO9001,ISO/CE/BV |
| Place of Origin: | Zhengzhou City, Henan Province, China |
| MOQ: | 20-25 working days after receiving the advance payment. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per month |
| Delivery Time: | 25-30 working days after receiving the balanced payment. |
| Packaging Details: | Wooden box packaging and bubble wrap packaging. |
| Type: | Rotary Drying Equipment |
| Capacity: | 3-25t/h |
| Application: | Slag, limestone, coal ash, clay drying |
| Heating source: | wood, coal, gas |
| Voltage: | 220V, 380V or Customized |
| Power: | 45-100kw |
| Size: | about 4*2500 mm |
| Warranty: | 1 Year after loading |
| After-sales service provided: | Engineers available to service machinery overseas |
| Weight: | 4T-110T |
| Company Info. |
| Zhengzhou MG Industrial Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Factory New Technology Carbon Steel Three Cylinder Rotary Sand Drum Dryers
Brief Introduction of Three Cylinder Rotary Sand Dryers:
MG Three-cylinder Rotary Dryer is composed of three concentric cylinders with different diameters. The special three-cylinder structure makes the inner cylinder and the middle cylinder surrounded by the outer cylinder to form an own thermal insulation system. The heat emitted from the surface of the inner cylinder and the middle cylinder is involved in the heat exchange of the materials in the outer cylinder, and the outer cylinder is at the low temperature end of the hot gas flow, so the heat dissipation area and heat loss of the cylinder are significantly reduced. Energy-saving three-cylinder dryer can make full use of waste heat, reduce heat loss, increase the heat exchange area.
Flow Chart of Three Cylinder Rotary Sand Dryers:
Application of Three Cylinder Rotary Sand Dryers:
MG dryer is mainly used for drying river sand, yellow sand, silica sand, limestone, quartz sand, mechanism sand and various specifications of sand, slag, coal ash, clay and so on.
Damp and sticky material: Coal slime, sewage sludge, bentonite,
Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung,
slag etc.
Biomass material: Sawdust, wood chips etc.
Technical Parameters of Three Cylinder Rotary Sand Dryers:
| Type of Three Pass Dryer | MGS623 | MGS625 | MGS6210 | MGS6220 |
| Drying capacity | 3-5t/h | 6-8t/h | 10-15t/h | 20-25t/h |
| Length | 2200mm | 2500mm | 2700mm | 5000mm |
| Diameter of drum | 1750mm | 2200mm | 2600mm | 2600mm |
| Motor powder | 4kw | 5.5kw | 7.5kw*1 | 7.5kw*2 |
| Reducer model | XWD-5 | XWD-5 | ZQ350 | ZQ350*2 |
| Speed of drum rotation | 4-10r/min | 4-10r/min | 4-10r/min | 4-10r/min |
| Moisture of end products | <1% | <1% | <1% | <1% |
| Max.temperature inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Outlet temperature | 60-80℃ | 60-80℃ | 60-80℃ | 60-80℃ |

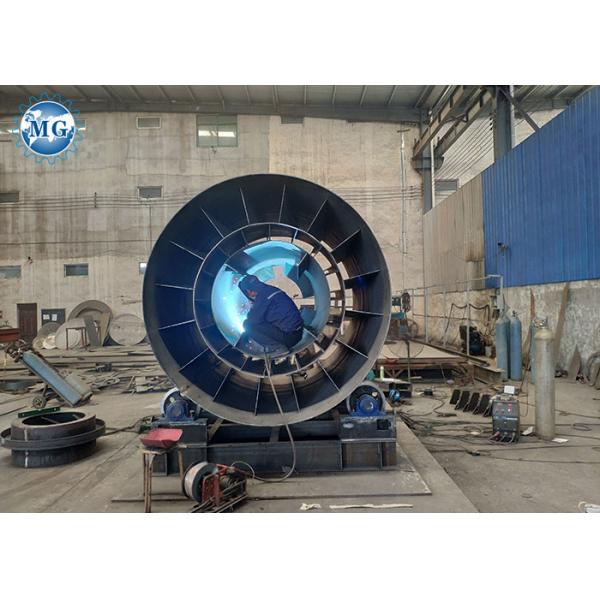

Factory manufacture site and stock of Three Cylinder Rotary Sand Dryers:
Machine loading of Three Cylinder Rotary Sand Dryers:
Company information:
Welcome your inquiry!
|
