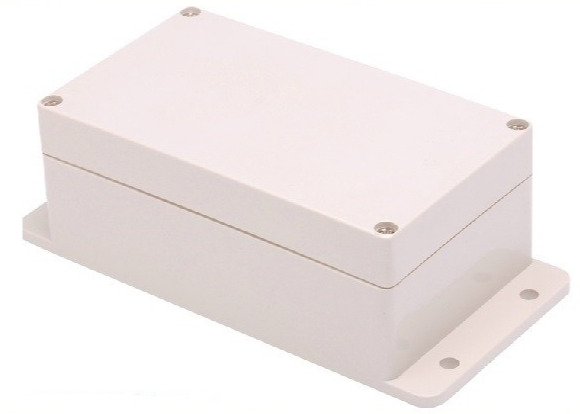

Waterproof 158*90*64mm Abs Plastic Electrical Junction Box

158*90*64mm IP65 abs electrical waterproof wall mounted plastic box Company

Specifications

1. Material :ABS,PC,or ABS+PC with flame retardant.
2. IP65 rating
3. Operating Temperature:-40℃ to 80℃
4. Bosses on internal base allow fixing PCB horizontally or connection of terminals ,etc into threaded brass
5. Higher intensity, and more durable.
6. Batter waterproof and Anti-corrosion performance ,protect your instruments even under adverse environment,
7. Color and material can be changed as your requirement
8. Certain modification can be done according to your requirements. Such as drilling ,painting ,punching ,silk-screen ,printing and etc ,
9. Your design is welcome

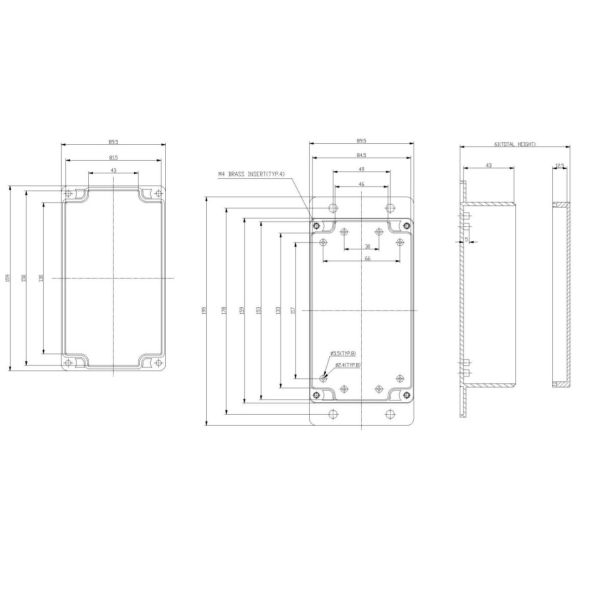

Reference Drawing

Other sizes

Custom Services

1, Change Color, Materail to PC or flame retardant

2, Drill holes

3, Silk Screen

4, Install terminal block

5, Connecting cable gland

6, Install metal/plastic wall mount

7, Developing new moulds

AnBox Electric Co,. Ltd, specializing in design, production and sale various of equipment cases, waterproof boxes, aluminum enclosures, PCB housing, junction boxes, terminal boxes, custom enclosures. etc, our boxes are widely used in automotive, posts and telecommunications, communications, construction, electronic, coal, aerospace, defense, surveillance systems, medical equipment, instruments and meters, LED displays, cable TV ,etc.

AnBox Electric Co,. Ltd is devoting to providing the professional solutions for your electronics, from sample order, logo printing, modification, assembly, custom design, large production to shipping services.

Our waterproof enclosures offer both indoor and outdoor solutions for your watertight application. A variety of accessories are available for the waterproof enclosures, including internal plates, cable glands, and vents.
