| Categories | Finger Joint Shaper |
|---|---|
| Brand Name: | Easwon |
| Model Number: | MHZ1532S |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
| Delivery Time: | 15 days |
| Packaging Details: | wooden case |
| Model: | MH1532S |
| Max. jointing length: | 3200mm |
| Max. jointing width: | 150mm |
| Max. jointing thickness: | 80mm |
| Total motor powre: | 5.2kw |
| Condition: | New |
| Warranty: | 1 year |

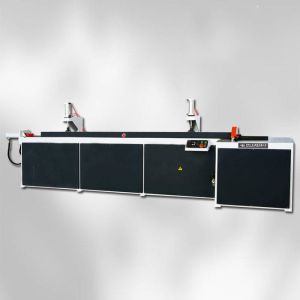

| Technical specification | Unit | MH1532S | MH1546S |
| Max. jointing length | mm | 3200 | 4600 |
| Max. jointing width | mm | 150 | 150 |
| Max. jointing thickness | mm | 80 | 80 |
| Max. jointing force | kg.f | 7000 | 7000 |
| Saw blade diameter | mm | Ø305 | Ø305 |
| Saw blade speed | r/min | 3550 | 3550 |
| Sawing motor power | kw | 2.2 | 2.2 |
| Motor power | kw | 3 | 3 |
| Air source pressure | MPa | 0.5-0.6 | 0.5-0.6 |
| Voltage | v | 380 | 380 |
| Overall dimension | mm | 4658x994x1383 | 6058x994x1383 |
| Net weight | kg | 420 | 520 |
Contact details:
Linyi Ruixiang Import & Export Co.,Limited
Tony Zhuang
Sales manager
Mobile: +86-15153984859
E-mail: easwonintlco@gmail.com
Skype: seasilkroad
|
