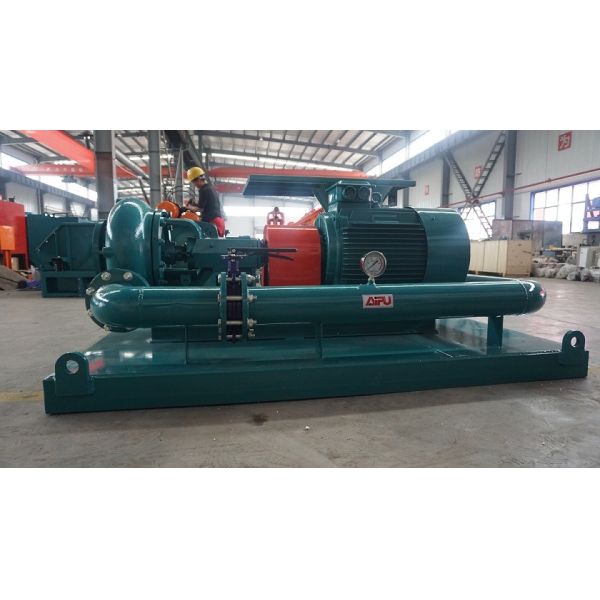

Explosion Proof 45Kw 200m3/H Gas Drilling Jet Mud Mixer

Power 45Kw Treating Capacity 200m³/h Jet Mud Mixer with 6" Venturi Hopper

Jet mud mixer APSLH150-40, treating capacity up to 200 cubic meters per hour. The motor is 45Kw explosion-proof. The motor brand is DAZHONG, a famous brand in China, with high quality, stable performance, and good service. Head is 35 meters. Inlet Dia. 150mm, and nozzle Dia. 40mm. We propose to use this model to drilling fluids that compounding density lower than 1.6g/cm³ and compounding viscosity less than 120s.

Centrifugal pump of jet mud mixer

Pump is 6x5, horizontal type. Pump body seal is reliable mechanical seal. there are vertical centrifugal options as well. The difference is motor installation direction and pump feed inlet position.

Jet mud mixer specifications

How to select the jet mud pump

Mud hopper pump capacity is defined by mud hopper size and pump. For example, the hopper including 4'' or 6'' port one. And the diameter is 400mm-700mm. For pump, the normal type for mixing hopper including APSB8X6, APSB6X5 and APSB5x4 driven by 75HP, 50HP, 30HP motor. The flow rate is about 400-1200GPM. To select proper mixing pump, please consider the flow rate of the whole mud system. Almost of clients prefer Venturi hopper to the swirl hopper because of high capacity and dust-free design. Furthermore, the Ventri hopper is more compact than swirl hopper

Different configuration on jet mud mixer

In almost mud system, the mixing hopper pump is set at end of mud tank. They are assembly of hopper, pump, skid. In some system, there are 2 complete set of mixing pump. That means 2 hoppers and 2 centrifugal pump. For some clients, they prefer the separated mixing skid in a frame. The hopper can be in a separated frame or just a single hopper connected with all lines input and discharge. The pipings connected with mixing pump including the input line, discharge line, some are fit with T port for convenient mud transfer among tanks and compartments

In a complete mud system, how many sets mixing pump do we need? It's depending on mud flow rate of whole system. And the mixing pump can be assembled together with shearing pump we call it jet shearing pump. Furthermore, different users prefer different configuration on mud system. The mixing pump skid can be fit only one mixing hopper pump, or 2 sets of mixing hopper pump. And usually the 2 sets of mixing pump work simultaneously for sufficient fluids productivity

Besides the oil well drilling, mud mixing pump is widely used in HDD mud recycling system. The difference is usually the HDD mud mixing pump smaller than oil drilling one.
