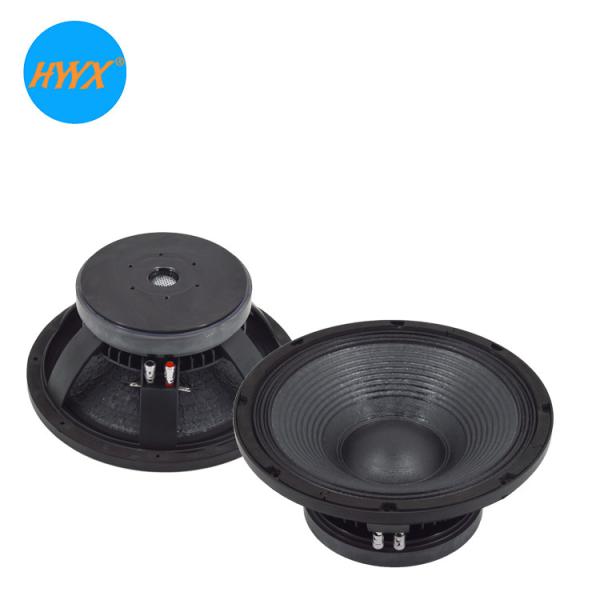

4khz 8Ohm 12 Inch Midbass 98dB Coaxial PA Speaker

Categories Coaxial PA Speaker
Place of Origin: Guangdong, China
Brand Name: HYYX
Model Number: HYW-1275-075A
Supply Ability: 5000 Piece/Pieces per Week
Packaging Details: 1. Plastic bags + Inner box + master carton 2. The boxes could be customized with logo
MOQ: 10 Piece/Pieces
Price: $27.50 - $38.50 / Piece
Type: 12 inch woofer speaker
Frequency Response: 48Hz-4KHz
Sensitivity(1w/1m): 98dB
Nominal Impedance: 8 Ohms
Rated Power: 400W
Max power: 800W
Basket material: Die-casting aluminium
Cone material: Paper
Voice coil diameter: 75mm/3 inch
Magnet material: Ferrite
Power: 400W
Frequency Range (Hz): 48hz-4khz
Dimension (L x W x H): 12 inch
Port: Huangpu, Nansha
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4khz 8Ohm 12 Inch Midbass 98dB Coaxial PA Speaker

12 inch woofer speaker professional bass speaker 12 inch 350Wrms

Product Description


Features :


- 12 inch quality woofer speaker

- 800W continuous program power capacity, 400W RMS power handling

- 98dB sensitivity
- 8 ohms available
- 48hz-4khz frequency response
- 3" high temperature voice coil
Specification
Nominal diameter
300/12
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Frequency response
48-4k
Hz
Magnet size
190x20
mm
Magnet material
Ferrite
Sensitivity (1w/1m)
98
dB
Nominal power handling
400
Watts
Continuous power handling
800
Watts
Voice coil diameter
75/3
mm/ inch
Winding material
CCAW
Cone material
Paper
Surround material
Cloth
T/S Parameter
Fs
48.8
Hz
Re
5.2
Ω
Qes
0.2453
Qts
0.2352
Qms
5.73
Vas
78.7
L
Rms
2.93
kg/s
Cms
0.19
mm/N
Mms
54.86
gr
BL
18.9
N/A
Mounting information
Overall diameter
312/12.28
mm/inch
Bolt Circle diameter
295/11.6
mm/inch
Baffle Cutout diameter
285/11.2
mm/inch
Total Depth
138/5.4
mm/inch
Shipping information
Net weight
6.7
KG
Shipping weight
7.8
KG
Shipping box
330x330x180
mm
Our Company

Company Profile

Since our establishment in 2009, we have been committed to manufacturing high-quality audio products, including professional audio speakers, car audio speakers, speakers with cabinets and power amplifiers. Since then, Huiyin Audio Co., Ltd. has had a complete high-quality supply chain, an excellent management team, and the ability to provide our customers with good service and high-quality products at a good price! Instead, the company introduced a series of advanced equipment such as automated production lines, high-efficiency magnetizers, impact testing machines, and temperature testing machines. To maximize, we obtained CE certification in 2012. The enterprise will be gradually developed in 2017.

We are willing to customize the speakers and amplifiers required by customers to suit their market. OEM and ODM orders are welcome.
Committed to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure complete customer satisfaction. When we cooperate with well-known Chinese brands, our products are also exported to customers in North America, South America, Europe, Asia, Africa and Africa and Oceania and other countries and regions. Whether it is selecting the current product from our catalog or seeking the help of an engineer to manufacture other ideal speaker models, please contact our customer service center or send an email to us. We want to establish a long-term business relationship with you.


Packing & Delivery
FAQ

1.Q: Are you a factory ?
A: Yes, We are professional manufacturer who focus on quality speakers so that we could build long time business with customers.

2.Q: What's your products range?

A: Pro audio speaker, car audio speaker and home audio speaker .

3.Q: Can I get some samples?
A: Yes, we could provide samples and ship samples by DHL, EMS, FedEx or by sea .

4.Q: What's the payment method ?
A: T/T , Western union and PayPal.

5.Q: Can you print our logo on the speaker and packing?
A: Yes , we would like to do it for your OEM orders .

6.Q: Could you build speakers based on customer's design ?
A: Yes , customized order is welcome .

7.Q: Do you accept small order ?
A: Yes, small quantity order is accepted because we have most speakers in stock for this kind of trade.
8.Q : How to make a deal with you ?
A :
Step 1: Choose the speakers you are interested in based on seller's quotation or catalogs (Buyer)
Step 2: Tell the quantity you need or your requirements (Buyer)
Step 3: Quote and calcualte cost to you (Seller)
Step 4: Pay 30% or 50% as deposit through T/T, Western union or PayPal (Buyer)
Step 5: Produce, QC , pack and ship speakers to you by sea or air ( Seller )
Step 6: Receive goods ( Buyer )
